Kia Sportage 2013 Repair Manual Set – 2.0T & 2.4L

The engine-specific volumes let you match fuel-system tests and transmission procedures to the installed powertrain, with chassis and body information included in each volume.

Electrical schematics appear within the relevant component chapters. A separate full-vehicle Electrical Wiring Diagram volume is not included.

Text Search, Chapter Bookmarks, and Diagram Detail

Search and schematic detail: Both PDFs are partially searchable and have chapter bookmarks. Text within image-based diagrams and scan-tool screenshots is not searchable. Small schematic labels need zooming; some fine smart-key details remain hard to read even when enlarged.

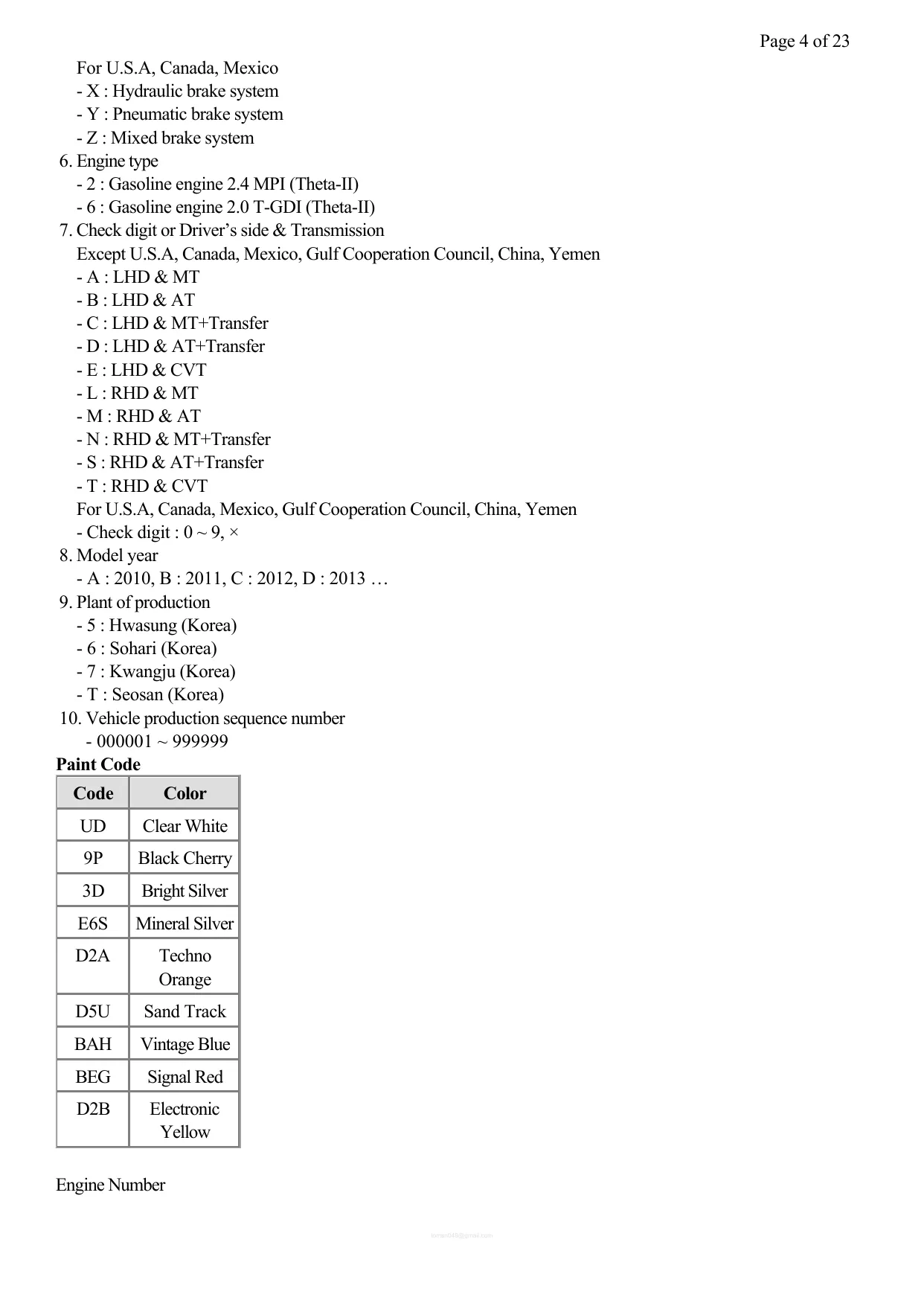

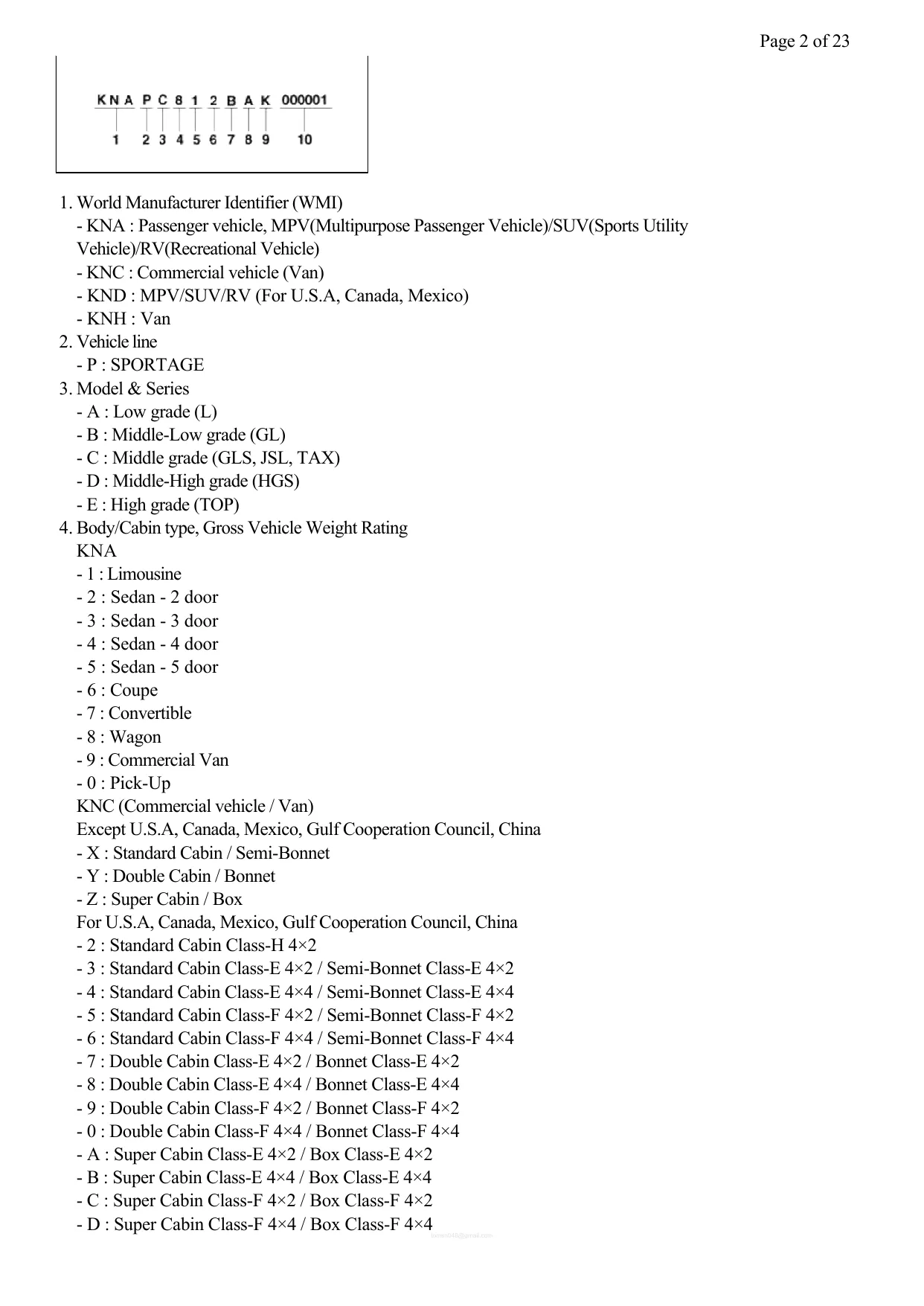

The ZIP contains two printable English PDFs with 2,992 pages total, plus a reader installer and a short text file.

Engine, Driveline, and Vehicle-System Repair

This is a selection of covered work. Further topics include PCV-valve checks and EVAP canister service.

• Engine mechanical repair: Step-by-step engine/transaxle removal and installation, timing-chain installation, valve-clearance adjustment, cylinder-head and block service, balance-shaft work, cooling, and lubrication repair.

• Fuel and boost systems: Fuel-pressure diagnosis, injector service, and turbocharger/intercooler repair, with separate procedures for MPI fuel delivery and T-GDI boost controls.

• Transaxles and clutch: Automatic-transaxle removal and installation, fluid and valve-body service, control-system diagnosis, plus manual-transaxle removal and hydraulic-clutch repair for the MPI version.

• 4WD driveline: Transfer assembly, propeller shaft, rear differential, electro-hydraulic coupling, actuator motor, pressure sensor, and 4WD ECU inspection and replacement procedures.

• Chassis and restraints: Disc and parking brakes, ESC, electric power steering, suspension, wheel alignment, TPMS, airbags, and seat-belt pretensioners, with component inspection and replacement information.

• Heating and air conditioning: Compressor and refrigerant-line service, manual and automatic controls, sensor testing, and heater/blower actuator procedures.

• Body electrical systems: BCM functions, fuse and relay centers, lighting, power windows and locks, smart key/immobilizer diagnosis, parking assist, and audio/AVN service.

The component-level procedures, scan-tool operations, and internal engine measurements suit professional technicians and experienced owners who already have the required lifting, diagnostic, and safety equipment.

Powertrain Coverage by Configuration

T-GDI fuel and boost control: The turbo volume distinguishes low- and high-pressure fuel diagnosis and covers the rail-pressure sensor, electric wastegate actuator, and recirculation-valve controls. Injector combustion-seal work uses guide and sizing tool 09353-2B000; high-pressure fuel-pipe service uses socket 09314-3Q100.

MPI intake and clutch service: The other volume details the Variable Charge Motion Actuator and Variable Intake Solenoid. Its clutch chapter includes disc and cover inspection, master-cylinder and concentric-slave-cylinder service, pedal checks, and hydraulic bleeding.

Special-tool references include timing-chain tensioner ratchet holder 09240-2G000 for the MPI engine and clutch-disc guide 09411-32000. Seal installers, a valve-spring compressor, fuel-pressure adapters, pullers, and alignment tools are identified for the applicable work.

Automatic-Transaxle Controls and 4WD Setup

Hydraulic descriptions explain the oil pump, valve body, and clutch/brake elements. Control information adds TCM terminal data, input/output speed sensors, the oil-temperature sensor, and individual solenoid tests.

GDS procedures cover DTC clearing, adaptive-value reset, and TCM learning after the specified transmission or valve-body work. The 4WD replacement instructions distinguish clutch-learning reset after coupling replacement from transfer of existing learning data when replacing the controller.

Starting, Charging, and Electronic Diagnosis

Starter-circuit troubleshooting and alternator output/voltage-drop tests support no-crank and charging complaints. Starter instructions extend to disassembly, armature and brush checks, overrunning-clutch inspection, and reassembly.

Diagnostic material combines symptom charts, connector views, pin tables, test conditions, and sensor waveforms. Illustrations include the 4WD ECU/actuator/pressure-sensor circuits, automatic-transaxle clutch-and-brake flow diagram, TCM solenoid and speed-sensor schematics, ECM connector tables, BCM/smart-key circuits, and ESC/SRSCM schematics.

Electronic setup includes smart-key and remote-key teaching, immobilizer/ECM replacement functions, and power-window initialization. Brake-control information covers EBD and DBC as well as ESC; restraint procedures include the SRSCM.

Body Service and Repair Cautions

Body dimensions support panel assessment, alongside procedures for doors, glass, trim, seats, bumpers, and the panoramic roof. Reference material supplies component torque tables, approved fluids and capacities, wear limits, clearances, electrical test values, and troubleshooting specifications.

For T-GDI work, the manual identifies injector combustion seals and high-pressure fuel pipes as single-use parts and warns that incorrect high-pressure-pump positioning can break its mounting bolts.

On the MPI manual clutch, a reversed disc can interfere with and damage the concentric slave cylinder.

Engine lifting, pressurized fuel, brakes, SRS, and refrigerant work require suitable shop equipment and the safety precautions specified for each task.

Sample Oil-Temperature and Clutch-Pedal Specifications

For both A6LF2 and A6MF1 automatic transaxles, the oil-temperature sensor table lists 2.51 kΩ at 20°C (68°F) and 0.32 kΩ at 80°C (176°F). These temperature-dependent values accompany the sensor-testing information.

For the 2.4L M6GF2 clutch, the pedal free-play service standard is 6–13 mm. The same chapter provides pedal-height, stroke, and clutch-disc inspection specifications.
