Kia Optima 2006–2008 Repair Manual Collection

Use the year-specific repair articles alongside the matching component-location and circuit pages when tracing a fault; the repair illustrations are credited to Kia Motors America, Inc. Several sections overlap between editions, and some articles are duplicated.

Application differences: The repair articles identify Optima EX and distinguish G4KC-GSL and G6EA-GSL engines. The older owner’s manual and MS cabin-filter article cover separate applications; they are not substitutes for the later repair information.

Damaged file: The separate 2006–07 2.7L DTC PDF cannot be opened. Its dedicated V6 fault-code procedures are unavailable in this download.

PDF Search, Navigation, and Download Contents

Search and navigation: The 2006–07 service PDFs have no text search. The 2008-folder PDFs have searchable text, with image-based diagram labels excluded. The older owner’s manual is searchable and is the only PDF with section bookmarks. Small wiring labels require zooming; ABS circuit detail is coarser.

ZIP download with 104 PDF files: 103 readable, printable PDFs and one damaged PDF. The 4,047 readable pages include three opening pages in the owner’s manual and 74 heading or figure-caption pages in the 2008-folder wiring volume.

Engine, Driveline, and Vehicle-System Repair

These selected repair topics are not a complete contents list. Additional articles include interior-trim replacement and windshield removal and installation.

• Engine and timing: Compression testing, valve-clearance adjustment, cylinder-head repair, short-block rebuilding, four-cylinder chain service, and V6 timing-belt and camshaft-chain work.

• Fuel and engine controls: OBD-II information, electronic-throttle tests, ECM/PCM terminal data, fuel-pressure diagnosis, and PCV, evaporative-emissions, and ORVR system information.

• Transmission and clutch: Automatic-transaxle DTC diagnosis and hydraulic diagrams, transaxle removal and installation, shift-control adjustment, self-adjusting clutch service, and concentric-slave-cylinder bleeding.

• Brakes and stability control: ABS/ESC circuit checks, scan-tool-assisted bleeding, wheel-speed-sensor tests, brake-booster diagnosis, disc and pad inspection, and parking-brake adjustment.

• Steering and chassis: Steering-gear disassembly, pump-pressure testing and bleeding, front-strut service, rear-suspension repair, hub-bearing work, and driveshaft-joint disassembly.

• Electrical diagnosis: Starter-circuit troubleshooting, starter and alternator disassembly and inspection, charging tests, fuse and relay checks, component locations, and system wiring diagrams.

• Heating and A/C: Refrigerant recovery, evacuation and charging procedures, compressor-clutch inspection, heater-core replacement, actuator tests, and automatic-climate-control self-diagnosis.

The repair procedures are suited to professional technicians and experienced engine builders because they assume precision measuring tools, scan equipment, an engine stand, a hydraulic press, and model-specific service tools.

Mechanical Diagnosis and Engine Rebuilding

The mechanical troubleshooting charts separate misfire with lower-engine noise, upper-valvetrain noise, coolant or oil consumption, startup-only noise, load-related knock, and mechanical no-crank conditions. Compression-test interpretation distinguishes ring or bore wear from valve or head-gasket problems.

Timing systems: Step-by-step instructions cover in-vehicle four-cylinder timing-chain work, balance-shaft timing, colored-link alignment, cover resealing, sealant cure periods, and final timing checks. The V6 material adds timing-belt tensioner work and separate bank-specific camshaft-chain alignment.

Cylinder heads: Head coverage adds MLA identification and tappet selection, valve-stem and guide inspection, spring checks, cam-lobe measurement, journal clearance, end play, CVVT lock-pin testing, and new-gasket, seal, and bolt requirements.

Short block: Plastigage checks, crankshaft journal and pin sizing, rod bend and twist, piston grading, ring side clearance and end gap, piston-pin fit, and cylinder boring and honing are documented.

Color-coded bearing charts cross-reference block, crankshaft, and connecting-rod marks. Reassembly views show piston and rod direction, ring-end positions, upper/lower bearing differences, thrust-bearing orientation, cap sequences, and ladder-frame and oil-pan sealing.

The engine/transaxle-removal articles cover subframe and driveshaft separation, harness and fluid connections, refilling, bleeding, and post-installation leak checks. M/T flywheel and A/T drive-plate provisions are identified separately.

Fuel, Electrical, and Transmission Fault Tracing

The four-cylinder DTC volume covers faults such as cam/crank correlation errors and misfire, with detecting conditions, connector checks, signal and power-circuit tests, waveform comparisons, component inspection, and repair verification.

Fuel-pressure charts distinguish low supply pressure, excessive pressure, injector leakage, and fuel-pump check-valve faults, helping relate a pressure-test result to the next diagnostic area.

Engine-control articles also describe ETC initialization and VIN programming after ECM replacement, including the associated scan-tool screens.

Automatic-transaxle material includes input/output voltage sheets, range-switch and speed-sensor tests, solenoid diagnosis, and scan-tool resetting after replacement. The manual-transaxle articles describe removal, installation, oil service, and cable adjustment. A complete internal transaxle overhaul sequence is not included.

Representative diagrams include the Engine Performance Circuit, Starting/Charging Circuit, ABS Hydraulic System Diagram, Automatic Transaxle Hydraulic Circuit Diagram, ECM Connector Function tables, and CVVT Retard/Advance views. Separate early- and late-production component-location articles support application-specific fault tracing.

Cooling, Lubrication, and Auxiliary Systems

Cooling coverage includes refill and air bleeding, radiator and cap pressure tests, thermostat inspection and orientation, and water-pump replacement. Lubrication articles add oil/filter service, oil selection, balance-shaft-module work, and oil-pressure-switch continuity and vacuum tests. Intake and exhaust procedures cover manifolds, gaskets, heat shields, oxygen-sensor connections, the front muffler, and catalytic-converter assembly.

The vehicle-system articles also cover TPMS sensor initiation and receiver setup, SRS module and impact-sensor replacement, clockspring inspection, and post-deployment component requirements. Automatic A/C diagnosis combines fault codes, live data, and sensor/actuator circuit checks rather than just control-panel removal.

Service Tools and Repair Cautions

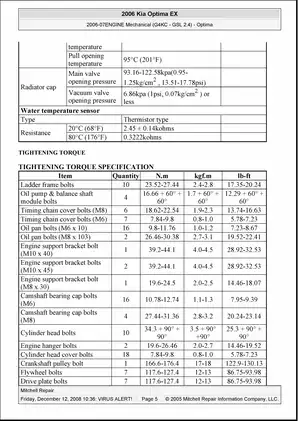

The four-cylinder tool table identifies torque-angle adapter 09221-4A000, valve-stem-seal installer 09222-4A000, valve-spring compressor and holder 09222-3K000 / 09222-3K100, and front oil-seal installer components 09214-3K000 / 09231-H1100. Component-specific torque tables include both conventional and angle-tightened fasteners.

The manual warns that loosening cylinder-head bolts out of sequence can warp or crack the head. It also identifies the drive-belt tensioner pulley bolt as left-hand thread, a detail that helps prevent fastener or pulley-thread damage during removal.

Powertrain removal involves refrigerant recovery, raised-vehicle and subframe work, and heavy engine/transaxle handling; cooling procedures involve hot, pressurized coolant. Use properly rated lifting, support, and recovery equipment, and follow the manual’s component-specific warnings, including its SRS precautions.

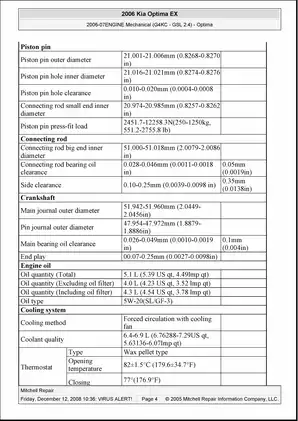

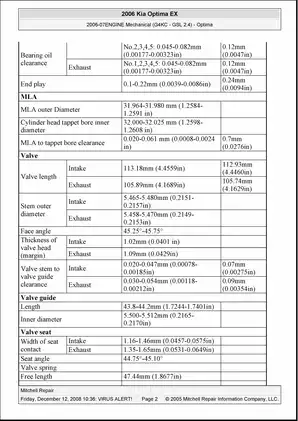

A Preview of Fuel-Pressure and ATF-Sensor Test Data

Fuel delivery: The 2008 G4KC-GSL fuel-pressure test specifies 338–348 kPa at idle, with diagnostic tables for low pressure, high pressure, and pressure loss after shutdown.

Automatic-transaxle sensing: The ATF temperature-sensor chart lists 8.1 kΩ at 20°C (68°F) and 1.08 kΩ at 80°C (176°F), providing reference points for temperature-related electrical diagnosis.
