Kia Sorento 2011 OEM Service Manual Set – 2.4L & 3.5L

Use the manual for your engine to match mechanical procedures, fuel-management information and ECM terminal data to the correct powertrain. Both include related 2WD and 4WD systems.

Diesel engines and later model-year systems are outside this set.

PDF Search, Bookmarks and Diagram Detail

Text access and diagram clarity: Procedures and tables have searchable text, while some diagram labels are embedded in images and cannot be searched. Both PDFs have chapter bookmarks. Small labels in some IPM schematics remain faint or blurred even when enlarged.

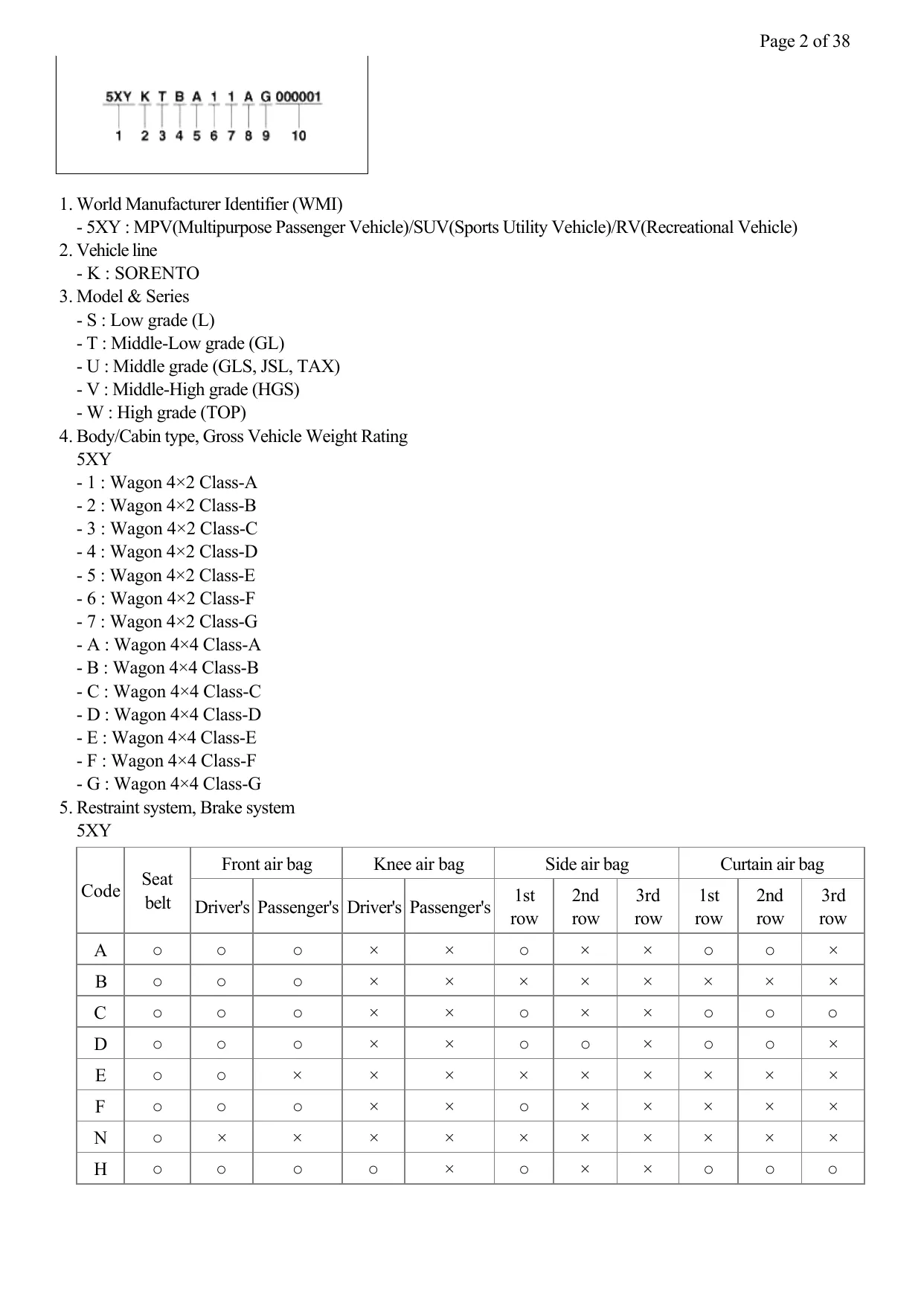

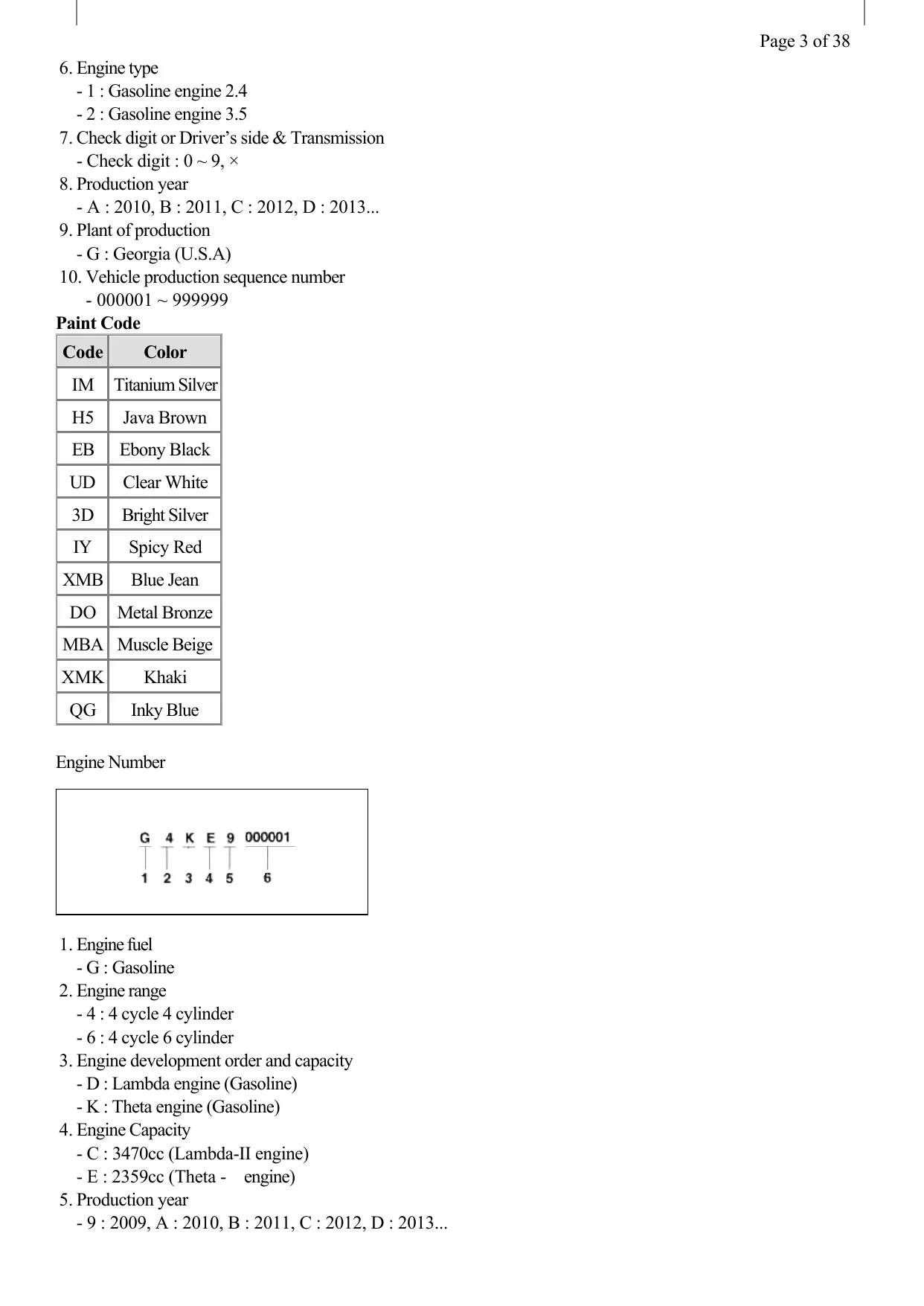

The ZIP download contains two printable English-language PDFs totaling 2,667 pages.

Engine, Driveline and Body-System Repair

The selected topics below are part of a wider workshop reference that also covers cruise-control troubleshooting and evaporative-emissions testing.

• Engine repair: Step-by-step engine/transaxle removal, timing-chain service, cylinder-head and block disassembly, inspection and reassembly, plus valve-clearance inspection and adjustment.

• Transaxles and 4WD: Automatic-transaxle fluid and valve-body service, manual-transaxle and clutch work, transfer assembly replacement, 4WD ECU terminal data and intelligent torque-controlled coupling (ITCC) service.

• Axles and differential: Front and rear hub service, driveshaft and propeller-shaft work, and rear-differential disassembly, reassembly and setup, supported by exploded assembly views.

• Brakes, steering and suspension: Disc and parking-brake repair, ESC/ABS/EBD/TCS/DBC troubleshooting, steering pressure testing and bleeding, suspension replacement, wheel alignment and TPMS service.

• Body and interior: Structural body dimensions and datum references, panel and door service, glass and panoramic-roof procedures, and seat and trim removal.

• Heating and air conditioning: Front and rear HVAC repair, R-134a recovery and charging, compressor and condenser service, and sensor and actuator testing.

• Electrical diagnosis: System schematics, connector views, terminal tables, operating-logic charts and troubleshooting procedures, including ignition, starting, charging and engine-control tests.

Suited to experienced repair technicians familiar with electrical testing and GDS diagnostics, with access to the specified measuring equipment and service tools.

Engine and Fuel-System Detail

Engine-mounting, cooling, lubrication, intake and exhaust procedures accompany the internal-engine work. Fuel-pressure testing, ECM input/output specifications and GDS checks of crankshaft/camshaft signals support tracing running faults before selecting replacement parts.

On the 3.5L timing drive, the manual distinguishes RH and LH chains when original timing marks have faded. It also warns that incorrect crankshaft rotation can disengage a chain from its sprocket.

Transaxle Variants and Differential Setup

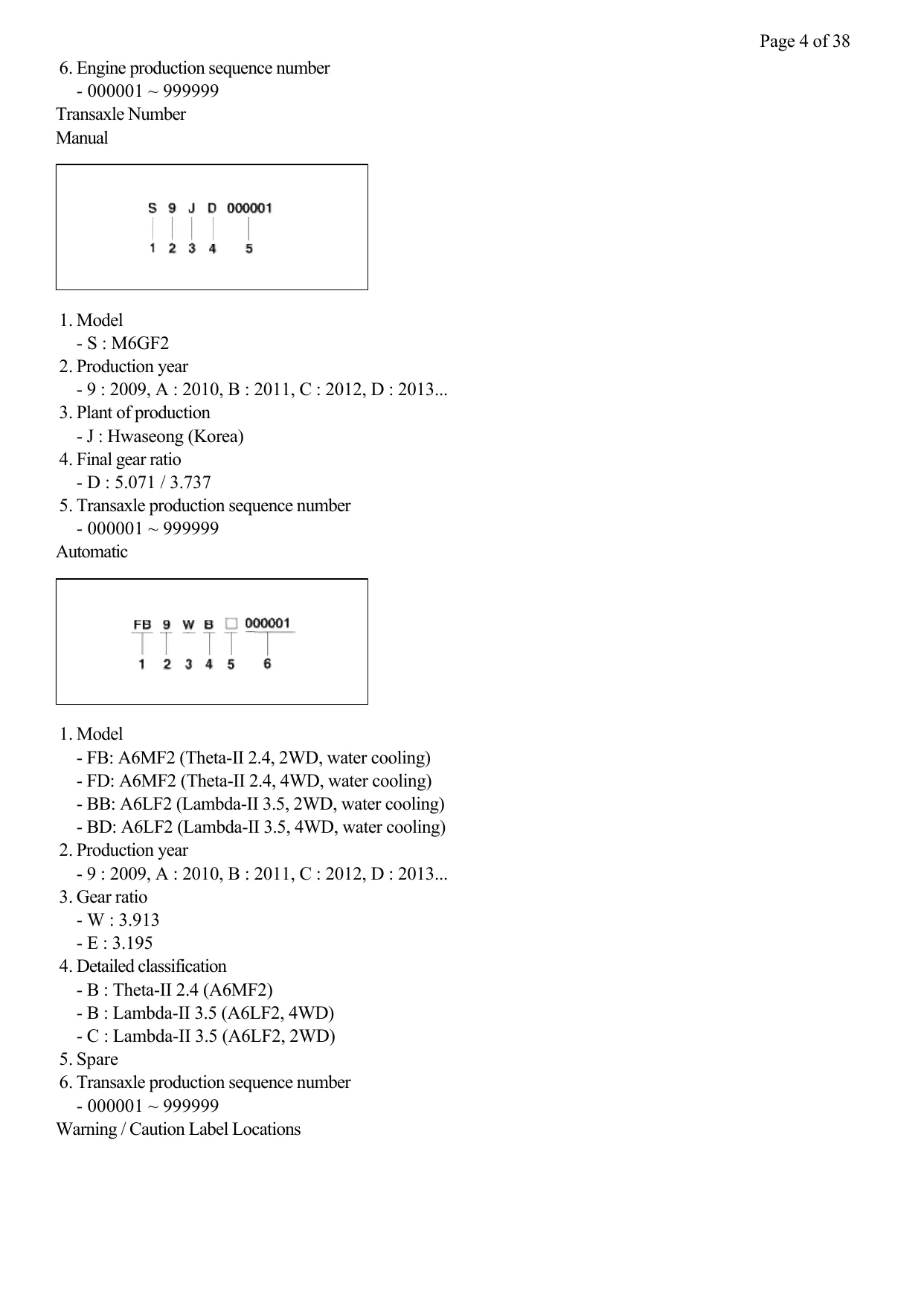

The 2.4L manual covers the M6GF2 and clutch hydraulics alongside the A6MF2 automatic; the 3.5L manual covers the A6LF2. Automatic chapters include TCM learning and speed, temperature and range-sensor data, but not a full internal clutch-pack and geartrain overhaul.

Solenoid installation cautions address O-ring damage from inadequate lubrication. Rear-differential setup instructions preserve bearing-cap matching and specify replacement of the pinion spacer.

Electrical Diagnosis and Module Setup

Each manual contains a 381-page body-electrical chapter. BCM/IPM functions, smart-key and immobilizer systems, and push-button start/PDM coverage are supported by system schematics and operating charts.

Other sections address fuse and relay boxes, the instrument cluster, lighting, locks, windows, mirrors and wipers. Parking assist, the backup camera, audio/navigation and rear-seat entertainment are also included.

Reference examples include 4WD ECU connector/terminal views, TCM terminal maps and solenoid operating charts, ECM connector schematics, ESC/HECU circuitry, BCM/IPM timing charts and SRS schematics. Component locations and circuit data support electrical fault tracing.

SRS procedures cover the SRSCM, ODS, impact sensors, airbags, clock spring and seat-belt pretensioners. GDS procedures include SRSCM variant coding after module replacement and steering-angle calibration.

TPMS coverage includes sensor ID writing and receiver setup.

Specifications, Special Tools and Shop Safety

Component-specific torque tables, fluid specifications, pressure-test data, wear limits, clearances and wheel-alignment values accompany the procedures.

Special-tool references include the 09200-38001 engine support fixture, 09411-25000 clutch-disc guide, 09353-24100 fuel-pressure gauge and 09572-21000 power-steering pressure gauge. Timing, seal-installation, valve-spring and SRS deployment tools are also referenced.

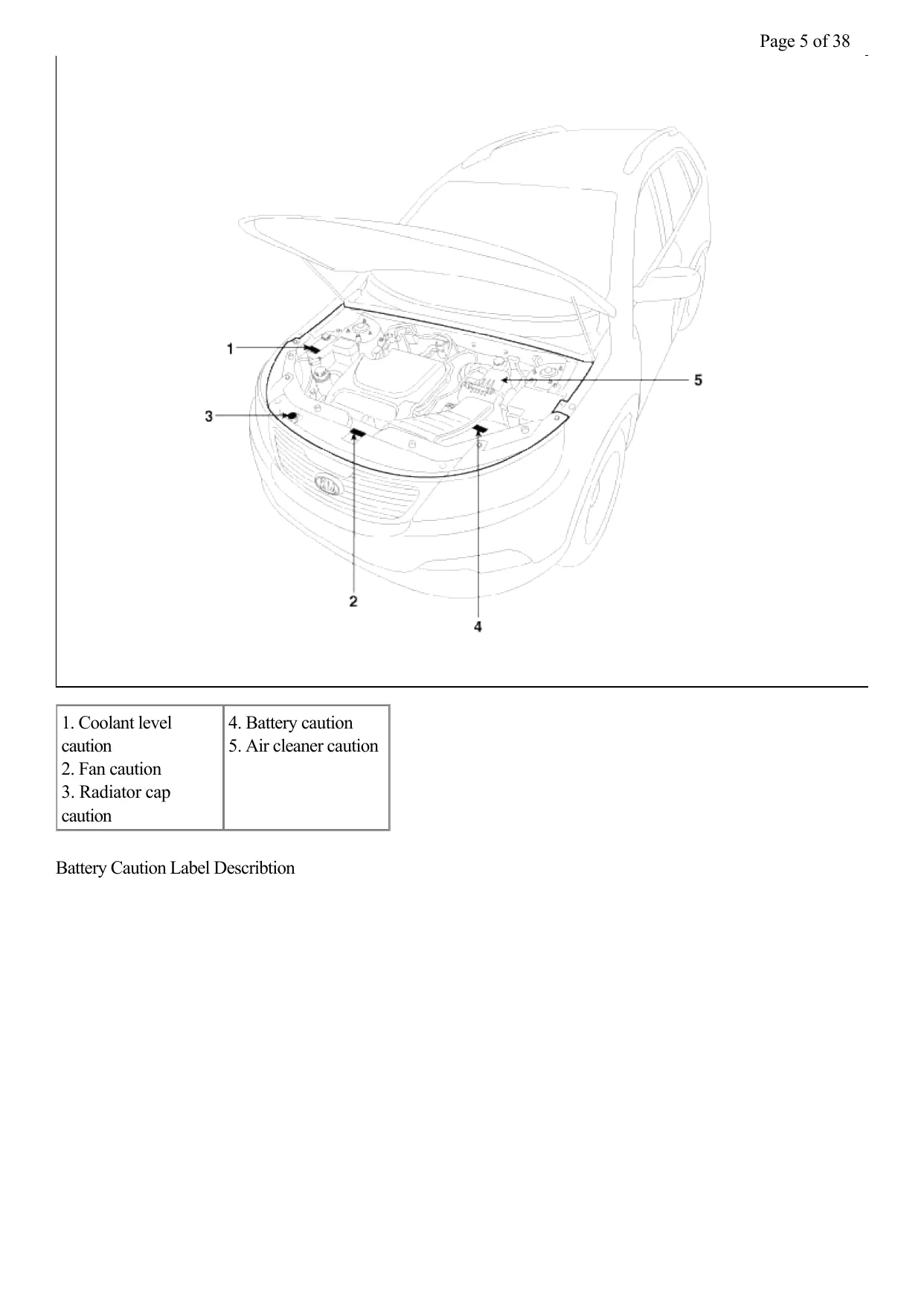

Safety information covers battery isolation, pressurized fuel and cooling systems, refrigerant handling, SRS deployment precautions, approved lifting and towing points, and other system-specific warnings. These sections should be reviewed before beginning repair work on the affected assembly.

A Preview of Solenoid Resistance and Differential Backlash

A6MF2 and A6LF2 solenoid tables specify 5.1 Ω for the variable-force solenoids and 10–11 Ω for the SS-A/SS-B on/off solenoids. The accompanying operating charts relate their operation to transmission range and gear.

Rear-differential reassembly data gives a standard ring-gear-to-drive-pinion backlash of 0.10–0.15 mm, alongside shim-adjustment and tooth-contact-pattern guidance.
