Kia Rio SX, LX 2006–2008 Service & Repair Manual

Service and repair reference for the Kia Rio SX and LX, covering the G4ED 1.6L CVVT engine and manual/automatic transaxles. The cover is labeled 2006–2008; service chapters are dated 2006–07, while the component-location and wiring references are dated 2006.

Text Search, Bookmarks and Diagram Detail

Navigation and illustration limits: The service and wiring pages do not support text search; embedded bookmarks navigate the sections. Small wiring labels require zooming. Some SRS and transmission figures show unrelated components, making those mismatched drawings unsuitable as assembly or circuit-test references.

One printable, 1,255-page PDF, including a one-page cover, 1,196 pages of service and electrical-reference chapters, and a 58-page wiring chapter.

Engine, Transaxle and Electrical Service

These selected coverage highlights outline the main repair areas. Further topics include rear-window heater-grid repair and steering-column/universal-joint service.

• Engine repair: G4ED 1.6L CVVT engine removal, step-by-step timing-belt service, cylinder-head repair and internal engine inspection.

• Automatic transaxle: DTC diagnosis, hydraulic pressure and stall testing, control-system inspection, and transaxle removal and installation.

• Manual transaxle: M5CF1 disassembly and reassembly, synchronizer inspection, bearing adjustment and differential repair.

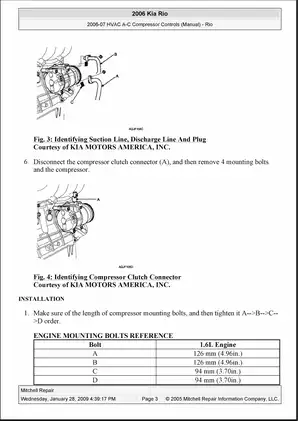

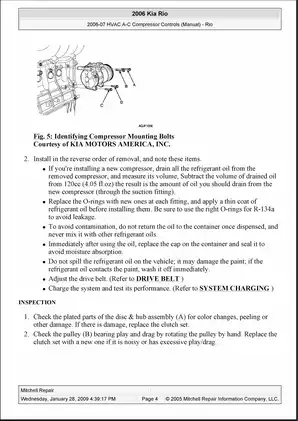

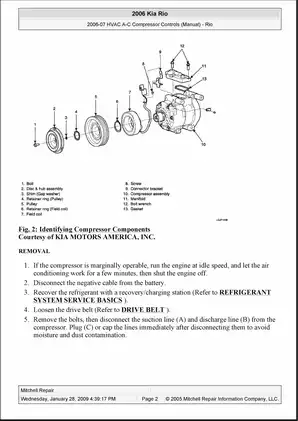

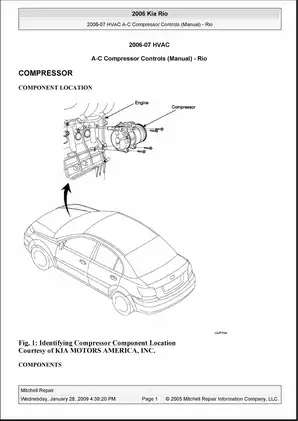

• Climate control: Compressor and clutch service, condenser and evaporator-sensor replacement, blower service, and refrigerant recovery, evacuation and charging.

• Airbags and restraints: Driver, passenger, side and curtain airbag procedures, with SRS fault tables and terminal-level harness testing.

• Brakes and driveline: Front/rear disc and rear drum repair, hydraulic clutch service, driveshaft work, and hub/bearing procedures.

• Body and electrical systems: Wiring diagrams, starter/alternator testing, door and glass repair, plus power-lock and window diagnosis.

This reference suits technicians experienced in mechanical repair and electrical troubleshooting; restraint-system diagnosis requires scan equipment and dedicated airbag dummy adapters.

Engine, Timing and Fuel Diagnosis

The engine material includes CVVT assembly inspection, hydraulic lash adjuster diagnosis, oil control valve and filter service, valve-guide replacement and valve-seat reconditioning. Crankshaft and connecting-rod bearing selection tables accompany clearance checks, while piston and cylinder measurements support internal inspection.

Cylinder-head cautions explain how an incorrect bolt-loosening order can warp or crack the head. The cylinder-boring notes specifically exclude oversizing the 1.6 CVVT.

Cooling and lubrication procedures cover thermostat testing, radiator leak checks, coolant refilling and bleeding, and oil-pump inspection. Fuel-pressure and pressure-retention charts help distinguish filter or regulator faults from leaking injectors and a pump check valve that fails to hold pressure.

Automatic and Manual Transaxle Work

Automatic-transaxle diagnostic routines connect fault conditions with fail-safe operation, input/output speed signals and solenoid tests. Control-system procedures add line- and reducing-pressure adjustment, fluid-temperature sensor checks, range-switch adjustment and learning reset.

Installation cautions identify incorrect torque-converter positioning as a cause of transaxle oil-seal damage.

M5CF1 overhaul extends to input/output shafts, synchronizer hubs and sleeves, shift forks and differential gears. Spacer and snap-ring selection tables address bearing end play and gear clearances; separate service procedures cover shift-cable adjustment and the clutch release system.

Climate Control and SRS Diagnosis

A/C pressure-transducer tables connect sensor output with compressor and cooling-fan control. Evaporator-sensor tables document temperature-dependent resistance. Receiver-drier desiccant replacement, refrigerant-line work, leak detection, blower-resistor tests and fresh-air/recirculation actuator checks are also covered.

Restraint diagnosis includes seat-track position sensors, buckle switches, impact sensors, belt pretensioners and occupant classification. SRSCM terminal-function tables accompany open-circuit, short-circuit, supply-voltage, communication and warning-lamp faults. Hi-Scan Pro procedures address code retrieval, clearing and repair verification.

Airbags and pretensioners contain pyrotechnic devices. The safety precautions distinguish harness testing with dummy adapters from prohibited resistance measurements directly across an airbag squib.

Brake, Body and Wiring References

Brake documentation provides conventional and ABS specifications, booster checks, proportioning-valve pressure references, hydraulic bleeding and friction-component wear limits. Body procedures cover door glass and regulators, latch and striker adjustment, windshield replacement, interior trim and sunroof initialization.

The wiring chapter separates 1.6L Engine Performance circuits for A/T and M/T applications. Manual A/C, Computer Data Lines, Ground Distribution, Supplemental Restraints and Transmission diagrams document their respective connections.

Equipment-specific drawings distinguish daytime running lights, amplified audio and rear power windows. Rio/Rio5 component-location tables identify connectors, grounds, relays and sensors. Starting and charging chapters include starter and alternator disassembly and electrical testing.

Repair Tables and Special Tools

Reference tables provide tightening torques, lubricant specifications, fluid capacities, wear limits and electrical test criteria. Tool references include compressor-clutch tool 09977-29000, clutch alignment tool 09411-25000 and differential oil-seal installer 09452-21200.

Selected Compression and Evaporator-Sensor Specifications

For the G4ED 1.6 CVVT, the warm-engine compression specification is 1,422 kPa (206 psi) at 250–400 rpm; the stated minimum is 1,275 kPa (185 psi).

The evaporator temperature-sensor table lists 8.000 kΩ at 0°C (32°F), providing a temperature-specific reference for sensor inspection.
