Lamborghini Murciélago 2001–2003 Repair Manual Set

1,632 Pages • ZIP Download: 5 Printable PDFs (English)

4.5starstarstarstarstar_half(2)
$23.60 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Lamborghini Models Covered & Key Technical Specifications

Models: Murciélago (engine: L 535), Murciélago Roadster (press information only)

Sub-models / Variants: Coupé, Roadster, 6-gear manual transmission (standard: no prefix; low gear ratio: C prefix), e-gear automatic (Roadster press information only)

Trade Names: Murciélago, Murciélago Roadster, Lamborghini

Model Years: 2001–2003 (2001, 2002, 2003)


  • Engine displacement: 6192 cc

  • Engine configuration: 12-cylinder 60° V

  • Maximum power: 426 kW (580 PS) at 7500 rpm

  • Maximum torque: 650 Nm at 5400 rpm

  • Compression ratio: 10.7:1

  • Transmission: 6-speed manual, permanent 4-wheel drive

  • Weight distribution: 42% front / 58% rear

  • Overall length: 4580 mm

  • Overall width: 2045 mm (rearview mirrors closed)

Lamborghini Manual Features & Selected Content Preview

Publication Pages

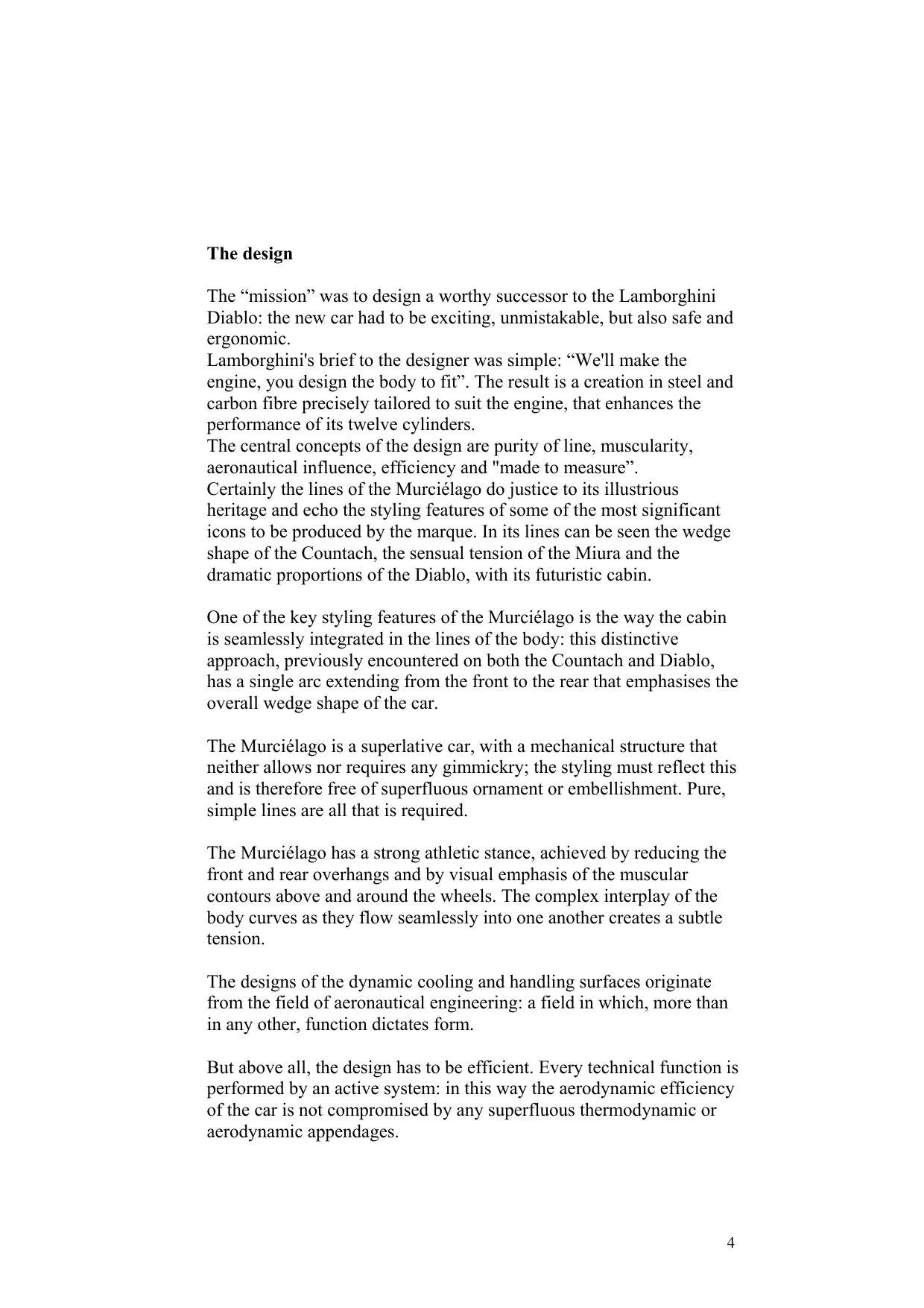

Workshop repair manual — Murciélago 2002 text; USA MY2003 cover 509
Murciélago parts catalog — 12/2003 205
Wiring schematics — USA, MY2002-3, MT; 12/2004 321
Historical parts inventory and price list 545
Technical-document launcher 1

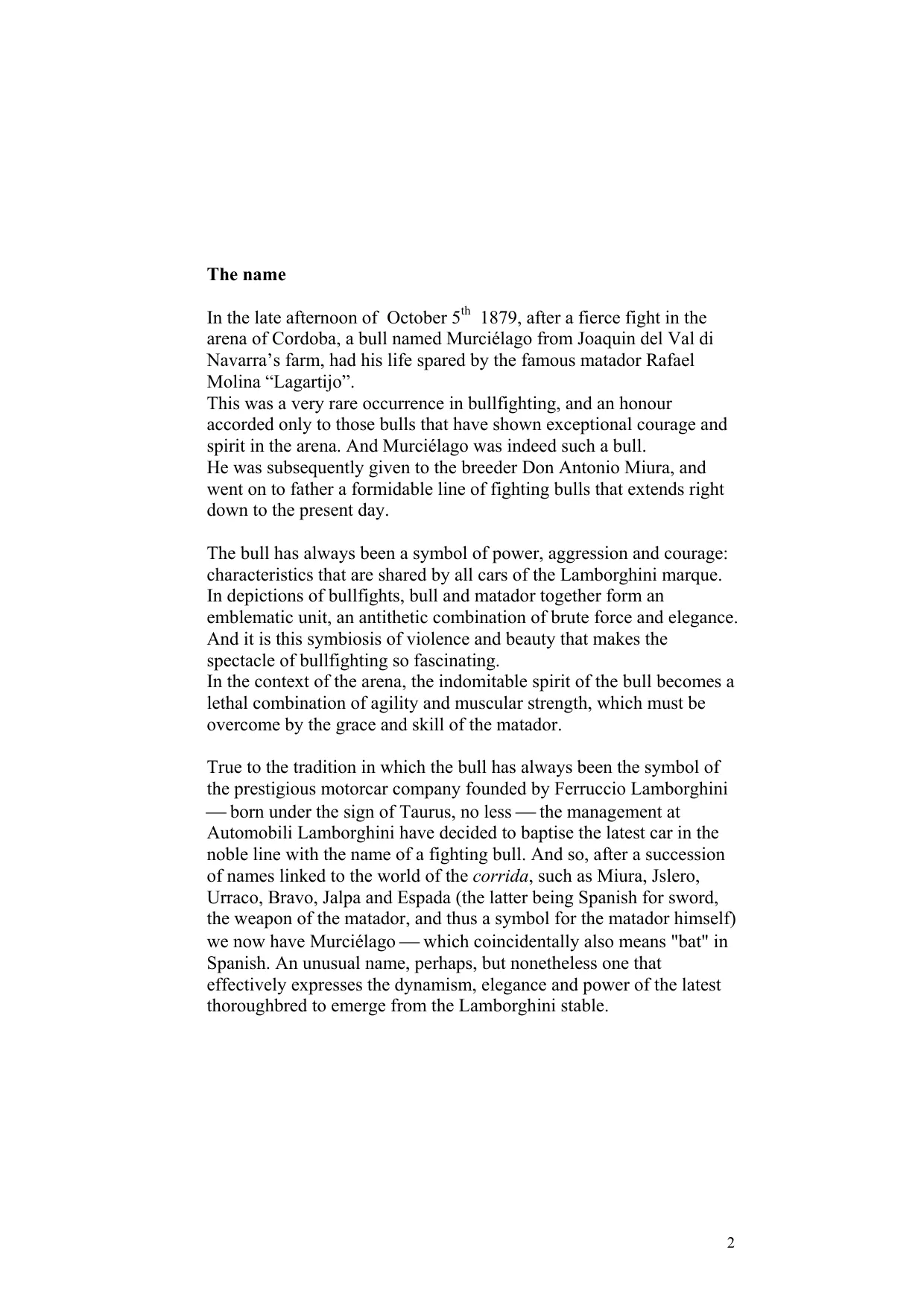

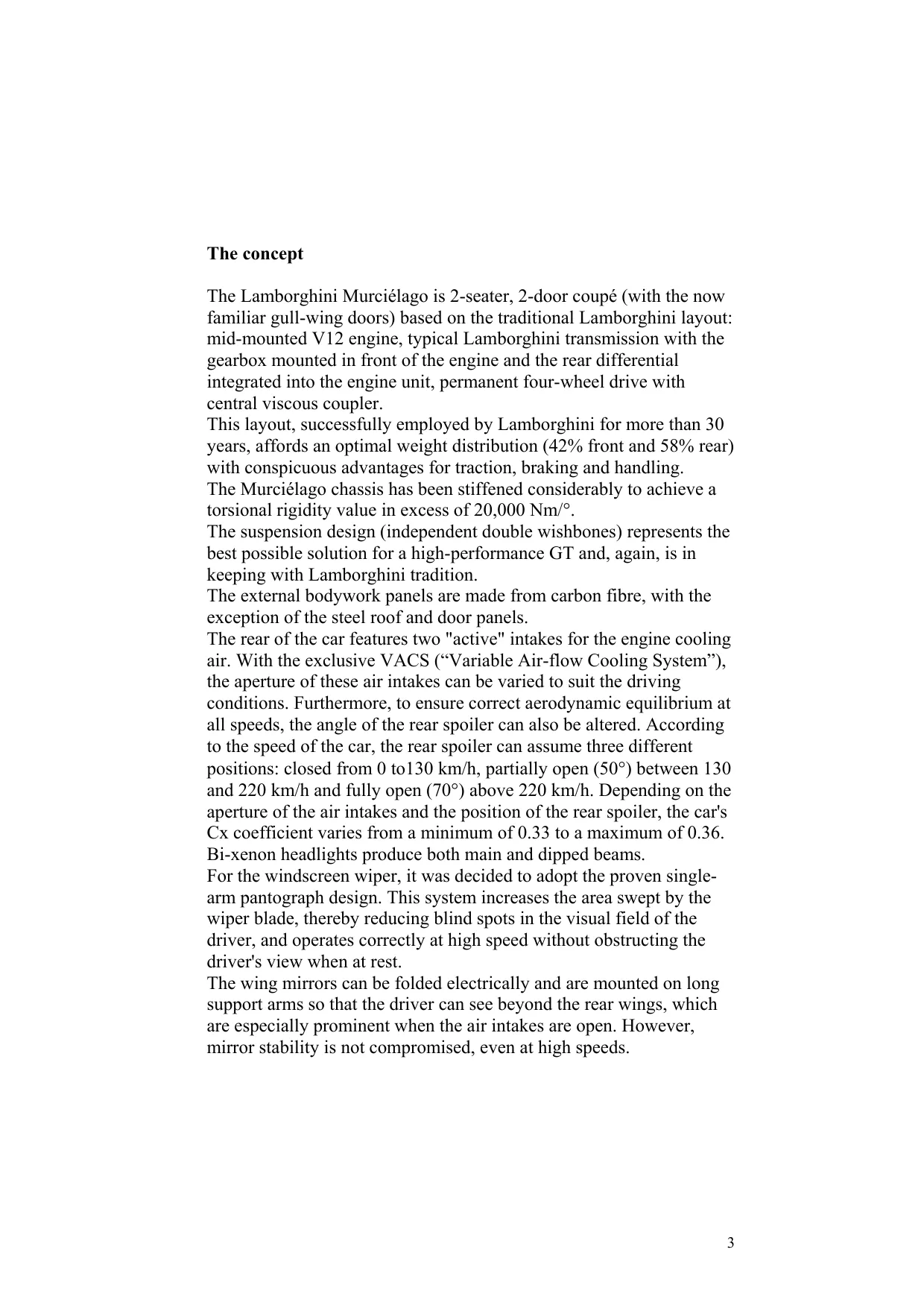

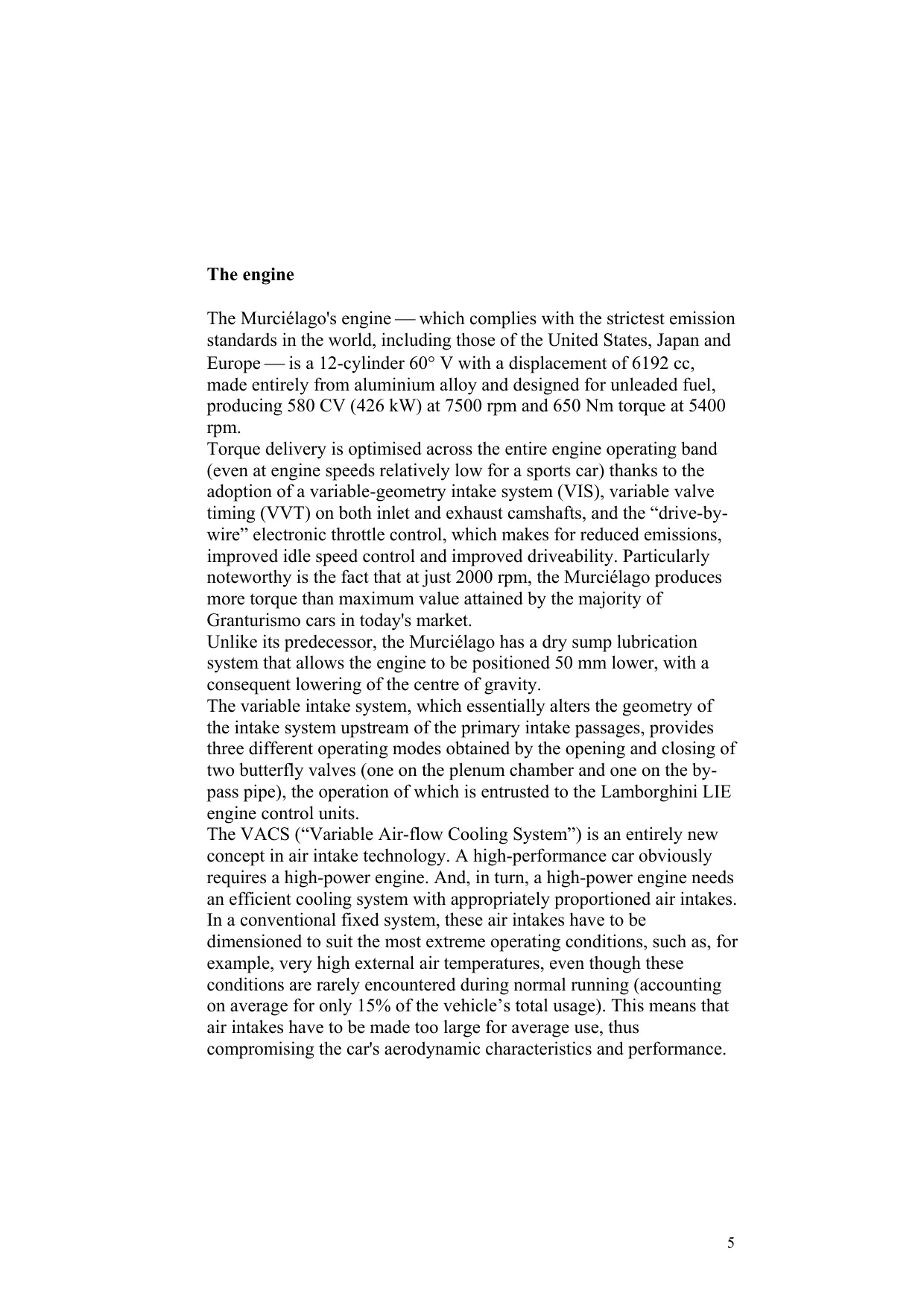

Original Murciélago highlights booklet 16
Murciélago Roadster — Geneva Show 2004 press release 6
Production-milestone press release — April 2006; document code AL 09/2006 ENG 2
Los Angeles Auto Show 2006 press kit — Murciélago LP640 and Gallardo material 27

The repair chapters, exploded parts views and electrical drawings work together as references for identifying assemblies, tracing circuits and selecting the relevant workshop procedure. The highlights and press publications provide model background.

Repair scope: The workshop material covers the early L 535 V12 and six-speed mechanical configuration, including standard and C-prefixed low-ratio transmissions. Roadster, e-gear, LP640 and Gallardo material in the additional publications is press information rather than matching repair coverage.

PDF Search, Bookmarks and File Contents

Text search and drawing detail: Workshop text and schematic headings are searchable. Parts-catalog OCR has recognition errors, and most labels inside drawings are not searchable. Small wiring labels are best read with zoom.

The technical PDF has section and parts-group bookmarks, including some incorrect destinations. The highlights booklet has searchable text and bookmarks; the other three PDFs have searchable text but no embedded bookmarks.

The ZIP contains five printable English PDFs totaling 1,632 pages: a 1,581-page combined technical PDF and four additional publications totaling 51 pages. Launcher, cover and image pages are included in these totals. A separate WMV race/promotional video runs approximately 7 minutes 50 seconds.


Powertrain Repair and Vehicle-System Diagnosis

The following is a selected content overview. Other topics include engine-oil and filter service, coolant changes and water-pump replacement.

  • Engine and powertrain: Step-by-step removal and installation, cylinder-head and timing-cover work, timing-chain and oil-pump service, crankshaft and piston/connecting-rod overhaul, valve-clearance inspection, cam timing and timing-sensor adjustment.

  • Clutch and driveline: Dry single-plate clutch removal, thrust-bearing replacement, pedal adjustment and bleeding; gearbox removal, teardown, overhaul, reassembly and shift-control adjustment; front and rear differential setup.

  • LIE diagnostics: LDAS32 and OBD II procedures, live-data displays, idle and accelerator-pedal adjustment, actuator commands, fault codes and troubleshooting tables.

  • Brakes and ABS: Brake-pad replacement, caliper removal, ABS unit replacement, bleeding, disc inspection, wheel-speed-sensor checks and hydraulic/electrical functional testing.

  • Suspension and steering: Suspension geometry and ride-height adjustment, hydraulic lifting-system maintenance and KONI damper diagnosis.

  • Climate control: R134a recovery/refilling, RESET procedures and control-panel tests for the display, buttons, sensors, actuators, compressor and fan.

  • Airbag system: SDM diagnosis, event-memory interpretation, control-unit reset and component replacement procedures.

Lamborghini identifies shop foremen and maintenance personnel as the manual’s users and requires skilled repair personnel familiar with high-performance vehicles. The material suits equipped specialist shops and experienced technicians.

Engine and Driveline Overhaul

Powertrain removal calls for a vehicle lift, a hoist with a four-chain sling and two people. Internal engine, gearbox and differential work assumes precision measuring equipment and model-specific fixtures.

Differential procedures address bearing preload, pinion height and crown-wheel/pinion clearance. The internal planetary gearsets are treated as replacement assemblies rather than individually rebuildable units.

The special-tool register identifies the P/N 962195007 clutch-centering tool, P/N 62495083 gearbox-tooth adjustment tool, and pinion-height tools P/N 62395068 for the front differential and P/N 62395054 for the rear.

Reference sections provide component torque specifications, fluid and capacity data, fits, clearances, wear and acceptance limits. Chassis and electrical sections add suspension geometry, pressure checks, electrical test information and adjustment values.

LIE Control and Factory Diagnostic Functions

The 100-page engine-control chapter explains fuel and ignition management, DBW, VIS/VVT, VACS/PMC, TCS, anti-evaporation systems and exhaust monitoring.

The LDAS32 MAP Strip display compares intake-manifold pressure between cylinder banks, supporting bank balancing alongside the fault-code information. The documented VIS/VVT output-control function carries a specific Lamborghini Technical Bulletin enablement requirement.

Parts, Wiring and Electrical Precautions

The parts catalog has 100 bookmarked exploded assembly groups with reference numbers, part numbers, descriptions, quantities, version fields and notes. The historical inventory can support part-number cross-reference; its prices and availability statements are archival.

Wiring examples include EL01 Power Supply, EL02 Ground Location, EL05 CAN Line Diagnosis, EL10 Koni System, EL13 ABS/TCS System and EL15 A/C System.

The electrical chapter warns that makeshift probes can damage connector contacts and that welding without isolating the LIE, GFA, PMC, ABS, KONI and climate-control units risks controller damage.

Chassis Testing and Specialist Service

KONI diagnosis includes connector-voltage checks that distinguish damper faults from wiring faults. The ABS full test checks system operation after service; stored errors and troubleshooting tables support fault diagnosis. The special-tool register lists the P/N 964300002 airbag/ABS diagnostic interface.

The ABS chapter warns against separating the electronic and hydraulic portions of the control unit; contamination and incorrect hose connections can compromise the assembly.

Climate-control RESET applies when a control unit is connected to a different system. Airbag removal and installation are assigned to skilled, experienced personnel authorized by Lamborghini.

Vehicle lifting, pressurized suspension, refrigerant and airbag work require the workshop equipment and safety controls specified in the manual.

Selected Engine Clearances and Oil-Pressure Data

The valve-adjustment section specifies cold clearances of 0.35 mm intake and 0.50 mm exhaust. Internal-engine inspection data includes a crankshaft axial-clearance range of 0.155–0.315 mm.

Lubrication reference data for the hot engine at 90°C gives oil pressure of 1.5–2.5 bar at 1,000 rpm and 5–7 bar at 6,000 rpm. These ranges accompany the dry-sump lubrication-system description.
