Victory Models Covered & Key Technical Specifications

Models: Hammer, Hammer S, Vegas Jackpot, Ness Signature Series Vegas Jackpot

Models & Model Codes:

Hammer — V08HB26CA, V08HB26CAP, V08HB26CC, V08HB26CCP, V08HB26CD, V08HB26CE, V08HB26DA, V08HB26DAP, V08HB26DC, V08HB26DCP, V08HB26DD, V08HB26DE, V08HB26LA, V08HB26LAP, V08HB26LC, V08HB26LCP, V08HB26LD, V08HB26LE, V08HB26UA, V08HB26UE

Hammer S — V08HS26CB, V08HS26DB, V08HS26LB, V08HS26UB

Vegas Jackpot — V08XB26CA, V08XB26CAP, V08XB26CC, V08XB26CCP, V08XB26CE, V08XB26CEP, V08XB26CJP, V08XB26CKP, V08XB26DA, V08XB26DAP, V08XB26DC, V08XB26DCP, V08XB26DE, V08XB26DEP, V08XB26DJP, V08XB26DKP, V08XB26LA, V08XB26LAP, V08XB26LC, V08XB26LCP, V08XB26LE, V08XB26LEP, V08XB26LJP, V08XB26LKP, V08XB26UK

Ness Signature Series Vegas Jackpot — V08BC26CM, V08BC26CN, V08BC26DM, V08BC26DN, V08BC26LM, V08BC26LN, V08BC26UM, V08BC26UN

Sub-models / Variants: CND (Canada), 49st (Domestic/49 State), CA (California), UK (United Kingdom), Solid Black, Midnight Cherry, Steel Gray, Boardwalk Blue, Black / Silver, Sunset Red, Ness Metallic Purple, Turbo Silver, Premium, Standard

Trade Names: Freedom 100/6

Model Year: 2008


  • Engine type: Freedom 100/6 V-Twin, 50° SOHC Transverse, 4-stroke

  • Engine displacement: 1634 cc / 100 cubic inch

  • Transmission: 6-speed overdrive, constant mesh

  • Oil capacity: 4.75 Liters (5.0 Quarts) dry

  • Oil drain plug torque: 20 Nm (15 ft-lbs)

  • Spark plug: NGK DCPR6E

  • Spark plug torque: 11 Nm (8.5 lb-ft)

  • Throttle body bore size: 45 mm

  • Main circuit breaker: 40 amp

Victory Manual Features & Selected Content Preview

This Victory factory service manual, P/N 9921247, covers the 2008 Hammer, Hammer S, Vegas Jackpot, and Ness Signature Series Vegas Jackpot, including CND (Canada), 49-state, California, and UK model-code listings.

Searchable Text, Bookmarks, and Wiring Sheets

Text access and diagram detail: The main manual text is searchable, with embedded bookmarks for chapters and individual procedures. Most small labels on the final wiring and harness sheets are outside the searchable text layer. Small pin numbers and wire-color codes require zooming.

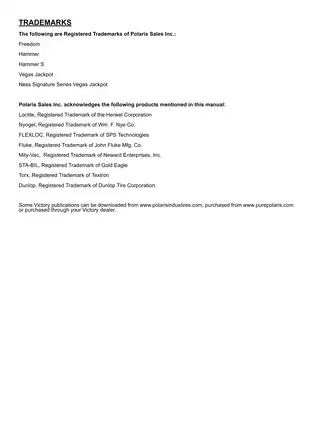

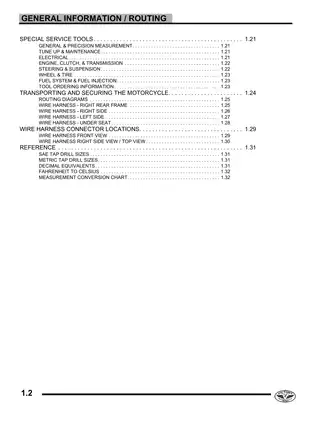

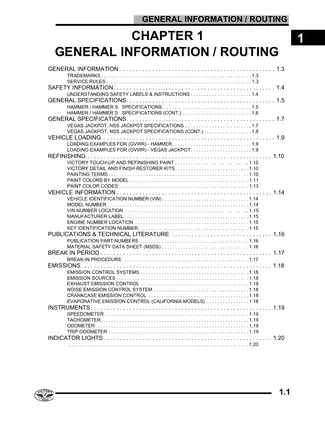

Supplied as one printable 476-page PDF, including the two opening foreword/trademark pages, nine notes pages, the index, and three wiring/harness-reference sheets.


Engine Rebuilds, EFI Testing, and Chassis Repairs

These selected service topics show the repair coverage. Other sections address seat and fender removal and exhaust-system service.

  • Engine repair: Step-by-step air/oil-cooled Freedom 100/6 engine removal and installation, cylinder-head and valve-train disassembly, cylinder and piston inspection, and crankcase separation.

  • Clutch and transmission: Wet multi-plate clutch repair, gear-driven primary and torque-compensator service, shift-mechanism work, and six-speed overdrive transmission inspection and reassembly.

  • Closed-loop EFI: Fuel-system depressurization, pump and injector service, pressure and current-draw testing, sensor diagnostics, blink/fault codes, and PCM connector checks.

  • Chassis and suspension: Model-specific fork service, steering-head adjustment, wheel-bearing replacement, cast and chrome swingarms, rear suspension, and cable or hydraulic clutch controls.

  • Brake service: Single- and dual-disc systems, pad and disc inspection, master-cylinder and caliper repair, fluid replacement, and bleeding procedures.

  • Final drive: Carbon-fiber-reinforced belt inspection, alignment, frequency-based tensioning, and front and rear sprocket removal, inspection, and installation.

  • Electrical and shop references: Charging, ignition, starter, and lighting diagnosis; torque tables, capacities, pressure and electrical test specifications, inspection limits, assembly views, and harness routing.

Victory wrote this manual primarily for its service technicians in a properly equipped shop; internal-engine, machining, and electronic-diagnostic work assumes mechanical theory, precision-measuring skills, and the specified tools.

Internal Engine Repair and Lubrication

Cylinder heads and pistons: The cam-timing references distinguish front and rear cylinders. Valve and seat inspection, cam-chain tensioners, piston-ring checks, and a piston-to-cylinder clearance worksheet support internal inspection. The Ni/Sil-plated cylinders cannot be reconditioned by boring or honing.

Crankshaft and transmission: Crankshaft procedures include color-coded connecting-rod bearing selection and main-bearing inspection. Transmission shaft, gear, and shift-fork checks accompany balance-shaft service and crankcase sealing.

Tools and machining: References include the PV-48736 crankshaft rotation tool, PV-43502-A engine lock tool, PV-47332-A crankcase separator, and PV-45030/PV-46299/PVX-47429 assembly tooling. Main-bearing replacement requires line boring; valve-guide and seat reconditioning requires dedicated equipment and cylinder-head machining skills.

Lubrication and cooling: The dual-gerotor pump has separate lubrication and cooling circuits. The Oil Flow Diagram, relief-valve inspection, pump removal, disassembly, measurement, and assembly, and oil-cooler service support diagnosis. Lubrication-pressure testing and cooling-flow inspection are treated separately.

Digital Wrench and PCM Diagnosis

Digital Wrench material includes live-data screens, saved service reports, TPS sweeps, calibration identification, and PCM reprogramming. It identifies Diagnostic Tool Kit PV-46085 and Smart Link Module Kit PU-47471. TPS calibration is not required for this closed-loop system.

Diagnostic software, interface hardware, and dealer-site authorization are separate requirements for the programming workflow described. The PCM Connector Map supports circuit checks; connector-testing cautions explain how ordinary meter probes can spread terminals and introduce new faults.

Fork, Wheel, and Brake Differences

Premium configurations carry a P model-number suffix; equipment can include billet wheels, an HID headlamp, or a chrome package.

Hammer models use inverted cartridge forks; Jackpot models use conventional forks, with separate disassembly and assembly procedures. The single-disc Jackpot and dual-disc Hammer front brakes use different master cylinders, making the model-specific assembly views relevant when selecting repair parts.

Rear-suspension coverage includes linkage and swingarm bearing work, shock removal and installation, and ride-height adjustment. The rear shock is not serviceable internally. Brake service and elevated-wheel work require the manual's fluid-handling and motorcycle-support precautions.

Electrical Fault Tracing and Harness References

Symptom-based starter charts distinguish a no-crank fault from an engine that cranks but will not start, helping the reader select battery, cable, ignition, or fuel-system checks. The Ignition System Test Flowchart and Starter Circuit Diagram accompany charging-output, stator, regulator/rectifier, and voltage-drop tests.

Chassis and engine wiring sheets, connector views, and the Engine Harness Splice Location drawing support harness tracing. Auto-cancel turn-signal self-diagnostics and LED tail-light tests are included. The tail-light section warns that direct battery power can permanently damage the LED lamp.

Fuel Pump Test Specifications: A Preview

The fuel-pump pressure inspection lists 49 psi, measured with the engine running or during the key-on pump cycle.

The current-draw test specifies a maximum of 5 DC amps, with the tank fully installed and fuel covering the pickup screens. High- and low-pressure troubleshooting charts identify pump, regulator, line, vent, and filter checks.
