2008 Victory Vegas, Kingpin, and 8-Ball Service Manual (P/N 9921242)

This Victory factory service manual (P/N 9921242) covers the 2008 Vegas, Vegas Low, Vegas 8-Ball, Kingpin, Kingpin Tour, and Kingpin 8-Ball.

Supplied as one 483-page PDF.

• Engine repair: Engine removal, camshaft timing, crankcase separation, engine compression testing, cylinder-head inspection, and valve seat reconditioning.

• Clutch and transmission: Multi-plate clutch pack replacement, cable and hydraulic clutch controls, torque compensator service, and internal transmission inspection.

• Fuel injection: Closed-loop EFI, powertrain control module and idle air control diagnostics, fuel-pump testing, sensor checks, and Digital Wrench procedures.

• Suspension and steering: Conventional Vegas and inverted cartridge Kingpin front fork rebuilds, steering-head service, wheel bearings, and swingarm bearing replacement.

• Brakes and tires: Hydraulic brake bleeding, master-cylinder and brake caliper service, disc inspection, tire mounting, and wheel balancing.

• Electrical troubleshooting: Charging-system tests, starter fault isolation, ignition diagnosis, auto cancel turn signal module self-diagnostics, and chassis and engine wiring diagrams.

Written primarily for Victory service technicians in a properly equipped shop, this manual assumes mechanical knowledge and access to the specified tools for advanced repair work.

Engine Repair, Lubrication and Drivetrain

Powertrain variants: The specifications distinguish the Freedom 100/6 from the 8-Ball models' Freedom 100/5. Separate transmission assembly views cover the six-speed and five-speed layouts.

Internal repair coverage extends to the balance shaft, starter torque limit clutch, and crankshaft and connecting-rod inspection. The manual provides shift drum and shift fork assembly views, a piston-to-cylinder clearance worksheet, and component-specific torque data.

Workshop access: Internal transmission repairs require engine removal and crankcase separation, while clutch service can be performed with the engine in the frame.

The hydraulic lifters and cam chain adjusters require no routine adjustment. Lubrication and cooling coverage addresses the air/oil-cooled engine, oil cooler, lubrication and cooling gerotors, relief valves, oil-pressure testing, and cooling-oil flow checks. Tables provide oil-pump clearances, service limits, fluid capacities, and periodic maintenance intervals.

EFI Diagnosis and PCM Programming

The Fuel Pump Circuit Diagram and PCM Connector Map support pressure, current-draw, and sensor-circuit tests. Testing at both the sensor and PCM harness helps distinguish a failed sensor from a wiring or connector fault before replacement.

Digital Wrench coverage explains current and logged faults, system-level blink codes versus more specific P-codes, and PCM reprogramming. The documented equipment includes diagnostic kit PV-46085 and Smart Link Module Kit PU-47471; software and interface hardware are separate from this PDF.

The reflash procedure distinguishes performance calibrations requiring dealer authorization from stock calibrations. TPS calibration is not required for the covered closed-loop system. Fuel-system drawings also distinguish 49-state venting from California evaporative-emission plumbing.

The connector precautions explain how ordinary meter probes can spread PCM connector sockets or damage the housing, creating an additional fault during diagnosis.

Forks, Rear Suspension and Brake Service

Model-specific fork procedures cover disassembly, inspection, seal replacement, and reassembly. Brake-line routing distinguishes footpeg and floorboard models.

Drive belt: Adjustment data distinguishes Vegas Low from Vegas/Kingpin and separates new drive systems from those already run in. Tire pressure tables support the wheel and tire service sections.

Rear shock: Coverage includes removal, inspection, spring preload adjustment, and replacement. The gas-pressurized damper is not rebuildable.

Charging, Starting and Lighting Circuits

Charging-system diagnosis covers stator output, regulator/rectifier testing, battery load checks, and voltage-drop tests. Starter and ignition troubleshooting flowcharts guide fault isolation.

Wiring documentation identifies fuse ratings for fuel pump, ignition, and lighting circuits, with routing diagrams for under-seat harnesses and frame rail paths.

The auto cancel module section explains the regulated LED tail-light circuit and warns that applying battery power directly to the LED will permanently damage it.

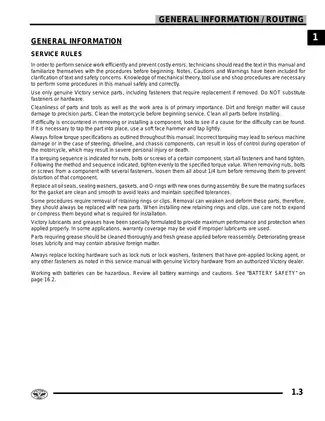

Working with motorcycle electrical systems and heavy chassis components carries inherent safety risks; review the factory precautions and torque sequences before starting a teardown.

File Format and Readability

The page total includes two opening pages, 464 pages across 19 chapters, a 14-page index section, and three large-format wiring/harness sheets. Notes pages and the blank index page are already included in those counts.

Text search: Main service text is searchable, but many diagram labels, including those on the final wiring sheets, are not searchable text.

Navigation: Embedded PDF bookmarks cover chapters, subsections, the index, and the final wiring and Engine Harness Splice Location sheets.

Diagram readability: Small labels on the large wiring sheets require zooming. The fuel-pump circuit diagram on printed page 5.18 has faint connector labels and partly obscured PCM labels.
