Victory Hammer S, Hammer 8-Ball, Vegas Jackpot, Vegas 8-Ball, High-Ball, Judge & Boardwalk Motorcycle Rider's Manual - 2014

Victory Freedom 106/6 V-Twin Rider's Manual - 2014 Edition

This technical documentation provides essential operational protocols and field maintenance procedures for the high-displacement Victory Freedom engine architecture. A critical uptime requirement is the precise calibration of the drive belt tension, which must be measured only when the system is at ambient temperature to prevent inaccurate deflection readings and premature sprocket wear.

Technical Applicability & Performance Configurations

Wide-Tire Chassis (250mm Rear)

• Victory Hammer S (2014)
• Victory Hammer 8-Ball (2014)
• Victory Vegas Jackpot (2014)
• Victory Ness Jackpot (2014)

Standard Cruiser Chassis (180mm Rear)

• Victory Vegas 8-Ball (2014)
• Victory High-Ball (2014)
• Victory Judge (2014)
• Victory Boardwalk (2014)

Engine Architecture Definition

• Victory Freedom 106/6 V-Twin (1731cc)

Operational Reliability & System Accuracy

• Execute specific break-in schedules during the initial 500-mile (800 km) interval to ensure optimal seating of reciprocating internal components.
• Adhere to the JASO MA oil standard to maintain the integrity of the wet multi-plate clutch and integrated 6-speed constant mesh transmission.
• Monitor diagnostic error codes through the multi-function display to identify Suspect Parameter Numbers (SPN) and Failure Mode Indicators (FMI) before system degradation occurs.

Document Metadata

• Print Number: 9924962
• Page Count: 110 Pages
• Primary Subject: Rider's Operational & Maintenance Manual

Technical Depth & Factory Benchmarks

• Engine Configuration: 4-Stroke 50° V-Twin, SOHC, 4 valves per cylinder with hydraulic lifters.
• Compression Ratio: 9.4:1.
• Fuel Induction: Electronic Fuel Injection with 45mm throttle body bore.
• Transmission Geometry: 6-speed overdrive with 0.87:1 final gear ratio.
• Electrical Capacity: 38-amp alternator output with 310 CCA battery requirement.

Visual Navigation Aids

• Component Localization: Detailed left and right side views identifying oil filter, drain plug, and fuse box coordinates.
• Control Interface: Handlebar area schematics for master cylinder and clutch lever freeplay points.
• Tire Wear Geometry: Visual indicators for wear bar limits and sidewall inspection.

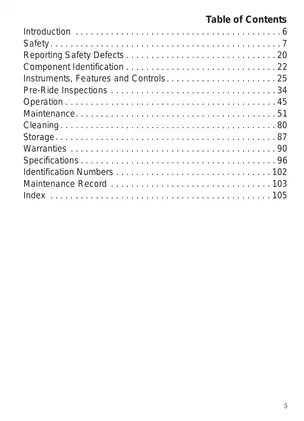

Table of Contents

• Introduction

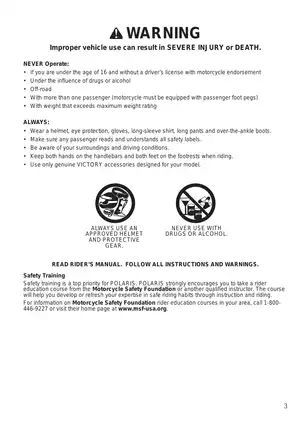

• Safety
• Reporting Safety Defects
• Component Identification
• Instruments, Features and Controls
• Pre-Ride Inspections
• Operation
• Maintenance
• Cleaning
• Storage
• Warranties
• Specifications
• Identification Numbers
• Maintenance Record

Operational Limits & Specifications

• Engine Lubricant: 20W-40 Semi-Synthetic (JASO MA); Capacity: 4.5 quarts (4.25 liters) at change.
• Ignition System: NGK DCPR6E spark plugs; Gap: 0.031–0.035 inch (0.8–0.9 mm).
• Torque Benchmarks:
  • Oil Drain Plug: 15 ft-lbs (20 Nm).
  • Rear Axle Nut: 65 ft-lbs (88 Nm).
  • Exhaust Header Flange: 12 ft-lbs (16 Nm).
  • Handlebar Riser Bolts: 22 ft-lbs (31 Nm).
• Drive Belt Deflection: 5mm +/- 0.5mm (New) or 6mm +/- 0.5mm (Post-500 miles) for standard models at 10 lbs force.
• Fuel Requirement: 91 Pump Octane Minimum (Unleaded).
