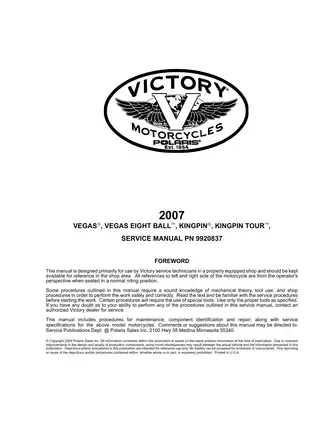

2007 Victory Vegas Eight Ball, Kingpin, and Kingpin Tour Service Manual (P/N 9920837)

• Official Victory OEM publication (P/N 9920837, Copyright 2006) covering the 2007 Victory Vegas, Vegas Eight Ball, Kingpin, Kingpin Tour, and Ness Signature Series.
• Contains 501 pages of technical schematics, exploded-view diagrams, electrical routing charts, and comprehensive torque specification tables.
• Provides the definitive assembly and maintenance reference for the 100-cubic-inch (1634 cc) Freedom V-Twin powertrain and chassis systems.

Documented Systems and Maintenance Data

The factory manual delivers an extensive breakdown of mechanical and electrical specifications. Major sections map out engine removal, cylinder head configurations, and crankshaft dynamics. Fuel injection diagnostics are clearly outlined for efficient troubleshooting. You will also find maintenance schedules covering lubrication intervals, air filter service, and precise drive belt tensioning. Specialized wiring diagrams trace complex circuits from the ECM and charging systems directly to the lighting and starter components. Working on heavyweight cruisers requires strict attention to detail. Before applying torque to engine components or servicing high-pressure hydraulic brake systems, always verify your equipment setup and wear proper protective gear to prevent severe injury. Further chapters detail front and rear suspension adjustments to support professional workshop standards.

Technical Specifications and Operational Values

The documentation lists critical performance metrics for the Freedom V-Twin. Engine oil pressure is specified at 552 kPa (80 psi) for lubrication and 414 kPa (60 psi) for cooling at 3000 RPM. Crankcase ventilation requirements and evaporative emission control setups are carefully documented for both standard and California models. You get precise torque values for primary fasteners, including the exact 20 Nm (15 ft-lbs) requirement for the oil drain plug. Belt deflection for a new drive system is set at a strict 10.0 mm +/- 0.5 mm. Finally, valve train and cam chain tensioner configurations are thoroughly described for the hydraulic lifter system.
