2012–2013 Victory Cross Roads / Cross Roads Classic / Cross Country / Cross Country Tour / Hard-Ball Service Manual (P/N 9924047)

The 2012–2013 Victory factory service manual (P/N 9924047) covers Cross Roads, Cross Roads Classic, Cross Country, Cross Country Tour, and Hard-Ball, including Classic LE and Ness variants.

PDF Search, Chapter Bookmarks and Wiring Detail

Finding procedures: Searchable procedure text and embedded bookmarks across all chapters help locate individual tests. Some circuit-diagram labels are not text-searchable. Small wiring labels require zooming; dense connector tables in the fairing diagram remain difficult to read in places.

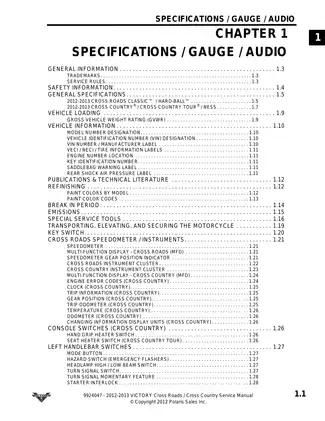

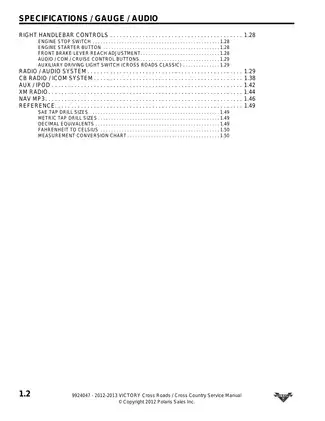

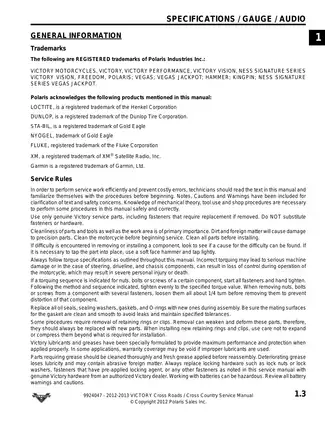

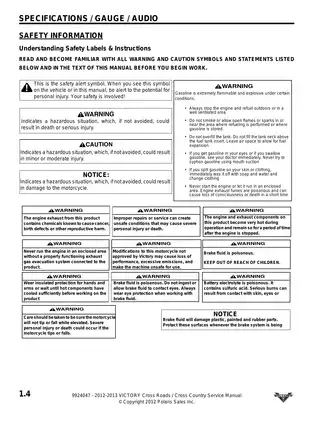

One printable English-language PDF contains 563 pages, including one cover page and 11 Notes pages.

Freedom Engine Repair, ABS Service and Touring-System Diagnostics

These selected topics represent part of the manual's coverage. Other examples include wheel lacing and truing, plus heated-seat and handgrip circuit information.

• Engine overhaul: Engine removal, cylinder head and valve train disassembly, piston and cylinder inspection, crankshaft service, and transmission assembly procedures.
• Fuel injection: Fuel-pressure and pump-current tests, EFI fault-code tables, Idle Air Control diagnostics, sensor checks, and Digital Wrench procedures.
• Brakes: ABS diagnostics, hydraulic bleeding, wheel-speed sensor inspection, brake pad replacement, and master-cylinder and caliper overhaul procedures with inspection limits.
• Chassis: Frame, fairing and exhaust removal, inverted fork service, steering-bearing replacement, rear suspension inspection, and final-drive belt adjustment.
• Electrical systems: Charging-system tests, starter-circuit troubleshooting, ignition checks, fuse layouts, harness routing, and cruise-control module input/output testing for fault isolation.
• Clutch and reverse drive: Clutch pack replacement, Torque Compensator service, the Reverse Gear Case Assembly View, linkage adjustment, and accessory reverse-system diagnostics.

The procedures assume mechanical knowledge, appropriate tools, and workshop facilities, making this a working reference for technicians and experienced owners; cylinder-head machining requires specialist equipment and experience.

Engine Measurements and Drivetrain Assembly

Inspection and repair planning: The Piston To Cylinder Clearance Worksheet, wear limits, torque tables, and special-tool listings support decisions about component reuse and the equipment needed before disassembly. Engine mounting plates PV-48737 are specified to maintain frame alignment during engine removal.

Cylinder-head procedures cover valve guides, seat reconditioning, camshaft timing, and assembly. NiSiC cylinder bores are inspected for wear but cannot be bored or honed. Lubrication and cooling coverage includes oil-pump and relief-valve service, alongside the maintenance schedules and Measurement Conversion Chart.

Assembly cautions: The Neutral Selection Assist (NSA) section explains how incorrect ball-pocket alignment or unsuitable lubricant can prevent correct operation. Torque Compensator reassembly calls for a new stake nut and the specified staking procedure.

Inverted Forks, ABS and Touring Equipment

Fork procedures cover disassembly, seals, bushings, and oil-level setting; the cartridge itself is replaced if defective, rather than internally overhauled. The rear shock is non-rebuildable, and the ABS hydraulic module is serviced as a complete assembly.

Instrument and accessory coverage: Multi-Function Display operation, error-code retrieval, and instrument removal are included. Audio, CB/intercom, XM, and navigation-interface information addresses equipment operation and connections, rather than internal electronic repair.

Tracing Fuel, Charging and Starting Faults

The Fuel Pump Circuit Diagram and ABS System Circuit Diagram complement connector pinouts and test charts. Fuel-pressure, pump-current, and supply-circuit checks help distinguish pump problems from electrical supply faults before choosing replacement parts. Starter voltage-drop tests similarly separate cable or connection resistance from starter faults.

Diagnostic equipment: ABS fault codes require Digital Wrench and cannot be retrieved from the instrument display. The manual describes the diagnostic system; its software and connection hardware are separate workshop requirements. Ignition timing is ECM-controlled and is not manually adjustable.

Follow the manual's safety precautions for vehicle support, pressurized fuel, electrical testing, and brake service.

Selected Belt, Ignition and Fluid Specifications

The maintenance tables specify final-drive belt deflection of 32 mm ± 0.5 mm under 10 lb of force, measured at the tightest point with the rear wheel raised and the drive system at room temperature, without rain or washing exposure within 24 hours.

The ignition specification table lists a 0.8 mm (0.032 in) gap for NGK DCPR6E plugs. Oil-and-filter change capacity is approximately 4.25 liters using Victory semi-synthetic 20W40 oil; the fuel specification calls for premium unleaded rated at least 91 octane (R+M)/2.
