Victory Standard, Deluxe, Classic & Touring Cruiser 2002–2004 Service Manual (P/N 9918960)

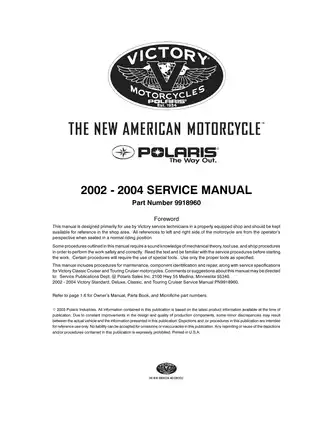

Victory’s 2002–2004 service manual, P/N 9918960, covers the 2002 V92C Standard and Deluxe Cruiser, 2002 V92TC Touring Cruiser and Deluxe Touring Cruiser, 2003 Classic and Touring Cruiser, and 2004 Touring Cruiser. Published by Polaris Industries, © 2003.

Searchable PDF, Bookmarks and Wiring Detail

Text search and diagram detail: Body text is searchable, with embedded chapter and topic bookmarks. Small wire-color codes and connector labels in the full wiring diagram require zooming.

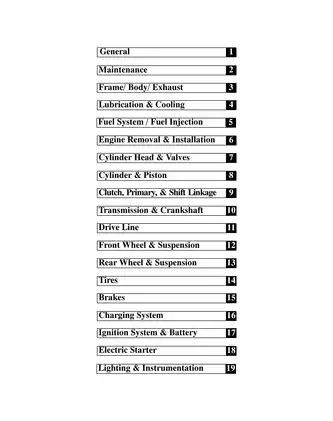

One printable, English-language PDF with 464 pages, including the front and back covers, a five-page index, and one blank page.

V-Twin Repair, EFI Diagnosis and Chassis Service

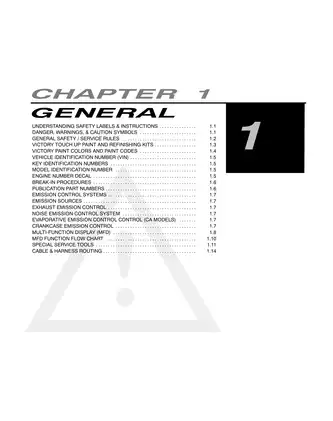

These selected topics preview the manual’s coverage. Other subjects include Multi-Function Display (MFD) operation and paint-code identification.

• Engine repair: Engine removal, cylinder-head and valve-train repair, front and rear cam timing, cylinder and piston work, crankcase separation, and crankshaft service.

• Drivetrain: Clutch, primary drive, shift linkage, torque compensator, internal transmission inspection, belt replacement, sprocket service, and rear-wheel alignment.

• Lubrication and cooling: Separate oil-pressure checks, oil-pump inspection and overhaul, pressure-relief valves, and oil-cooler removal and installation.

• EFI diagnosis: Fuel-pump and sender tests, throttle-body and injector service, ECM fault codes, sensor checks, TPS calibration, and the reflash workflow.

• Electrical troubleshooting: Charging-system tests, ignition and starter flowcharts, safety-switch circuits, connector maps, and system wiring diagrams.

• Chassis and brakes: Fork overhaul, steering-head adjustment, wheel and swingarm service, model-specific rear shocks, tire balancing, spoke-wheel truing, brake bleeding, and component replacement.

• Service reference: Exploded views, cable and harness routing, torque tables, fluid data, pressure-test specifications, wear limits, clearances, and electrical test values.

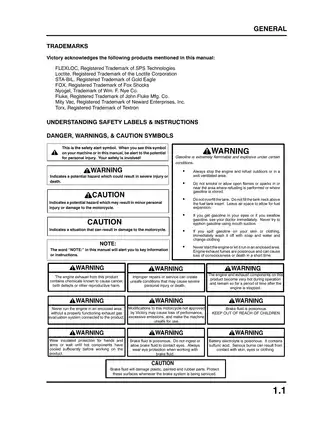

Written primarily for Victory service technicians in a properly equipped shop, this manual assumes knowledge of mechanical theory, tool use, and shop procedures.

Engine Access, Valve Train and Lower-End Repair

The in-frame versus engine-out breakdown helps plan teardown before work begins. Clutch and primary-drive service, external shift linkage, alternator and starter access, ignition work, the torque compensator, cam-chain tensioner, valve covers, and output-shaft seal can be serviced in-frame. Internal transmission, crankshaft, cylinder, piston, oil-pump, and cylinder-head repair require engine removal.

Valve train: Step-by-step procedures cover cam carriers, rocker arms and shafts, cam chains, guides, tensioners, valve inspection, guide replacement, valve-seat reconditioning, head assembly, and separate timing procedures for both cylinders.

Cylinders and lower end: Bore and wear inspection, ring identification and orientation, connecting-rod small-end checks, stud service, and installation checks lead into crankshaft and connecting-rod measurement, color-coded bearing selection, balance-shaft service, and crankcase sealing. Crankshaft main-bearing replacement requires line boring and machine-shop capabilities.

Factory tools include Crankcase Puller PV-45029 and Mainshaft/Crankcase Installer PV-46299. Camshaft carriers are matched and marked for their respective front or rear cylinders. Installing a carrier with its upper nuts still tight can severely damage the lower holder.

Clutch, Transmission and Belt Drive

Separate exploded views and specifications distinguish the 2002 clutch, primary cover, and transmission from the revised 2003–2004 assemblies. The later clutch pack uses a special outer friction plate; transmission illustrations identify changed gearsets, shafts, and bearings, alongside shift-drum and shift-fork inspection procedures.

Belt service includes tension checks and wheel alignment using Belt Tension Gauge PV-43532 and Wheel Alignment Tool PV-43528.

Oil Pressure and Cooling Diagnosis

The lubrication chapter uses pressure checks to investigate engine noise before teardown and verify the repair afterward. Oil-pump inspection distinguishes the lubrication and cooling sections of the pump, with clearance checks, relief-valve service, and disassembly and assembly procedures.

Fuel Injection and Electrical Diagnostics

The EFI chapter follows the tank, pump, pickup filters, sender, venting, and California evaporative-emissions layouts through the fuel rail, injectors, throttle body, sensors, and ECM. Tests cover pump supply voltage, sender resistance, stored fault codes, injector and coil circuits, plus MAP, air-temperature, throttle-position, oil-temperature, crank-position, and vehicle-speed sensors.

Calibration equipment: TPS calibration and ECM reflash material uses the Victory/Polaris Diagnostic Tool Kit PV-46085, EGA/Lambda Sensor Tool Kit PV-45410, and Connector Test Adapter Kit PV-43526. Separate diagnostic software, a laptop, and cables are required; they are not supplied with the manual. TPS calibration is addressed for component replacement or unresolved running problems, rather than routine periodic adjustment.

Reversed battery polarity, static discharge, or improper ECM probing can permanently damage the module or connector.

Charging, ignition and starting: Battery load and current-drain tests, regulated output, stator AC output and resistance, flywheel access, and rectifier/regulator diagnosis accompany checks for spark loss, coil and crank-sensor faults, relay circuits, cable voltage drop, starter amperage draw, and starter-clutch service.

Suspension, Brakes and Body Variants

Front-end procedures cover wheel bearings, triple clamps, steering-stem bearings, preload measurement, and adjustment. Rear sections add swingarm bushings and shock service.

Rear-shock differences: The 2003 Classic and Touring Cruiser FOX gas shocks have exploded views, technical data, rebuilding, bleeding, and charging procedures. The 2004 Touring Cruiser shock is a sealed, non-rebuildable unit.

Brake-service limit: The manual covers pad replacement, disc inspection, bleeding, and caliper and master-cylinder removal and installation. Internal caliper and master-cylinder rebuilding procedures are excluded; faulty internal assemblies are replaced as units.

Body and exhaust: Standard, Deluxe, and Classic Cruiser sections cover the staggered-dual system. Touring Cruiser sections address the dual-crossover exhaust, saddlebags, windshield and deflectors, auxiliary lights, seat, and rear fender.

Illustrations and Workshop Requirements

References include the Camshaft Timing Quick Reference, Power Delivery transmission chart, Fuel Level Sender/Fuel Pump Exploded View, ECM Connector Map, Auto Cancel/Hazard System Block Diagram, and 2002–2004 Standard, Deluxe, Classic Cruiser, Touring Cruiser Wiring Diagram.

Owner’s manuals, parts books, and microfiche referenced inside are separate publications. High-pressure fuel work, engine handling, brake repair, and gas-shock service require the shop equipment and safety practices specified by Victory.

A Preview of Fuel-Pump Test Specifications

The fuel-pressure inspection specifies 49 psi with the engine running. Its troubleshooting table distinguishes low-pressure causes, including restricted filters and pump faults, from high-pressure causes such as a restricted return.

The current-draw test specifies a maximum of 5 DC amps, with the tank completely installed and enough fuel to cover the pickup screens. This test addresses suspect pump operation or a blown fuel-pump fuse.
