Victory Vision Street / Tour (2008) Service Manual (P/N 9921254)

Victory factory service manual P/N 9921254 covers the 2008 Vision Street and Vision Tour, with maintenance, diagnostic, and repair procedures for the Freedom V-Twin platform.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram detail: The main text is searchable, with extensive chapter and section bookmarks. Many diagram labels are not searchable, and small wiring labels require zooming.

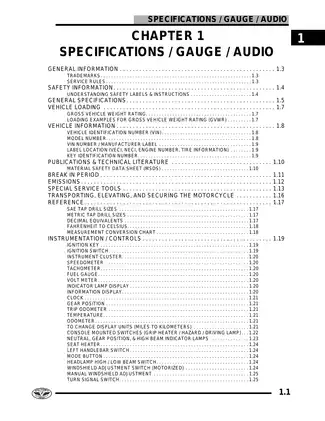

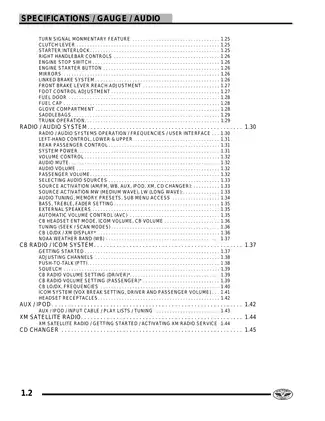

One printable, English-language PDF contains 512 pages: 511 pages of service-manual content and wiring diagrams, plus one appended reference-link page already included in the total.

Powertrain, Linked Brakes, and Electrical Diagnosis

These coverage highlights are a selection from the manual. Additional subjects include tire balancing and California evaporative-emissions hose routing.

• Engine and maintenance: Service intervals, compression testing, step-by-step engine removal and installation, cylinder-head service, camshaft timing, and cylinder and piston inspection.

• Clutch and transmission: Hydraulic clutch service, torque compensator teardown, crankcase separation, and transmission, shift drum, and shift fork inspection.

• Fuel injection: Closed-loop EFI troubleshooting, PCM and sensor tests, fuel pump pressure and current checks, and Idle Air Control (IAC) service.

• Lubrication and cooling: Oil pump disassembly and inspection, pressure-relief valve checks, oil cooler service, and lubrication-pressure and cooling-flow diagnosis.

• Brakes and suspension: Linked brake bleeding, master-cylinder and caliper repair, cartridge-fork rebuilding, steering-bearing replacement, and rear suspension service.

• Starting and charging: Ignition test flowcharts, starter-circuit fault isolation, stator and regulator/rectifier checks, and electrical wiring diagrams.

• Bodywork and controls: Fairing and trunk removal, LCD instrumentation, audio operation, auto-cancel turn signals, and cruise-control diagnosis.

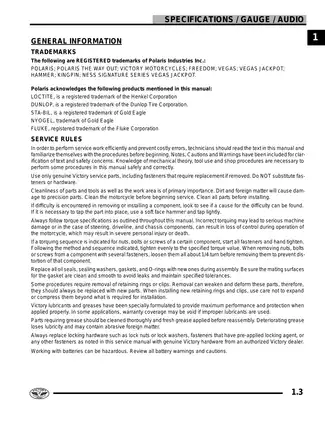

Written primarily for Victory service technicians in a properly equipped shop, the manual assumes mechanical knowledge and requires specialized tools for some procedures.

Engine Repair and Primary Drive

Factory assembly layouts, torque tables, fluid capacities, and inspection limits help technicians map out a repair before teardown. Clutch and external shift-linkage service can be performed in-frame; internal transmission work requires engine removal and crankcase separation.

The Primary Drive Assembly View & Torque and Shift Drum and Shift Fork Assembly View show component relationships for disassembly and reassembly. Torque-compensator instructions address the washer that can slip off its sleeve when the engine is not upright, including checks for correct washer placement.

Cylinder-head coverage extends to valve-guide replacement and valve-seat reconditioning. Crankshaft inspection includes color-coded connecting-rod bearing selection; main-bearing replacement requires machine-shop equipment and expertise.

EFI Tests and PCM Service Requirements

Sensor diagnostic tables connect fault codes with connector pins, meter settings, and expected readings. The Fuel Pump Circuit Diagram supports supply-voltage and relay checks, while IAC coverage explains idle control and the priming procedure used to center the valve.

Digital Wrench procedures identify diagnostic tool kit PV-46085 and Smart Link kit PU-47471. PCM reprogramming requires the documented software and interface hardware; accessory calibrations also require dealer authorization, while stock calibrations are exempt.

Fuel-pump relay diagnostics include a PCM-damage warning for incorrect battery-power application at terminal 85.

Linked Brake Hydraulics and Suspension

Brake-system operation explains how the delay valve and proportioning valve affect the linked circuit. Separate front and rear-linked bleeding procedures accompany master-cylinder and caliper service instructions.

Front-fork procedures cover cartridge draining, spring compression, inspection, and seal replacement. Separating the inner and outer fork tubes damages the oil seal, a specific replacement requirement identified in the disassembly instructions.

The rear air-adjustable shock is a sealed, nonserviceable unit. Its coverage addresses removal, inspection, replacement, and pressure adjustment, alongside swingarm and suspension-linkage service.

The lifting and fuel-system precautions address secure chassis support and fuel-pressure hazards during suspension or fuel-line work.

Electrical Fault Tracing and Touring Controls

The Starter Circuit Diagram and Ignition System Test Flowchart support fault isolation, with voltage-drop tests, interlock checks, and fuse and circuit-breaker references.

Auto-cancel module pin functions and onboard blink codes help distinguish lamp-circuit faults from switch or power-supply problems. Radio diagnostics check control-button inputs and CAN vehicle-speed reception, supplementing the LCD display and audio head-unit operating instructions.

Cruise-control coverage includes disengagement codes and the cable “lash learn” procedure required after cruise-cable installation or throttle-body/control-module replacement. The manual distinguishes this from ordinary throttle-cable adjustment or replacement.

Oil-Change and Drive-Belt Specification Examples

The oil-and-filter change specification is approximately 4.25 liters, using Victory 20W-40 synthetic blend oil; dry-engine capacity is listed separately.

Street and Tour drive belt deflection is 20.0 ± 0.5 mm under 10 lb of force. The inspection specification applies at the drive system’s tightest point, with the rear wheel elevated, the drive system at 60–80°F, and no rain or washing exposure during the preceding 24 hours.
