2002–2004 Victory Cruiser Service Manual (P/N 9918960, )

This PDF covers factory service procedures for the 2002 V92C (Standard Cruiser), V92C Deluxe, V92TC (Touring Cruiser), and V92TC Deluxe; 2003 Classic Cruiser and Touring Cruiser; and 2004 Touring Cruiser. These models use the MCVT1507D 1507cc, 50-degree air/oil-cooled V-twin with a five-speed constant-mesh transmission, wet multi-disc clutch, and belt final drive. The depth of the repair procedures makes this manual suited to experienced mechanics and owners who already understand mechanical theory, precision measurement, tool use, and normal shop practice.

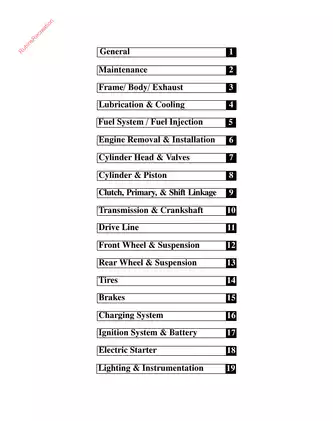

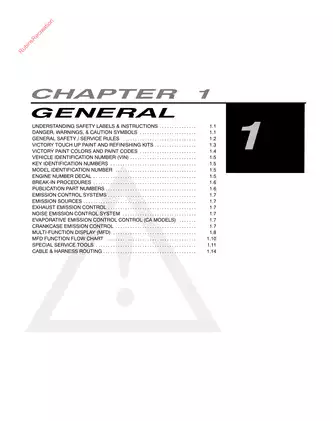

• Manual identity: OEM service manual P/N 9918960, superseded by P/N 9919632, presented as a 462-page PDF with all 19 indexed service sections.
• Engine and lubrication work covers engine removal and installation, oil-pressure testing, oil-pump disassembly and inspection, cylinder-head and valve service, valve-seat reconditioning, cam timing, piston and cylinder measurement, crankshaft and bearing inspection, balance-shaft service, and crankcase assembly and sealing.
• Clutch, transmission, and final drive coverage follows primary-cover and clutch disassembly, torque-compensator service, transmission removal and inspection, shift-drum and shift-fork checks, crankshaft work, drive-belt replacement, and front and rear sprocket repair.
• Fuel-injection diagnosis addresses fuel-pump pressure and current draw, injector and throttle-body service, ECM self-diagnosis and fault codes, MAP/air-temperature/TPS/oil-temperature/crank-position/vehicle-speed sensor tests, TPS calibration, diagnostic-software use, and reflash essentials.
• Chassis procedures extend from wheel bearings, front-fork overhaul, steering-head bearing adjustment, and swingarm service to rear-shock rebuilding, brake bleeding, pad and disc work, master-cylinder and caliper replacement, tire service, wheel lacing, and truing.
• Electrical testing covers battery and charging-system diagnosis, stator and regulator/rectifier tests, ignition fault isolation, ECM harness checks, starter-circuit voltage-drop and current-draw tests, switch circuits, speedometer signals, turn-signal auto cancel, and model-specific wiring diagrams.

Model-Year Differences That Matter

The manual separates 2002 clutch and primary-cover arrangements from the 2003-2004 design. Its later clutch procedure identifies a different outer friction plate that must be installed against the pressure plate, while the transmission section supplies separate 2002 and 2003-2004 assembly views and specifications. Exhaust, body, handlebar, wheel, brake, and suspension illustrations also distinguish Standard/Deluxe Cruiser hardware from Touring Cruiser equipment.

Rear-suspension scope is especially important when selecting the correct repair path. The maintenance data identifies the 2004 Touring Cruiser shock as a sealed, non-rebuildable unit; the shock-disassembly and nitrogen-recharging chapter applies to the rebuildable configurations. Separate evaporative-emissions routing is shown for California Touring Cruiser and Standard/Deluxe/Classic layouts. Coverage is limited to the cruiser families listed above and does not extend to Vegas or Kingpin models.

Diagnostic Tools, Diagrams, and Reference Data

Named visual references include the MFD function flow chart, fuel-delivery assembly view, cam-timing quick reference, transmission assembly and power-delivery views, ECM connector map, and the 2002-2004 Standard/Deluxe/Classic/Touring Cruiser wiring diagram. Ignition and starter troubleshooting flowcharts, left- and right-handlebar switch diagrams, speedometer pin descriptions, harness-routing views, and component exploded views support fault isolation and reassembly.

The special-tool tables identify equipment such as the Victory/Polaris diagnostic kit PV-46085, mainshaft/crankcase installer PV-46299, fork-tube tool PV-46196, connector test-adapter kit PV-43526, and gas-shock recharging kit 2200421. Related sections supply component-specific torque tables, fluid and lubricant data, pressure and electrical test specifications, wear limits, clearances, bearing-selection information, maintenance intervals, and adjustment data.

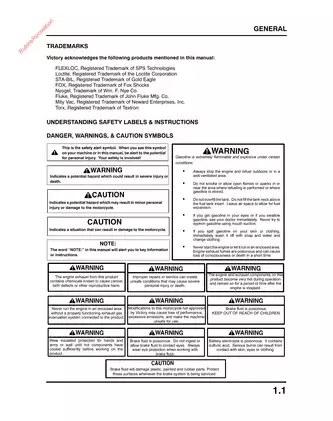

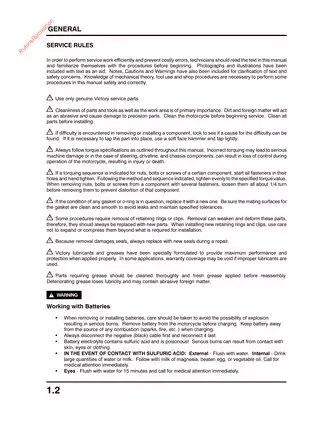

Repair Cautions and Workshop Safety

Several cautions are specific enough to prevent expensive secondary damage. The manual warns that loosening a fork cap while the upper triple-clamp pinch bolt is still tight can irreparably damage the cap; probing the ECM connector without the specified test adapters can deform its terminals, while static discharge can damage the ECM itself. It also calls for the swingarm to remain supported during shock removal so it cannot drop onto the brake line.

Secure the motorcycle before engine, wheel, fork, or suspension work, relieve fuel-system pressure before opening a line, and use the specified high-pressure equipment and protective gear for a rebuildable nitrogen-charged shock. Brake, steering, drivetrain, and electrical repair should be followed by the inspections and operational checks given in the manual.
