Honda VFR800/A Interceptor 2002 Service Manual (P/N 61MCW00)
639 Pages • Printable PDF • 302.76 MB • Download
Honda Models Covered & Key Technical Specifications
Models: VFR800/A Interceptor (2002)
Sub-models / Variants: Standard type, ABS type, California type, Canada type
Model Year: 2002
-
Engine displacement: 782 cc
-
Engine configuration: 90° V, 4-stroke
-
Valve train: DOHC, chain driven with VTEC
-
Transmission: 6-speed, constant mesh
-
Fuel system: PGM-FI (Programmed Fuel Injection)
-
Cooling system: Liquid cooled
-
Engine oil capacity (after draining): 2.9 liters
-
Spark plug gap: 0.80–0.90 mm (0.031–0.035 in)
-
Idle speed: 1,200 ± 100 rpm
Honda Manual Features & Selected Content Preview
Honda's factory service and repair manual for the 2002 VFR800 and VFR800A Interceptor, P/N 61MCW00, issued January 2002. Covers standard and ABS versions, California-only EVAP material, and separate 49-state/Canada and California throttle-body hose routing.
Searchable PDF Text and Chapter Access
Search and wiring detail: OCR text supports searches across the service chapters, although recognition errors can affect matches. Embedded bookmarks access all 24 sections. Small labels in the standard wiring diagram require zooming.

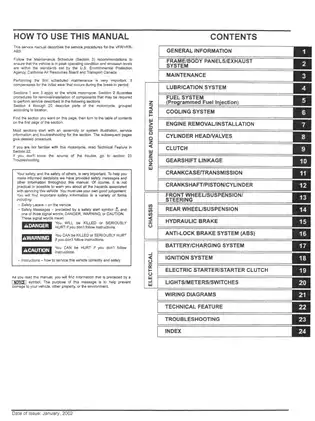

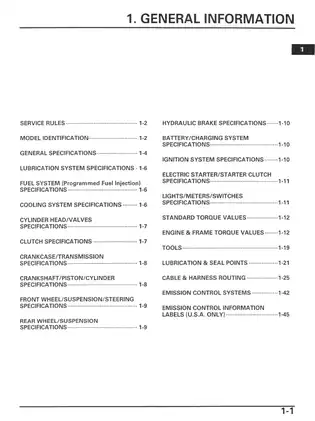

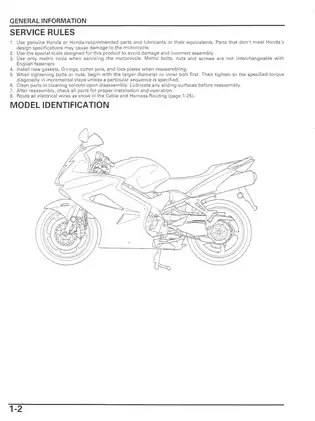

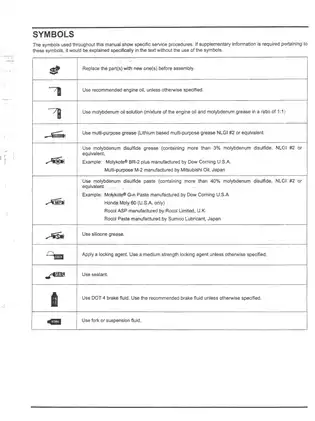

One printable English PDF with 639 pages, including the cover, two introductory pages, nine memo pages, and one blank page.
H-VTEC, Fuel Injection, and Chassis Repair
The coverage highlights below are a selection from the manual; additional topics include fast-idle wax-unit service and drive-chain replacement.
-
H-VTEC engine: Step-by-step engine removal and installation, compression testing, front/rear camshaft timing, cylinder-head overhaul, valve-guide replacement, valve-seat refacing, and normal/VTEC valve-clearance procedures.
-
PGM-FI diagnosis: MIL self-diagnosis, code-based troubleshooting, fuel pressure and flow checks, starter-valve synchronization, and tests for injectors, sensors, relays, O2 sensors, and intake/emission controls.
-
Clutch and lower engine: Hydraulic clutch bleeding and component service, clutch-pack and primary-drive repair, gearshift linkage, crankcase separation, transmission service, and crankshaft/piston inspection.
-
Wheels and suspension: Fork and steering service, single-sided rear axle and bearing-holder work, driven flange, suspension linkage, shock absorber, and swingarm procedures.
-
Linked brakes and ABS: Linked Brake System bleeding, secondary master-cylinder and proportional-control-valve diagnosis, caliper service, wheel-speed-sensor checks, and modulator/control-unit troubleshooting.
-
Lubrication and cooling: Oil-pressure diagnosis, oil-pump overhaul, cooling-system pressure testing, coolant replacement and air bleeding, thermostat inspection, and radiator, reserve-tank, and water-pump service.
-
Electrical testing: Charging, ignition, starter, lighting, meter, and switch diagnosis, supported by wiring diagrams, connector-terminal layouts, and component-specific test references.
It is suited to technicians and mechanically qualified owners with the specified tools and test equipment, with dealer-only recommendations identified in the maintenance schedule.
H-VTEC Valve Work and Internal Engine Repair
The engine chapters distinguish in-frame work from jobs requiring engine removal, helping plan dismantling and support equipment. Camshaft service and front-cylinder-head removal can be performed in the frame; rear-cylinder-head removal requires the engine to come out.
The H-VTEC technical-feature section explains two-valve/four-valve operation, the oil-fed spool valve, and the slide-pin mechanism. Maintenance procedures distinguish normal-valve shim selection from VTEC-lifter selection. Color-coded select-fit tables support main-journal and crankpin bearing selection during lower-engine repair.
Cylinder-head cautions address camshaft holders breaking under incorrectly released bolt load, plus shims and cam-sprocket hardware falling into the crankcase.
PGM-FI Circuit Diagnosis and Special Tools
The PGM-FI section includes MIL memory reading and reset procedures, symptom/code tables, peak-voltage inspection, and terminal-level circuit checks using two 26-pin ECM test harnesses. Its System Diagram and Test Harness Terminal Layout connect the diagnostic flowcharts to specific circuits.
VTEC spool-valve, variable-air-intake, PAIR, and California EVAP purge-control tests sit alongside injector and O2-sensor diagnosis. Fuel-system service information addresses pressure relief and replacement sealing hardware.
Named Honda tools include ECM test harness 070MZ-0010100 (two required), slide pin stopper 07XMZ-MCE0100, tensioner holder B 07ZMG-MCAA400, fuel-pressure gauge 07406-0040003, and drive-chain tool set 07HMH-MR10103. Alternative or commercially available tools are identified where applicable.
Throttle-body cautions address damage to the molybdenum coating from carburetor cleaners and loss of throttle/idle-valve synchronization from disturbing the factory-set, white-painted bolts and screws.
Cooling, Lubrication, and Service Access
The Lubrication System Diagram and cooling-system System Flow Pattern show the oil and coolant circuits alongside the repair procedures. Oil-pump work is covered with the engine installed.
Body and exhaust procedures document fairings, upper cowl, rear fender, seat rail, and exhaust assemblies, including fasteners, connectors, and hose routing needed to reach service points.
Linked Brake Circuits and ABS Limits
The hydraulic-brake chapter separates lever and pedal circuits, with bleeding coverage specific to the linked layout after the hydraulics have been opened. The ABS chapter adds pre-start diagnosis, stored problem-code retrieval/erasure, and front/rear modulator and control-unit removal and installation. Faulty ABS modulators are treated as replacement assemblies, rather than internal overhaul jobs.
ABS wiring limitation: The ABS System Diagram is included in the ABS chapter, but the separate full ABS-type wiring diagram listed as page 21-4, “except U.S.A. type,” is missing from this PDF. The standard-type full wiring diagram is included.
Electrical Repair and Workshop References
Charging-system tests cover battery condition, current leakage, alternator charging coils, and the regulator/rectifier. Starter coverage extends to motor inspection, reassembly, starter-clutch work, and relay diagnosis.
Most system chapters open with assembly illustrations, service information, and troubleshooting before the detailed procedures.
Component-specific torque tables, service limits, capacities, lubrication/seal-point charts, cable/harness and brake-pipe routing, exploded assembly views, and bearing-selection tables support measurement and reassembly.
Examples of Valve-Clearance and Fuel-Flow Data
For cold-engine inspection below 35°C, normal-side valve clearance is 0.20 ± 0.03 mm at the intake and 0.35 ± 0.03 mm at the exhaust. Separate VTEC-side specifications and selection procedures accompany these settings.
For the fuel-flow inspection, the specified minimum is 150 cm³ over 10 seconds at 12 V.
