Yamaha F200C/LF200C & F225C/LF225C Outboard Service Manual, 2003 (P/N LIT-18616-02-76)
2003 Yamaha F200C/LF200C/F225C/LF225C Outboard Manual
Yamaha Models Covered & Key Technical Specifications
Models: F200TR, LF200TR, F225TR, LF225TR
Models & Model Codes:
F200TR — 60L
LF200TR — 60M
F225TR — 69J
LF225TR — 69K
Sub-models / Variants: Regular rotation, Counter rotation
Model Year: 2003
Serial Numbers: F200TR: 1001799–, LF200TR: 1000373–, F225TR: 1007259–, LF225TR: 1002513–
-
Engine type: V6, 4-stroke, DOHC, 24 valves
-
Displacement: 3,352 cm³ (204.5 cu. in)
-
Maximum output: 147.1 kW (200 hp) for F200/LF200, 165.5 kW (225 hp) for F225/LF225
-
Full throttle operating range: 5,000–6,000 r/min
-
Compression ratio: 9.9
-
Spark plugs: LFR5A-11 (NGK), gap 1.0–1.1 mm (0.039–0.043 in)
-
Alternator output: 12 V, 45 A
-
Fuel system: Electronic Fuel Injection
-
Lubrication system: Wet sump
Yamaha Manual Features & Selected Content Preview

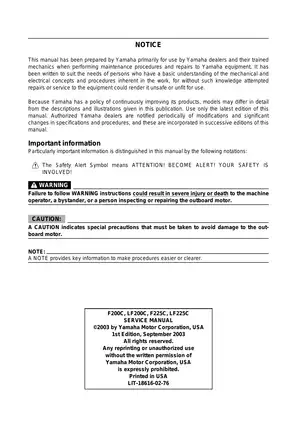

Yamaha service manual for F200C, LF200C, F225C, and LF225C outboards, P/N LIT-18616-02-76, first edition, September 2003. The cover also carries manual identifier 69J-28197-1F-11. The applicability table lists F200TR, LF200TR, F225TR, and LF225TR with their approved model codes and starting serial numbers.
Searchable PDF and Color Wiring Sheets
Text search and diagram detail: The PDF has searchable text and embedded bookmarks for chapters, selected subsections, the index, and the wiring-diagram legend. Small wire-color codes and connector labels are best read with zoom.
One printable, English-language PDF with 323 pages, comprising the 321-page manual and two color wiring-diagram sheets. The total includes the cover, front matter, index, and two memo pages.
Power-Unit Repair, Lower Units and PTT Diagnosis
These selected coverage highlights outline the main workshop sections. Other topics include propeller selection and predelivery checks.
-
Engine repair: Power-unit removal and installation, cylinder-head service, piston and crankshaft inspection, bearing selection, and oil-pump disassembly, inspection, and assembly.
-
Valve train: Step-by-step timing-belt replacement, valve-clearance adjustment and shim selection, cam-chain inspection, valve-guide replacement, and valve-seat refacing.
-
Fuel and engine controls: Vapor separator, fuel pumps, cooler, dual fuel rails, injector and ISC checks, throttle synchronization, and ECM-related diagnosis.
-
Lower units: Separate regular- and counter-rotation procedures for water-pump service, propeller-shaft and drive-shaft repair, gear shimming, and forward/reverse backlash adjustment.
-
Bracket and PTT: Upper case, steering arm, swivel and clamp brackets, trim-sensor adjustment, and internal Power Trim and Tilt inspection, pressure testing, assembly, and bleeding.
-
Electrical troubleshooting: Ignition, starting, charging, sensor and relay tests, starter-motor inspection, self-diagnosis, symptom-based fault charts, and wiring diagrams.
Written primarily for Yamaha dealers and their trained mechanics, this manual assumes a basic understanding of mechanical and electrical service procedures.
Cam Drive and Internal Engine Inspection
The power-unit documentation explains the in-bank exhaust layout and six-throttle-body intake. The crankshaft-driven timing belt turns the exhaust camshafts; separate chains drive the intake cams in each bank, with chain tensioners and a hydraulic belt tensioner.
Factory data tables provide the measurements needed to judge whether parts can be reused or require repair. Compression and oil-pressure checks, cylinder and piston measurements, thermostat tests, oil-fill quantities, tightening torques, and wear limits accompany the repair sections.
Connecting-rod bearing selection uses crankpin markings, while main-bearing selection uses crankshaft and cylinder-block markings. The manual includes the corresponding selection charts and Plastigauge clearance checks.
Timing-belt handling cautions address belt damage from twisting, excessive bending, or contamination, while the flywheel-removal cautions explain how uneven puller positioning can damage the engine or tools. The specified equipment includes flywheel magnet holder YB-06139 and universal puller YB-06117.
Fuel Pressure and Throttle Synchronization
Fuel-system documentation traces the circuit through the fuel filter, electric low-pressure pump, vapor separator, high-pressure pump, injectors, pressure regulator, and fuel cooler. Pressure checks distinguish switch-ON and warmed-up idle conditions, using fuel-pressure gauge YB-06766.
Throttle synchronization combines throttle-position-sensor measurements with cylinder and bank vacuum comparisons. Throttle-link and cable adjustments are documented both with and without a stop bolt; injector and ISC operation checks also reference Yamaha Diagnostic System tests.
The fuel-hose clamp cautions explain why attempting to remove a clamp intact can damage the hose and why removed clamps cannot be reused.
Rotation-Specific Gearcases and PTT Hydraulics
Lower-unit coverage is especially useful when matching parts and repair methods to rotation direction. The counter-rotation unit includes propeller-shaft free-play and shim selection procedures in addition to the gear-shimming work; the tables also distinguish gearcase oil quantities.
Factory tools are identified where the procedure depends on them, including pinion shimming gauge III YB-06441 and backlash indicator gauge YB-06265.
PTT coverage extends beyond an external fluid check to the gear pump, main and relief valves, tilt and trim cylinders, rams, and internal filters. Hydraulic function diagrams explain fluid movement during trim-up, tilt-up, lowering, and shock-return operation. Pressure-testing procedures identify PTT oil-pressure gauge assembly YB-06580, and bleeding is covered with the unit removed or installed.
ECM Tests, Fault Charts and System Diagrams
The ECM section covers ignition timing, injection timing and volume, group injection, ISC control, over-revolution control, shift-cut control, and fail-safe operation. Electrical test tables cover the pulser and ignition coils, TPS, temperature sensors, stator, Rectifier Regulator, and trim sensor; digital multimeter YU-34899-A is among the specified tools.
The Electronic Control System schematic, Ignition and Fuel Injection Timing chart, and Fail-Safe Function Table connect control functions with their sensor inputs. Cooling System and Lubrication System flow diagrams complement the component views and wiring diagrams.
Yamaha Diagnostic System coverage introduces diagnosis records, engine monitoring, stationary and active tests, and data logging. These procedures require separate diagnostic software and interface equipment; detailed software operation is referred to the Yamaha Diagnostic System Instruction Manual.
Symptom charts distinguish no-crank faults from cranking-without-starting, stalling, unstable idle, overheating, low oil pressure, weak charging, and PTT malfunctions. These charts link symptoms to the relevant component checks.
Marine repair work can involve pressurized fuel, a heavy tilted outboard, rotating components, and live electrical circuits. Yamaha’s safety notes address fuel-pressure release and tilted-outboard support; invasive repairs require appropriate marine-service experience.
Examples of Valve-Clearance and Gear-Backlash Data
For cold valve-clearance inspection, the manual specifies 0.20 ± 0.03 mm intake and 0.34 ± 0.03 mm exhaust. The adjustment section connects these measurements with valve-shim thickness selection.
Pinion-to-forward-gear backlash differs by rotation: 0.21–0.44 mm for regular-rotation F200TR/F225TR units and 0.35–0.70 mm for counter-rotation LF200TR/LF225TR units. Separate measurement and shim-adjustment procedures accompany these specifications.
