2000-2005 Mitsubishi Eclipse Service Manual

Complete service manual for 2000-2005 Mitsubishi Eclipse models. Covers all systems and components with detailed procedures and specifications. Ref: MPD970389

4.6starstarstarstarstar_half(5)
visibility Preview Available
Mitsubishi 2000-2005 Mitsubishi Eclipse Service Manual manual page preview - page 1 of

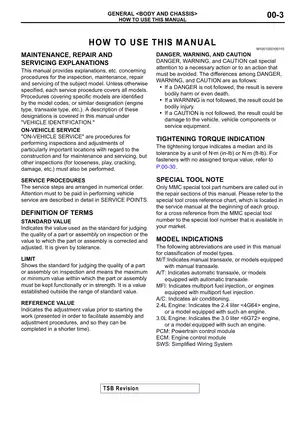

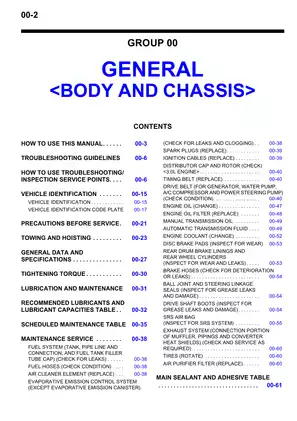

Sample pages from the 2000-2005 Mitsubishi Eclipse Service Manual manual

Mitsubishi 2000-2005 Mitsubishi Eclipse Service Manual manual preview page 1 - thumbnail
Mitsubishi 2000-2005 Mitsubishi Eclipse Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.85 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Mitsubishi Models Covered & Key Technical Specifications

Models: Mitsubishi Eclipse, Mitsubishi Eclipse Spyder
Sub-models / Variants: RS, GS, GT, 2.4L Engine, 3.0L Engine, Manual Transaxle (M/T), Automatic Transaxle (A/T)
Build Years: 2000–2005
Serial Numbers: 000001 to 999999
Technical Data:

  • Engine displacement: 2.4L (4G64), 3.0L (6G72)
  • Compression ratio: 9.0:1
  • Engine oil capacity: 4.0 dm3 (4.5 quarts) including 0.3 dm3 filter volume
  • Engine coolant capacity (2.4L): 7.0 liters (7.4 quarts)
  • Engine coolant capacity (3.0L): 8.0 liters (8.5 quarts)
  • Crankshaft sprocket tightening torque: 14 Nm
  • Spark plug tightening torque: 25 ± 4 Nm (18 ± 4 ft-lb)
  • Manual transmission oil capacity (2.4L): 2.2 dm3 (2.3 quarts)
  • Manual transmission oil capacity (3.0L): 2.8 dm3 (3.0 quarts)
  • Fuel tank capacity: 62 liters (16.4 gallons)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
28332 / Michael Johnson
File Size:
146.06 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Car
Last updated / verified
Aug 12, 2025

Mitsubishi Manual Features & Content Preview

Technical Scope and Data for 2000–2005 Mitsubishi Eclipse

  • Covers 2000–2005 Mitsubishi Eclipse and Eclipse Spyder, including RS, GS, and GT trims with 2.4L 4G64 or 3.0L 6G72 engine variants
  • Official Mitsubishi TSB publication containing comprehensive service procedures and specifications for the North American market
  • Contains 43 exploded-view diagrams, 15 service-point tables, and detailed torque specification charts for the entire engine and chassis
  • Delivered as a direct download the moment payment clears
  • File link appears in your order confirmation straight away
  • Laid out for standard letter and A4 printing
  • Print resolution preserves exploded-view detail
  • Indexed PDF search covers every chapter and appendix
  • This service publication is the authoritative source used for the North American 2000–2005 model run, providing all necessary tolerances for engine mechanical and electrical system maintenance

Component and System Documentation

The 2000–2005 Mitsubishi Eclipse service manual details the inspection and removal steps for engine assemblies, including the 2.4L 4G64 and 3.0L 6G72 powerplants. Chapters provide procedures for timing belt replacement, intake and exhaust valve timing specifications, and lash adjuster bleeding for hydraulic valve components. Additional sections document the fuel injection system, ignition timing procedures, and the what an OEM service publication covers for automatic and manual transaxles.

Specification Highlights

Engine cooling capacity for the 3.0L model is documented at 8.0 liters. The standard torque for M10 fasteners with a head mark of 8 is 53 ± 7 Nm. Intake valve opening timing is specified at 16° BTDC for the 4G64 engine. Reference this manual to identify torque requirements for crankshaft sprockets, fuel rail components, and camshaft installation hardware. The document also provides specific oil viscosity charts based on ambient temperature ranges.

Note: All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work. This official Mitsubishi workshop manual covers the 2000–2005 Mitsubishi Eclipse, documenting engine mechanical, fuel, electrical, and chassis specifications for the 2.4L and 3.0L engine series.

Document Reference: TSB Revision, Form 11A-12

Manual FAQ, Purchase & Download Details

Which tightening spec tables are included for fasteners with no assigned torque values? keyboard_arrow_down

General Body and Chassis section includes a dedicated tightening torque table that provides reference information for those specific fasteners.

Are the PDF manual contents accessible across multiple devices after the download is complete? keyboard_arrow_down

Digital service manual is provided in a standard PDF format that is compatible with most common viewing devices. You will have access to the file immediately upon successful payment.

Is the disc brake and steering linkage section included in this service manual? keyboard_arrow_down

Document contains sections dedicated to the inspection of disc brake pads, rear drum brake linings, wheel cylinders, and steering linkage seals.

What details regarding the 2.4L and 3.0L engine specifications and oil capacities are provided in the manual? keyboard_arrow_down

Manual features comprehensive specification tables that list fundamental liquid volumes, such as engine coolant, and maximum engine oil capacity. These tables also include engine displacement data to assist with identifying specific model variants. Engine-related maintenance sections provide references for components like the timing belt, spark plugs, and drive belts.
