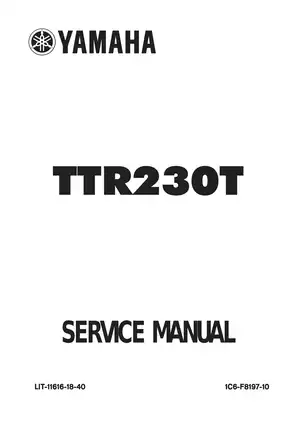

2005 Yamaha TTR230T Factory Service & Repair Manual (P/N LIT-11616-18-40)

Yamaha’s February 2005 TTR230T factory service manual, P/N LIT-11616-18-40, covers the USA (1C61), CDN (1C63), and AUS (1C64) configurations. The original cover also carries P/N 1C6-F8197-10. It provides maintenance, diagnostic, and repair procedures for the engine, drivetrain, chassis, and electrical systems.

Searchable Text and Wiring Diagram Detail

Text search and diagram access: The service chapters contain searchable PDF text. There are no embedded PDF bookmarks. The checked circuit and ignition diagrams have readable component numbers and wire-color codes, with zooming useful for the smallest labels.

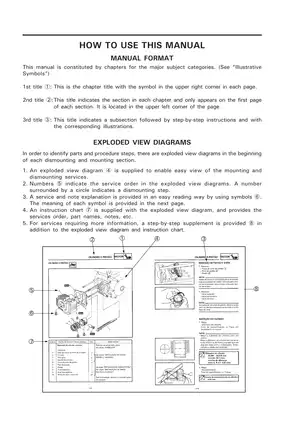

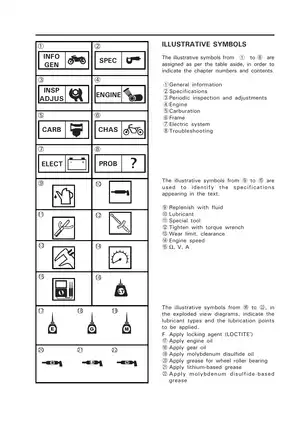

One printable PDF contains 300 pages, including six pages of original front matter and the original rear cover.

Engine Teardown, Chassis Service and Electrical Fault Finding

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Other documented work includes exhaust-core cleaning and fuse inspection.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve and guide inspection, piston service, crankshaft installation, and camshaft timing.

• Clutch and transmission: Multiple-disc wet-clutch inspection and assembly, shift-shaft service, gearbox shaft and gear inspection, and balancer installation.

• Carburetor service: TEIKEI Y26P removal, disassembly, component inspection, reassembly, fuel-level adjustment, and throttle-cable adjustment.

• Brakes and wheels: Front hydraulic brake bleeding, caliper and master-cylinder service, rear drum-brake inspection, wheel-bearing replacement, and static wheel balancing.

• Suspension and steering: Telescopic front-fork disassembly and seal installation, steering-bearing service, monocross swingarm inspection, and rear suspension linkage service.

• Electrical diagnosis: C.D.I. ignition fault charts, starter-motor overhaul, charging-system tests, switch-continuity checks, and the TTR230 electric circuit diagram.

Yamaha prepared this manual for authorized dealers and qualified mechanics, assuming prior knowledge of motorcycle maintenance and repair.

Internal Engine Inspection and Assembly

Having transmission shaft tolerances alongside crankcase and gearbox procedures supports inspection during a crankcase split. The engine chapter covers cylinder diameter limits, cam lobe measurements, piston-ring clearances, valve-seat work, and oil-pump inspection, with component-specific torque specifications and assembly illustrations.

Timing and lubrication: Camshaft timing marks, chain-tensioner installation, balancer alignment, and lubrication passages are documented. The Lubrication Diagram shows the oil-pump and filter arrangement.

The manual identifies special tools by number, including universal clutch holder 90890-04086 and rotor puller 90890-01080. It also cautions against damaging the primary and balancer gear teeth while loosening the crankshaft and balancer-shaft nuts.

TEIKEI Carburetor Inspection and Adjustment

The carburetor chapter goes beyond idle adjustment to cover the throttle valve, jet needle, jets, float, needle-valve seat, choke, and diaphragm assembly. Fuel-level measurement and adjustment are described separately, with illustrations showing the measurement reference.

Periodic service sections also cover valve-clearance adjustment, compression testing, and an oil-flow check at the cylinder head.

Brake, Fork and Rear Suspension Work

Front-brake coverage includes piston and seal inspection, master-cylinder service, and post-bleeding checks. Wheel procedures explain bearing replacement and static balancing; rear-brake instructions address shoes, springs, the brake cam, and the wear indicator.

Rear shock scope: The nitrogen-pressurized shock absorber is covered for removal, inspection, spring-preload adjustment, and replacement. The manual expressly warns against disassembling the shock absorber itself.

Swingarm and relay-arm sections address bushings, spacers, bearings, and movement checks. The drive-chain section explains how steam, pressure washing, and unsuitable solvents can damage its O-rings.

Working on motorcycle systems carries inherent physical risks if components are improperly torqued or assembled. Observe the manual’s brake-system warnings and component-specific torque specifications.

Ignition, Starting and Charging Diagnosis

Electrical troubleshooting combines the Electric Circuit Diagram—TTR230, Ignition Circuit Operation diagrams, switch-connection tables, and fault-isolation charts. These connect circuit layout with checks for a missing spark, a starter that will not operate, or a battery that will not charge.

Ignition timing and advance specifications, coil-resistance tests, and starter-motor inspection limits are included. Battery and Components cable-routing views show harness placement, while the Starter Motor exploded view identifies its internal assembly.

A Preview of Engine Torques, Shaft Runout and Brush Wear

Engine service specifications include 10 N·m for the head-cover bolts and 43 N·m for the engine-oil drain plug.

The transmission inspection section specifies shaft runout below 0.08 mm for the driving and driven shafts. Starter-motor inspection gives a minimum brush-length limit of 3.5 mm, alongside armature, insulation, and continuity checks.
