1989–1996 Honda PC800 Pacific Coast Service Manual (P/N 61MR506)

• Model coverage: Honda PC800 Pacific Coast model years 1989–1990 and 1994–1998, with separate information for California evaporative-emission equipment and the manual’s After ’89, After ’90, After ’94, and After ’96 configurations.
• Body and access procedures: Documents fairing and frame-cover removal, trunk lid and hinge service, trunk-lock and release-cable adjustment, fuel-tank removal, exhaust-system work, engine heat covers, and the removable subframe used for major engine access.
• Engine and drivetrain repair: Covers engine removal and installation, hydraulic tappet inspection and adjustment, camshaft and cam-chain timing, cylinder-head and piston service, clutch hydraulics, gearshift linkage, crankcase separation, transmission inspection, output-gear setup, and shaft final-drive repair.
• Chassis and brakes: Includes front and rear wheel service, fork and anti-dive work, steering-stem inspection, rear shocks, swingarm removal, front hydraulic-brake repair, rear drum-brake service, and related alignment and wear checks.
• Fuel, cooling, and electrical diagnosis: Provides carburetor removal and overhaul coverage, synchronization and pilot-screw procedures, California and non-California vacuum routing, water-pump and radiator service, charging and ignition tests, starter diagnosis, and troubleshooting for lights, meters, switches, and the self-canceling turn-signal system.

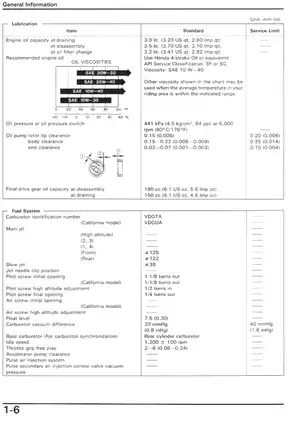

• Factory reference data: Supplies special-tool identification, cable and harness routing, component-specific torque tables, fluid capacities, inspection limits, bearing and shim-selection data, electrical test specifications, exploded assembly views, and year-specific wiring diagrams.

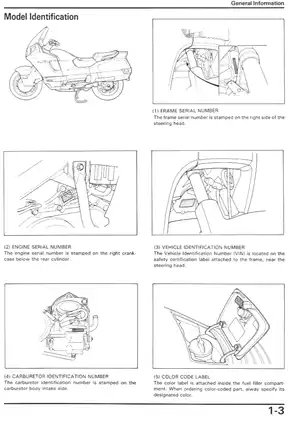

• Document identity and scan scope: Honda service-manual item/part no. 61MR506. The supplied file is a 276-page scanned PDF that begins at printed page 1-3 and does not contain printed pages 2-11 or 10-2. The companion microfiche text file provides an external catalog link rather than a standalone parts catalog.

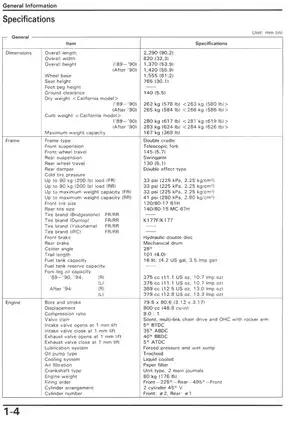

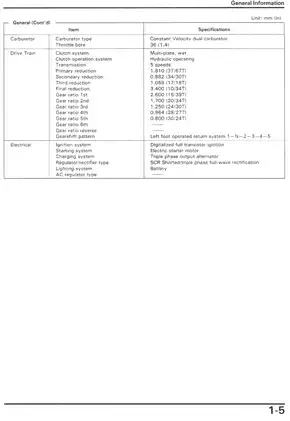

The identification and specification material separates early and later PC800 configurations instead of treating the motorcycles as mechanically identical. Year-dependent callouts cover dimensions and weights, front-fork and wheel details, swingarm hardware, body and trunk-release parts, cable routing, emission labels, and multiple electrical layouts. California models receive their own evaporative-emission diagrams, canister and vapor-hose routing, and carburetor vacuum arrangements.

Engine coverage is built around the liquid-cooled 800cc V-twin and its hydraulic valvetrain. Rather than presenting a conventional screw-and-locknut valve adjustment, the manual addresses tappet inspection, bleeding, priming, and shim selection. Separate repair sections cover the front and rear cylinder heads, cam-chain and camshaft timing, cylinders and pistons, clutch master and slave cylinders, crankshaft and connecting-rod inspection, bearing-code selection, five-speed transmission components, and output-gear and final-drive setup.

PC800-specific bodywork receives more attention than it would in a generic motorcycle manual. The Frame Cover Removal Chart identifies the access sequence for the enclosed panels, while dedicated sections address the trunk lid, locks, hinges, release cables, rear center cover, side covers, fuel tank, radiator, heat covers, and subframe. That material is particularly useful when a repair requires access without damaging interlocking panels, cable retainers, or trunk hardware.

Diagnostic support extends beyond basic continuity checks. The electrical chapters include charging-output and alternator inspection, ignition-system peak-voltage testing, starter and starter-clutch diagnosis, fuel-pump and fuel-cutoff-relay checks, fuel-level sensor testing, and fault isolation for the self-canceling turn signals. Useful illustrations include the Cable & Harness Routing views, Lubrication System Diagram, California/non-California Carburetor Vacuum Tube Routing, Self-Canceling Turn Signal System Diagram, year-specific Wiring Diagrams, and the Fully Sealed Engine Cover System illustration.

Factory tools are identified where the repair depends on them, including hydraulic tappet bleeder 07973-MJ00000 and clutch center holder 07923-MB00000, along with the specified fork, steering, bearing, and final-drive tools. Some general Honda procedures—such as selected bearing replacement, fork or shock disassembly details, and other common operations—refer to the separate Honda Common Service Manual.

The publication also flags several PC800 repair traps. The flywheel retaining bolt uses left-hand threads, and the output-gear and final-drive housings must not be heated with a torch because localized heat can distort the cases and affect gear alignment. Use the year- and configuration-specific torque data, service limits, fluids, routing information, and final checks for the motorcycle being serviced. Fuel, brake, cooling, lifting, and electrical repair work requires appropriate shop equipment and safe isolation before the machine is returned to road use.
