Mazda Models Covered & Key Technical Specifications

Model: CX-9

Model Year: 2010

Sub-models / Variants: 2WD and AWD (Sport AT automatic transaxle with manual shift mode)


  • Refrigerant type: HFC134a (R134a)

  • Key battery type: CR2025 (Advanced Key), CR1620 (conventional keyless-entry transmitter)

  • Operational range (Keyless entry): Up to about 2.5 meters (8 feet) from the center of the vehicle when using the remote buttons

Mazda Manual Features & Selected Content Preview

Mazda’s 2011 CX-9 Owner’s Manual (P/N 8BH2-EA-10H), Edition 1, was printed in August 2010. It covers both 2WD and AWD models, with equipment and options identified where they apply.

PDF Search and Navigation

Text search and bookmarks. Search the manual’s body text or use the embedded bookmarks to jump to chapters such as Scheduled Maintenance, Rear View Monitor, or Specifications.

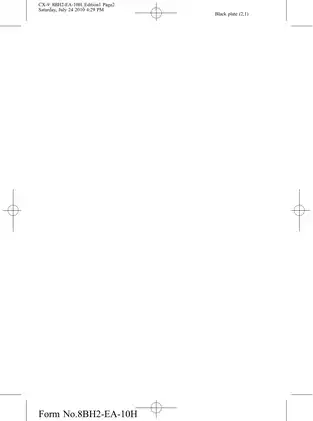

The download contains one printable English PDF with 604 pages, including one illustrated opening page, six blank pages, and six memo pages.


Vehicle Controls, Safety, and Owner Maintenance

The topics below are a selection from the manual. It also covers winter driving and how to report safety defects.

  • Keys and vehicle access: Covers Advanced Keyless Entry and Start, conventional keyless entry, immobilizers, the theft-deterrent system, power door locks, the power liftgate, windows, and moonroof.

  • Seating and occupant protection: Explains manual and power front seats, second- and third-row seat operation, seat belts and pretensioners, LATCH child-restraint anchors, and front, side, and curtain air bags.

  • Driving controls and alerts: Explains automatic and manual shifting, 2WD and AWD operation, ABS and brake assist, TCS, DSC/RSC, TPMS, Blind Spot Monitoring, cruise control, and dashboard warnings.

  • Climate and cabin electronics: Covers front and rear automatic climate controls, Type A and Type B audio, Bluetooth audio and hands-free calling, rear entertainment, the rear-view monitor, HomeLink, and the information display.

  • Owner maintenance: Provides regional service schedules, fluid and lubricant references, tire and bulb specifications, and step-by-step instructions for replacing bulbs and fuses.

  • Roadside emergencies: Includes step-by-step instructions for changing a flat tire and jump-starting, plus guidance on overheating, emergency towing, tiedown points, and recreational towing.

The manual is written for CX-9 owners who need operating guidance and routine checks. Technicians can also use it to confirm how a system or warning is designed to behave from the driver’s seat.

Advanced Key Operation and Personalization

Operating-area drawings show where the request switches work at the doors and liftgate and where the Advanced Key must be for starting. The manual explains what the warning beeps mean, how to start with a dead key battery, and how to restore a temporarily suspended key. Mazda directs replacement-key registration and lost-key service to an authorized dealer.

The manual also covers key-linked seat memory and lists settings a dealer can personalize. Interior Equipment Views A–C and the exterior overviews locate controls, lighting, and other equipment, with separate references for accessory power and the rear-view monitor’s display range.

Air Bag Indicators and Front-Seat Service

SRS illustrations show deployment conditions and rollover protection. The text explains how the driver-seat position sensor, passenger-seat weight sensors, and seat-belt buckle switch affect system operation. It also distinguishes the passenger air bag deactivation indicator from the air bag and pretensioner warning light and explains the associated warning beep.

Mazda directs front-seat removal, upholstery work, and service near SRS wiring or air bag components to an authorized dealer. Disturbing those parts can damage the passenger weight sensors or trigger accidental deployment.

Maintenance Schedules and Towing

Separate schedules cover the United States, Canada, and Puerto Rico and cover Mexico, with intervals for normal and severe use. The owner-maintenance section shows where to check oil, coolant, brake fluid, power steering fluid, and washer fluid. It also covers wiper blades, battery care, and tires, with engine-compartment and fuse-panel layouts for locating service points. The specifications include vehicle and axle weight ratings for both drivetrains.

The emergency towing section distinguishes front-wheel lift for 2WD models from the requirement to keep all four wheels off the ground on AWD models to protect the driveline. The tiedown eyelets are for securing the vehicle during transport.

Workshop, Wiring, and Navigation References

Mazda lists the Workshop Manual, Wiring Diagram, Service Highlights, and Navigation System Owner’s Manual as separate publications. Component overhaul and connector-level diagnosis require the workshop and wiring documentation. The climate section identifies the refrigerant type and refers refrigerant inspection and service to a Mazda dealer.

Oil and Coolant Capacity Examples

For the 3.7-liter DOHC 24-valve V6, the approximate engine oil capacity is 5.5 US qt (5.2 L) with an oil filter change and 5.0 US qt (4.7 L) without one.

The coolant table lists 12.8 US qt (12.1 L) for Mexico. Outside Mexico, it lists that same capacity with the towing package and 12.2 US qt (11.5 L) without it.
