1992 Cummins N14 STC & CELECT Engine Troubleshooting & Repair Manual (P/N 3810456-01)

The Cummins N14 Troubleshooting and Repair Manual, P/N 3810456-01, covers mechanical service for STC and CELECT engines. It combines fault-isolation charts with in-chassis repair procedures, engine removal and installation, and dynamometer testing.

Partial Text Search and PDF Bookmarks

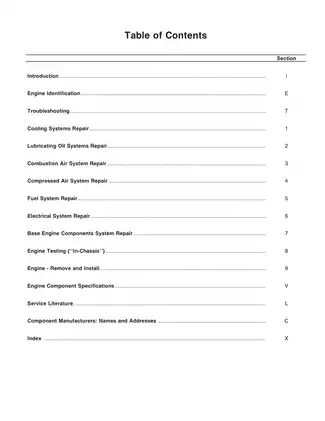

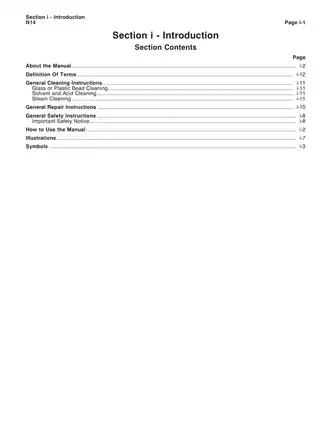

Search, navigation and diagram detail: Text search is available in many sections, but much of the fuel-system and base-engine repair text is not searchable. Embedded bookmarks link to chapters and individual procedures; the legacy MAIN MENU link requires a separate HTML file. Zooming helps with small legends in the lubrication-flow and STC plumbing diagrams.

One printable, English-language PDF contains 812 pages, including the original front and back covers and one notes page.

Engine Fault Diagnosis, Mechanical Repairs and Testing

These selected repair topics outline the manual’s coverage. Other subjects include dipstick calibration and flywheel-housing alignment.

• Symptom diagnosis: Troubleshooting Logic Charts address no-start conditions, low power, overheating, smoke, oil-pressure problems and air-compressor complaints, with references to corrective procedures.

• Cooling and lubrication: Combustion-gas and pressure testing, thermostat and water-pump replacement, oil-pump inspection, pressure-regulator service and oil-cooler testing.

• Fuel and STC: PT fuel-pump removal and installation, VS governor service, STC injector replacement, fuel-aeration checks and STC oil-delivery diagnosis.

• Base engine repairs: Step-by-step procedures cover cylinder-head, bearing, piston, ring, liner and camshaft replacement, plus STC/CELECT overhead and C-Brake adjustments.

• Intake and compressed air: Turbocharger seal and clearance checks, charge-air-cooler leak testing, and Holset/Cummins compressor-head, valve and unloader service.

• Starting and charging: Battery-condition and cable checks, starting-system specifications, alternator belt adjustment, and starter and alternator replacement.

• Engine testing: Engine and chassis dynamometer setup, fuel-flow measurement, boost-pressure correction charts, and run-in procedures with and without a dynamometer.

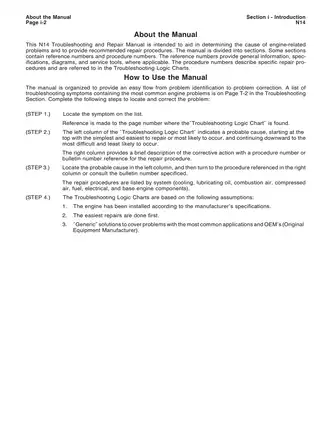

The manual guides service technicians through engine diagnosis and repair; some procedures require the special service tools identified in the relevant section.

In-Chassis Repair and CELECT Coverage Limits

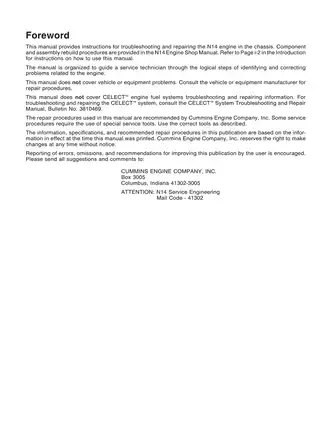

The repair instructions focus on work performed with the engine in the chassis, with separate guidance for engine removal and installation. Complete component and assembly rebuild procedures are provided in the N14 Engine Shop Manual, Bulletin No. 3810487, which is not included.

CELECT mechanical and overhead procedures appear here, but CELECT fuel-system troubleshooting and repair require the separate CELECT System Troubleshooting and Repair Manual, Bulletin No. 3810469. Vehicle-specific starting and charging circuits, component overhauls, and equipment repairs require the appropriate vehicle or component manufacturer’s documentation.

Fuel Delivery and Oil-Pressure Diagnosis

STC tests distinguish problems in the oil control valve, the supply from the main oil rifle, and delivery from the external manifold to the injectors. The STC Oil Valve Plumbing Schematic identifies the oil and fuel-sensing connections used in those checks.

The PT (Type G) AFC VS and PT-PACER Fuel Pump diagrams distinguish pump configurations. PT-PACER pump removal and installation include handling the PACER control unit; complete electronic-system troubleshooting is covered in separate PT-PACER literature.

Oil-system tests compare pressure readings at the pump, filter and main oil rifle to help distinguish restrictions, regulator faults and internal leakage before component replacement. The Lubricating Oil System Flow Diagram – Viscosity Sensor and STC Valve explains the connection between cold-oil pressure control and STC operation.

The piston-cooling-nozzle instructions warn that using the mounting capscrew to pull a nozzle into place can damage the nozzle and its O-ring.

Cylinder Repairs, Timing and Engine Run-In

Cylinder-head work includes valve-to-seat leakage checks, pressure testing and capscrew-hole thread repair. Liner procedures distinguish standard and oversize Lower Press Fit designs and explain protrusion measurement; counterbore machining is referred to a separate manual.

Injection-timing checks use the engine’s CPL timing code and cam-follower housing gasket thickness. Separate STC and CELECT Injector and Valve Adjustment Sequence charts distinguish the overhead procedures. The C-Brake section warns that excessive lash can overload the injection train and damage the engine.

The Intake Manifold Boost Pressure Correction Factors charts account for temperature and altitude during performance evaluation. Engine and chassis dynamometer worksheets support recording test results, while the run-in section addresses repairs involving replacement rings, liners or cylinder kits.

Always review the factory safety protocols before lifting heavy engine components or opening pressurized fluid systems.

A Preview of Cold Valve Lash and Turbocharger Clearance

For STC and CELECT overhead adjustment with stabilized coolant temperature at 60°C [140°F] or below, the manual specifies intake-valve lash of 0.35 mm [0.014 in.] and exhaust-valve lash of 0.68 mm [0.027 in.].

The turbocharger inspection section lists axial clearance of 0.03–0.10 mm [0.001–0.004 in.] and describes measurement with dial depth gauge ST-537.
