Nissan 100NX / NX1600 / NX2000 1991–1996 Service Manual Set (P/N SM1E-2N4BG0)

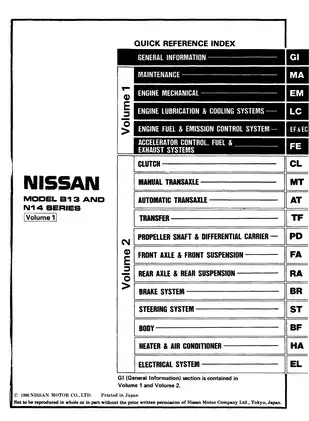

The volumes are companion references: Volume 1 covers maintenance, engines, lubrication, cooling, fuel and emissions; Volume 2 handles driveline, chassis, body, HVAC and electrical repair. Both contain the General Information section.

Corrosion repair: Body alignment, trim and glass service are included, but repairs to corroded areas are referred to a separate Nissan Corrosion Repair Manual.

Two PDF Volumes and Foldout Diagrams

Search, navigation and wiring detail: Neither PDF has searchable text or embedded bookmarks. Small wiring labels require zooming, particularly on the wide electrical foldout in Volume 2.

The ZIP contains two printable English-language PDFs totaling 2,397 pages, including six front-matter pages, Volume 1's publication page and five blank separator pages in Volume 2. Foldout wiring diagrams are included in these totals.

Engine Overhaul, Driveline Repair and System Diagnosis

The following selected coverage highlights outline the main workshop areas rather than reproduce the full contents. Other topics include pre-delivery inspection and seat-belt tension-release circuitry.

• Engine repair: Step-by-step procedures for compression testing, timing-chain and timing-belt service, cylinder-head and valve work, oil-seal replacement, engine removal, cylinder-block overhaul and SR20DET turbocharger repair.

• Fuel and emissions: Carburetor adjustment, electronic-injection testing, E.C.C.S. troubleshooting, CONSULT work support and self-diagnosis, VE-type injection-pump and nozzle service, quick-glow checks and EGR diagnosis.

• Transaxles and 4WD: Clutch service, manual and automatic transaxle overhaul, transfer-unit adjustment, propeller-shaft inspection and final-drive repair.

• Axles, brakes and steering: Drive-shaft and hub service, strut and stabilizer repair, transverse links, lower ball joints, disc/drum brakes, master cylinder, booster, parking brake and ABS diagnosis.

• Body and roof systems: Doors, power windows and locks, instrument panels, weatherstrips, seats, sunroof, T-bar roof, glass, mirrors and body-alignment dimensions.

• R12 air conditioning: Operational checks, evacuation, charging, leak testing, compressor service, component layouts and harness-based fault diagnosis.

• Electrical systems: Starting and charging tests, lighting variants, meters, power-supply routing, electrical-unit locations, vehicle harness layouts and Super Multiple Junction connections.

Suited to experienced mechanics equipped for electrical testing, precision measurements and assembly-specific overhaul work.

Matching the Vehicle to the Correct Procedure

Factory identification tables separate B13 sedan, coupe and T-bar-roof bodies from N14 sedan and hatchback configurations. Destination codes distinguish European, Middle Eastern and other markets, alongside left-/right-hand-drive and 2WD/4WD applications.

These tables help match the correct repair section or wiring diagram to the actual build before parts, test points or adjustment data are selected. EL separately explains Type I and Type II electrical configurations.

Engine Service, Maintenance and Fuel Diagnosis

Engine chapters cover E10S, GA13DS, GA14DS, GA16DS, GA16DE, SR20DE, SR20DET, CD17 and CD20 applications. Fuel coverage distinguishes carbureted GA/E engines, GA16DE and SR-series electronic injection, and CD diesels; CONSULT coverage applies to GA16DE and SR20DE.

Maintenance schedules separate markets outside Europe, Europe excluding the U.K., and the U.K., with severe-driving schedules. LC adds oil-pressure checks, oil-pump inspection, thermostat testing, water-pump service and radiator-fan electrical circuits.

The diesel section provides injection-pump disassembly and assembly, but refers additional pump calibration data to technical bulletins or Zexel calibration standards.

Turning the crankshaft and camshaft separately after removing the timing chain or belt can cause valve-to-piston contact. The SR chapters also include handling and disposal precautions for sodium-filled exhaust valves.

Transaxle and Chassis Repair Detail

Overhaul sections cover RN4F30A, RS5F30A, RS5F31A, RS5F32A and RS5F50A manual transaxles and the RL4F03A automatic. They include component repair, shim selection, preload adjustment and reassembly, plus automatic-transaxle electrical diagnosis and shift-lock service.

Transfer coverage separates VTY10A for GA16DS from FTY10A for SR20DET, with tooth-contact adjustment. PD adds final-drive setup and viscous limited-slip differential checks; clutch sections distinguish mechanical controls from the SR20DET hydraulic system.

Steering procedures cover R24S/R24N manual systems and PR24SC power steering. On full-time 4WD models, unequal wheel speeds or opposite rotation during on-car wheel balancing can damage transaxle gearing.

HVAC and Electrical References

Compressor procedures distinguish NVR140S, DKV-14C, DKV-14D and MJS130 units. Diagnostic references include A/C component and harness layouts, the ABS quick-pinpoint circuit, the GA engine/emission-control circuit diagram and the foldout SR E.C.C.S. wiring diagram.

Connector orientation symbols, diagnostic flowcharts, exploded assemblies and section views support fault isolation and mechanical repair.

Workshop Tools and Service Tables

Preparation tables identify the ST0501S000 engine stand assembly, ST2505S001 automatic-transaxle pressure-gauge set, KV38101900 master gauge for bearing-shim selection and KV999G0010 fuel-tank lock-ring socket. Commercial equivalents are identified where permitted.

Standard-bolt and component torque tables sit alongside refill capacities, pressure-test data, wear limits, shim charts, belt/valve adjustments and electrical test values.

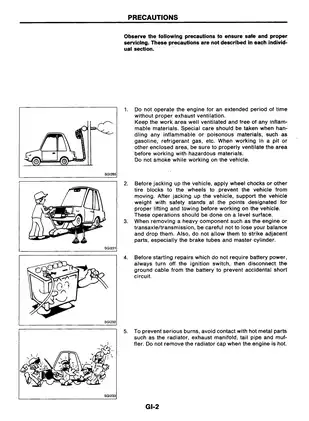

Follow the GI lifting and towing precautions before supporting or moving the vehicle. Fuel, cooling, brake and R12 refrigerant chapters include task-specific safety and equipment requirements.

Examples of Compression and Differential Clearances

For GA engines, the compression-test section specifies a standard pressure of 1,324 kPa and a minimum of 1,128 kPa with the engine warm, throttle fully open and cranking speed at 350 rpm.

For RN4F30A, RS5F30A and RS5F31A final drives, the allowable clearance between the side gear and differential case, with the thrust washer installed, is 0.1–0.2 mm. Separate washer tables distinguish GA16DE from other applications.
