Cummins M11 Series (STC, Celect, Celect Plus) Troubleshooting and Repair Manual (P/N 3666139-00)

• Official Cummins OEM publication (P/N 3666139-00), covering the 1996 M11 Series platform
• Spans 926 pages of extensive component identification guides, symptom trees, and specification tables
• Details the STC, CELECT, and CELECT Plus variants used in automotive, vocational, and industrial applications
• Explores rocker levers, cam followers, drive units, mounting adaptations, and fuel systems
• Analyzes vehicle braking, compressed air systems, electrical equipment, engine testing, and injectors

Documentation Overview and Shop Utility

This 1996 first edition serves as the primary reference for the M11 Series, particularly highlighting the introduction of early CELECT electronic fuel management systems. Rather than generic overviews, it provides structural breakdowns designed to streamline your daily workflow in the bay. Delivered as a comprehensive PDF, you will find logical diagnostic paths starting from basic field checks and advancing to complex component analysis. By providing step-by-step instructions for tasks that typically require expensive commercial shop rates—such as performing overhead set adjustments, running automated cylinder performance tests, and calibrating the STC oil control valve—this manual equips you to tackle extensive heavy-duty maintenance in-house.

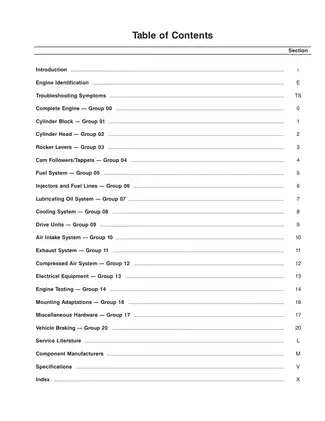

The contents outline engine-in-chassis troubleshooting across major assemblies. Dedicated sections cover cylinder blocks, lubricating oil configurations, exhaust, air intake, and cooling systems. To aid in systematic fault isolation and parts verification, the documentation features manufacturer's wiring diagrams, troubleshooting symptoms charts, fuel system flow diagrams, cooling system flow diagrams, and exhaust system flow diagrams.

When servicing the M11 platform, technicians must be aware of specific diagnostic pitfalls. For instance, attempting a mechanical cylinder cutout test on CELECT or CELECT Plus engines is extremely dangerous; the specific injector stroke can violently eject the push rods. Furthermore, when installing camshaft bushings, failing to visually align the bushing oil groove with both offset oil drillings in the cylinder block will starve the camshaft of lubrication and lead to severe engine damage. Because accurate identification is critical, technical data is rigorously segmented. You can clearly differentiate between STC and CELECT models using the included dataplates and engine nomenclature guides. Please ensure all safety protocols are followed and consult a certified technician prior to servicing heavy-duty equipment to prevent personal injury or mechanical damage.

Engine Specifications and Reference Data

Technical data is organized to reduce downtime and speed up parts verification. Key factory baselines include a minimum cranking speed of 150 rpm and a coolant capacity of 12.9 liters for aftercooled setups. For STC engines, the manual documents a fuel inlet maximum restriction of 204 mm Hg (with a dirty filter). The lubricating oil system capacity using a standard combination filter is rated at 2.6 liters. Reviewing this exact baseline data allows mechanics to verify system health before committing to an extensive repair job.
