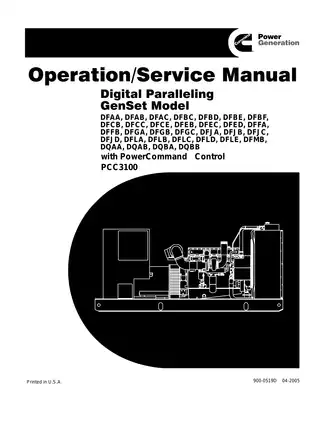

2005 Cummins PCC3100 Digital Paralleling Generator Operation/Service Manual (P/N 900-0519D)

This April 2005 Cummins Operation/Service Manual, publication 900-0519D, covers the DF- and DQ-series Digital Paralleling generator sets listed above with PowerCommand Control PCC3100. It addresses control operation, troubleshooting, calibration, and generator repair.

• Control electronics: Fault tracing for the Engine Interface Board (A31), Customer Interface Board (A34), Digital Display Board (A35), and analog/digital signals.

• Setup and calibration: Circuit-board replacement, display and meter calibration, governor and voltage regulator adjustments, customer fault configuration, and Magnetic Speed Pickup (MPU) installation.

• Paralleling systems: Synchronization, breaker control, isolated-bus and utility-parallel operation, load-sharing diagnosis, and automatic startup logic.

• Generator repair: HC4–7 and P7 disassembly and reassembly, bearing inspection, removal and replacement, PMG and exciter testing, and angular and axial alignment.

• Fuel transfer controls: Day tank pump wiring, motor connections, float-switch tests, and high/low fuel and rupture-basin alarm functions.

• Commissioning and diagrams: Installation review, manual and automatic system checks, black start testing, wiring diagrams, and sequence-of-operation flowcharts.

Written for trained, experienced service personnel performing electrical and mechanical service on generator sets.

System Control and Calibration

Main, Engine, and Generator menu diagrams show how to monitor RPM, optional exhaust temperature, AC voltage, and frequency. A separate history display records control faults.

Recalibration requirements differ after replacement of the Analog Board (A33), Digital Board (A32), PT/CT Board (A36), or Bus PT Module (A39). Replacing A32 requires the full initial setup and calibration process.

PWM control and diagnostic information covers the Voltage Regulator Output Module (A37) and Governor Output Module (A38). The optional Genset Communications Module (A41) links the PCC to a PowerCommand network; detailed network installation requires the separate network manual.

Circuit-board service covers diagnosis and assembly replacement. Component-level board repair is excluded.

Generator Diagnosis and Mechanical Servicing

Insulation Resistance (Megger) and Polarization Index (PI) testing accompany winding-resistance data organized by generator frame and winding. The Generator/PCC Control Isolation Procedure helps distinguish generator faults from PCC faults behind a high-AC-voltage shutdown before selecting replacement components.

HC4–7 and P7 instructions distinguish control housings, bearing work, and alignment procedures. P7 bearing replacement also requires the instruction sheet supplied with the bearing kit.

The manual warns that dismantling the PMG rotor destroys its magnetic properties. Allowing the main rotor to hang from the engine flywheel can damage the drive discs.

Engine service requires the applicable engine service manual; routine genset operation and maintenance are covered in the separate operator’s manual.

Wiring Variants and System Startup

Drawing selection: DFAA, DFAB, and DFAC engine-harness drawings change after Spec E; Spec F onward uses the L10/M11 drawing. The K50 harness drawing separately identifies DFLB Spec T, DFLC Spec W, and DFLE Spec F.

Illustrations include AC reconnect wiring diagrams, 12-lead block diagrams, L10 engine-harness drawings, day tank pump control schematics, angular-alignment measurement views, and engine-sensor location views.

The wiring diagrams are generic references; troubleshooting requires the diagram package supplied with the individual genset. The initial system startup chapter, including black start testing, explicitly excludes medium-voltage units.

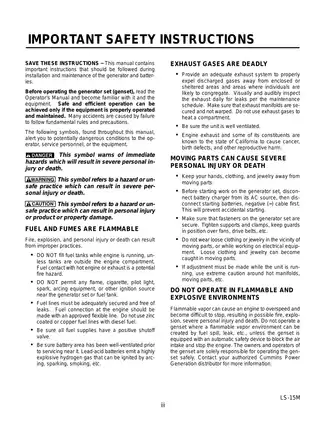

Servicing digital paralleling controls involves high voltage and critical power infrastructure. Review the documented lockout/tagout precautions and system warnings before diagnostic or calibration work.

A Preview of Control Adjustments and Oil Pressure Limits

These adjustment ranges and engine-protection values are a small selection of the manual’s technical data.

Output voltage and frequency are each adjustable by ±5% while the generator set runs under normal operating conditions, outside idle mode.

For the NTA 855 engine, the listed idle oil pressure is 15 psi (103 kPa), while the idle shutdown threshold is 8 psi (55 kPa). Separate warning and shutdown entries cover L10/M11, K19, V28, K38, and K50 engines.

PDF Navigation, Diagram Detail, and Page Count

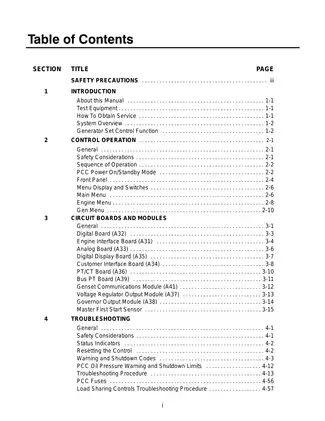

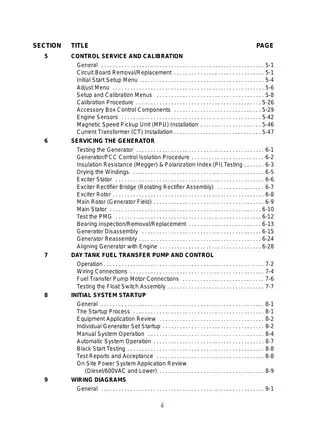

Text search and drawing access: Main text is searchable, but some drawing labels are not. Twelve embedded bookmarks cover the front matter and nine main sections. Small pin numbers and wire labels in larger schematics require zooming; some circuit-board drawings use faint lines.

One printable PDF download contains 227 pages: 226 manual pages, including covers and six intentionally blank pages, plus one introductory printing notice. The notice is already included in the total. The file uses mixed page sizes.
