Cummins M11 Series Diesel Engine Shop Manual (P/N 3666075-00)

• Coverage and document identity: Cummins M11 Series engines, with automotive and vocational ratings plus application-specific bus/non-bus, front- or rear-sump, air-compressor, and REPTO arrangements. This is a 585-page PDF of the Cummins Shop Manual M11 Series Engines, Bulletin No. 3666075-00, printed November 1994.
• Complete teardown and build sequence: Covers engine preparation and stand mounting, accessory removal, cylinder head, liners, crankshaft, pistons and rods, camshaft and gear train work, reassembly, static injection timing, overhead adjustment, flywheel-housing alignment, runout checks, and final accessory installation.
• Machining and reuse decisions: Details main-bearing-bore alignment and liner-bore inspection, plus cleaning, measurement, magnetic crack inspection, wear limits, and reuse criteria for the crankshaft, camshaft, connecting rods, gears, valves, rocker levers, and cam followers.
• Component repair coverage: Includes cylinder-head rebuilding with valve-guide, valve-seat, and injector-sleeve work; head pressure and valve-seat vacuum tests; fuel supply pump rebuilding and testing; oil-system service; and water pump, fan hub, idler, drive-unit, and REPTO rebuilding.
• CELECT and post-rebuild testing: Addresses ECM and harness installation, CELECT injector inspection, engine and chassis dynamometer run-in, fuel-flow checks, intake and exhaust restriction, boost, blowby, coolant and oil readings, and short- and long-term engine storage.
• Factory reference material: Provides numbered Cummins service-tool listings, component-specific torque and clearance tables, injection-timing codes, belt-tension data, capacities, wear limits, and named exploded views and flow diagrams.

Engine Disassembly and Assembly

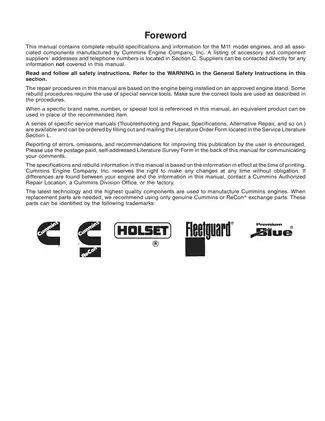

This is the factory rebuild book, not an owner-level maintenance guide. Cummins states that it is intended to aid mechanics, and the procedures assume an approved engine stand plus shop-level lifting, pressing, measuring, and test equipment. It is best suited to professional technicians and experienced engine rebuilders, including mechanics who are new to the M11 platform, rather than a first-time DIY overhaul.

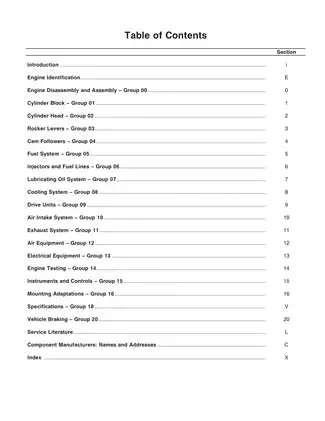

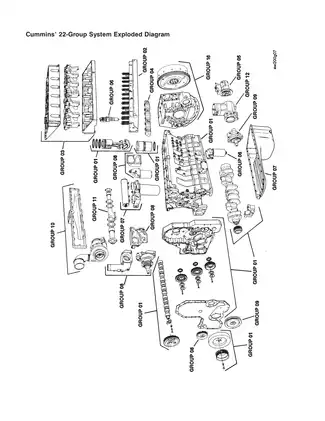

The manual follows Cummins' 22-group system and uses the text-symbol-picture format for cleaning and inspection, rebuild, and replacement procedures. Group 00 carries the engine from stripdown through final assembly; the remaining groups let a shop work by component. Application differences are retained, including bus and non-bus alternator hardware, front- and rear-sump oil transfer arrangements, fuel-pump installations with or without an air compressor, charge-air-cooled induction, hydraulic pump drive, rear engine PTO, and Jacobs engine-brake hardware. Special optional equipment must be documented before removal because its installation is outside the standard assembly sequence.

Component Inspection and Repair Depth

Block and rotating-assembly coverage extends well beyond removal and replacement. Procedures address cylinder-block main-bore alignment, liner bores, camshaft bushings, crankshaft magnetic inspection, connecting-rod bend and twist, bearing reuse, piston inspection, gear replacement, and flywheel and housing alignment. The cylinder-head group covers disassembly, valve and seat work, guide and injector-sleeve replacement, pressure testing, valve-seat vacuum testing, and crack inspection. Rocker levers and cam followers receive their own rebuild and wear-inspection procedures.

Fuel, lubrication, and cooling sections add shop-level repair depth. The manual covers fuel supply pump disassembly, internal inspection, reassembly, and test-stand checks. It also addresses the oil pump and filter head, oil-cooler pressure testing, dipstick calibration, water-pump rebuild, thermostat testing, fan-hub and idler rebuild, and fuel-pump/compressor and hydraulic-pump drives. CELECT injectors are inspected as assemblies; this edition states that they are not rebuildable and do not require flow calibration.

Testing, Tools, and Visual References

The engine-testing section covers engine-dynamometer and chassis-dynamometer setup, run-in after overhaul or cylinder repair, and checks for fuel rate, intake-manifold pressure, restrictions, blowby, coolant pressure, and lubricating-oil pressure. Tool references include engine rebuild stand 3375194 with adapter plate 3376432, cylinder-head lifting bracket 3822479, slip-fit camshaft gear 3824652 for static timing checks, fuel measuring device 3376375, and CELECT Compulink kit 3823548.

Named visuals include the Cylinder Block, CELECT Injector, Lubricating Oil System, and CAC Air Intake System exploded views. Compressed Air System Flow Diagrams and the Rear Engine Power Takeoff exploded view cover two less obvious configurations.

Scope and Repair Cautions

This volume does not contain full CELECT fault isolation or a complete wiring-diagram set; Cummins directs those jobs to the separate CELECT Troubleshooting and Repair Manual, Bulletin 3666084, and Wiring Diagrams, Bulletin 3379099. Full turbocharger and air-compressor rebuilding, Jacobs brake adjustment, and some alternative salvage repairs also require separate component literature.

The manual warns against reusing an oil cooler after a progressive damage failure because trapped metal can circulate through the rebuilt engine. It also identifies reversed camshaft-gear orientation as a cause of engine damage. Because this repair work involves heavy assemblies, pressurized systems, rotating machinery, and dynamometer operation, use the specified lifting and test equipment and follow the OEM safety instructions throughout.
