Honda Models Covered & Key Technical Specifications

Models: CN250 Helix

Model Year: 1993


  • Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)

  • Idle speed: 1,500 ± 100 rpm

  • Valve clearance (cold): 0.08–0.12 mm (0.003–0.005 in)

  • Compression pressure: 1,500 ± 200 kPa (15 ± 2 kg/cm², 213 ± 28 psi) at 600 rpm

  • Steering stem nut torque: 80–120 N-m (58–87 ft-lb)

  • Front axle nut torque: 60–80 N-m (43–58 ft-lb)

  • Spark plug torque: 15–20 N-m (11–15 ft-lb)

Honda Manual Features & Selected Content Preview

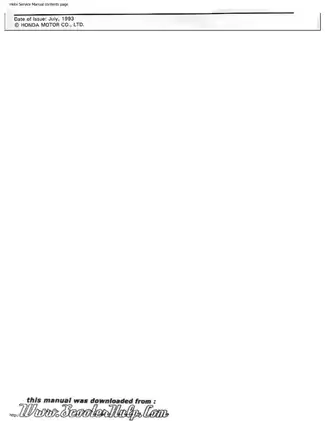

This Honda CN250 Helix service-manual extract contains selected pages from the July 1993 issue published by Honda Motor Co., Ltd., Service Publications Office. Coverage is strongest in bodywork, front chassis, hydraulic brakes and electrical diagnosis.

PDF Search, Diagram Detail and Page Layout

Search and navigation limits: Technical page content is not text-searchable; searches reach only page headings and incidental web-print text. Two file-part bookmarks open PDF pages 1 and 101, without chapter navigation. Small wiring-diagram labels require enlargement, and some wire codes and connector labels remain difficult to read.

One printable, English-language 183-page PDF, including the contents and usage notes on the first two PDF pages. The 2008 print capture contains 95 source-page images, most divided across two PDF pages.


Chassis Repairs and Electrical Fault Finding

The following selected contents highlight the main workshop coverage. Other examples include headlight aiming and an explanation of the color LCD speedometer's operating principle.

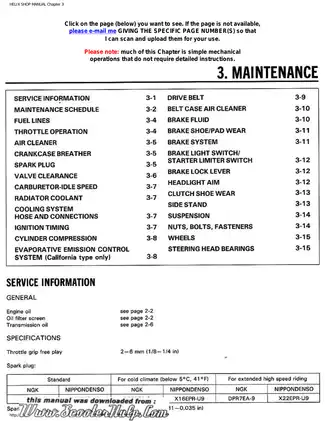

  • Maintenance: Valve-clearance and idle adjustments, fuel-line and throttle checks, coolant inspection, belt-case air-cleaner cleaning, and brake-light/starter-limiter switch adjustment.

  • Bodywork access: Removal of the seat, trunk panels, side rails, floor panel, inner box, front covers and rear frame, with component-access guidance.

  • Front chassis: Step-by-step instructions for handlebar and wheel removal/installation, hub and pivot-arm bearing replacement, shock-absorber disassembly and reassembly, steering-fork service, ball-race replacement and steering adjustment.

  • Hydraulic brakes: Fluid replacement and bleeding, pad changes, disc inspection, master-cylinder overhaul, and caliper disassembly and seal replacement for the documented brake versions.

  • Charging and ignition: Sealed-battery checks, charging-output and leakage tests, regulator/rectifier and charging-coil checks, plus ignition-coil, ICM, exciter-coil and pulse-generator diagnosis.

  • Switches and gauges: Continuity tests, temperature and fuel-sender checks, cooling-fan diagnosis, fuel-pump testing, side-stand interlock checks, and instrument removal and disassembly.

  • Troubleshooting charts: Hard starting, power loss, low- and high-speed running faults, engine noise, clutch/pulley problems, handling, suspension, digital-speedometer faults, charging problems and no-spark conditions.

The test charts, precision measurements and specialty-tool requirements suit technicians and experienced owners who already understand workshop procedures.

Missing Chapters and Procedure Limits

The contents page lists 24 sections, but General Information, Rear Wheel/Brake/Suspension and the Index are absent. Maintenance is excerpted, and the maintenance schedules are omitted.

Lubrication and Sections 4–12 are limited to opening illustrations; detailed engine, carburetor, cooling-system and transmission overhaul procedures are absent. Starting System ends after its overview, specifications and troubleshooting page. Tubeless-tire removal, repair and remounting are referred to a separate manual that is not included.

Brake Versions and Electrical Diagrams

Brake procedures distinguish 1986–1987/1992–1993 hardware from the after-1993 design. Ignition and starting schematics distinguish early circuits from the after-1991 side-stand interlock arrangement. These distinctions help match components and test points to the applicable year group.

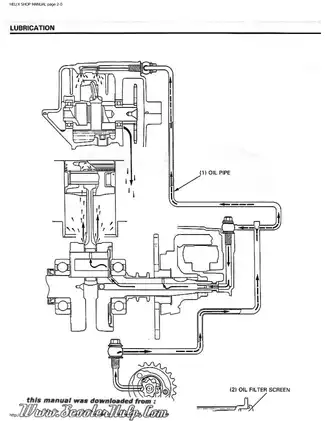

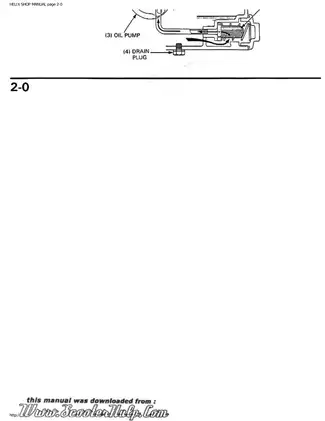

The three wiring sheets carry identifiers 0030Z-KS4-6700 for 1986, 0030Z-KS4-7700 for 1987–1991, and 0030Z-KS4-6500 for after 1991. Additional references include the battery/charging circuit, lubrication oil-flow illustration, exploded steering-stem view and year-specific hydraulic-brake layouts.

Access Planning, Tools and Repair Cautions

The bodywork access chart identifies which covers obstruct the battery, carburetor, radiator, instruments, drive belt and engine, helping plan access before the covered repair begins.

Tool references include steering-stem socket 07916-3710100, ball-race remover 07GMD-KS40100, shock-absorber compressor 07959-3290001, and spring attachment 07967-KM10100, marked unavailable in the U.S. in this edition. Battery testing specifies digital multimeter KS-AHM-32-003 for the U.S.

Bearing-service notes address replacement of removed hub and pivot-arm bearings and tilted installation that can damage bearings or their seats. Brake assembly cautions cover inverted master-cylinder cup lips, snap-ring seating and damage to caliper piston sliding surfaces that can compromise sealing.

Brake service, compressed springs, battery charging and fuel-pump testing involve fluid, stored-energy, explosion and fire hazards. Observe the factory precautions and use appropriate workshop equipment.

Sample Spring and Brake Disc Inspection Limits

The front-suspension table specifies a standard shock-spring free length of 220.4 mm (8.68 in) and a service limit of 216.0 mm (8.50 in), alongside the spring-inspection procedure.

For front brake-disc inspection, standard thickness is 4.8–5.2 mm (0.19–0.20 in), with a service limit of 4.0 mm (0.16 in). These inspection values accompany the component torque tables, clearances and electrical test specifications in the relevant service sections.
