2011 Nissan Altima Audio System (Coupe) Repair Manual

2011 Nissan Altima Audio System Technical Documentation

• Covers 2011 Nissan Altima Coupe and Sedan models, including base audio configurations and Bose audio without navigation
• Official Nissan publication, revision September 2010
• Documents system-specific wiring, audio unit diagnostics, and signal circuit testing for satellite radio, steering wheel switches, and multi-speaker outputs
• Accessible from your device as soon as the order is placed
• Suitable for printing individual sections for shop-floor use
• Contains 32 wiring diagrams and 5 diagnostic signal reference charts
• Includes how factory workshop documentation is structured for complex automotive electronics
• Contains comprehensive accelerator control system data including pedal travel specifications and special repair requirements
• This 2010 revision is the reference build for all 2011 Altima audio service activities

Audio System Architecture

The 2011 Nissan Altima audio system includes the primary audio unit, window-mounted antenna, and steering wheel audio control switches. Signal routing varies by body style, with coupe and sedan variants utilizing distinct harness configurations for speakers, tweeters, and subwoofers. Satellite radio tuners integrate with the main audio unit via dedicated communication signals, which are documented through comprehensive circuit diagrams and pinout charts. The Bose audio option adds a specialized amplifier to drive the center speaker, rear tweeters, and subwoofers.

Specification and Diagnostic Preview

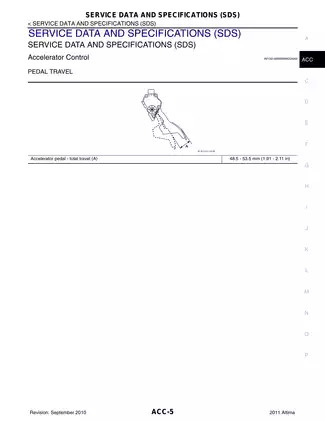

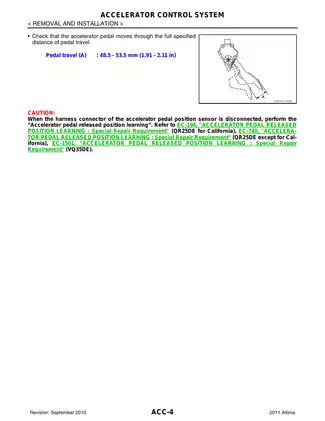

Service documentation provides electrical reference values for the audio unit and satellite radio tuner terminals, including signal voltages and harness continuity requirements. Pedal travel specifications for the accelerator control system are documented at 48.5–53.5 mm (1.91–2.11 in). Steering switch resistance values, such as the 165 ohms specified for station seek buttons, assist in identifying control module faults. Electrical diagnosis includes consultation on CAN communication lines and power supply circuits for both coupe and sedan models. This publication is an official 2011 Nissan manufacturer technical guide covering audio system component replacement and signal path diagnosis for the AV-11 chassis series.
