Jeep Grand Cherokee 2005–2010 Service Manual (P/N 81-370-05064)

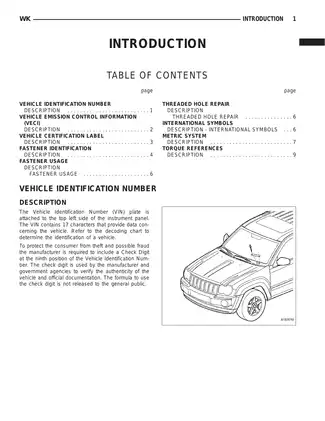

This factory service manual is specific to the 2005 Jeep Grand Cherokee, covering WK 4x2/4x4 configurations and WH export 4x4 applications in left- and right-hand drive. P/N 81-370-05064 identifies the publication. The application information names Laredo and Limited.

Model-year scope: This is a 2005 publication, rather than documentation for the entire 2006–2010 production run. Later SRT8-specific powertrain, suspension, brake, and body repairs require the corresponding model-year documentation.

PDF Search, Bookmarks, and File Contents

Search and diagram detail: The main manual has searchable service text and extensive embedded PDF bookmarks. Many wiring-drawing labels are outside the searchable text. Small circuit, connector, and pin labels require zooming in the checked diagrams. The separate cover/foreword and welcome PDFs have searchable text but no embedded bookmarks.

The RAR download contains three printable PDFs totaling 7,204 pages: the 7,201-page main manual, a two-page cover/foreword file, and a one-page welcome file. These three separate introductory pages are already included in the total, as are the main manual’s two service-comment/return pages.

Powertrain Repair, Chassis Service, and Electrical Diagnosis

The following selected coverage highlights summarize major workshop areas rather than reproduce the complete contents. Additional topics include tire/wheel service and exhaust-system removal and installation.

• Gasoline engine repair: Step-by-step removal, disassembly, inspection, and assembly procedures for the 3.7L, 4.7L, and 5.7L engines, including cylinder heads, valvetrain, crankshaft, pistons, and timing components.

• Automatic transmissions: 545RFE and NAG1 electrical diagnosis and internal repair, including road testing, clutch air checks, pumps, planetary assemblies, valve bodies, and torque converters.

• Transfer cases: NV140 and NV245 internal service, fluid procedures, and output-seal replacement, with NV245 shift-motor and mode-sensor diagnosis.

• Axles and suspension: C200F/C200FE front and C213R/C213RE rear axle service, electronic limited-slip and Vari-Lok sections, gear setup, bearing preload, half-shafts, CV joints, and suspension repairs.

• Brakes and steering: Base-brake repair, ABS/TCS/ESP diagnosis, bleeding procedures, wheel-speed and dynamics-sensor checks, steering flow/pressure testing, and ESP calibration.

• Electrical diagnosis and programming: CAN B/C fault isolation, module no-response tests, DTC diagnostic trees, circuit checks, PCM/SKREEM and ignition-key programming, and transmission adaptation.

• Body, HVAC, and equipment: Panels, closures, glass, seats, restraints, lighting, wipers, power accessories, audio/video, navigation, hands-free equipment, park assist, theft security, and manual/automatic climate-control service.

The manual was prepared for professional automotive technicians involved in daily repair operations.

Engine, Fuel, and Cooling Coverage

Engine diagnosis includes compression and leakage testing, lubrication-system checks, manifold service, and mechanical inspection limits. Fuel-system information adds pressure diagnosis and component service; emissions sections include evaporative-system fault tracing.

Cooling coverage distinguishes electric, viscous, and hydraulic fan arrangements and provides leak-testing, draining, refilling, and component-service information.

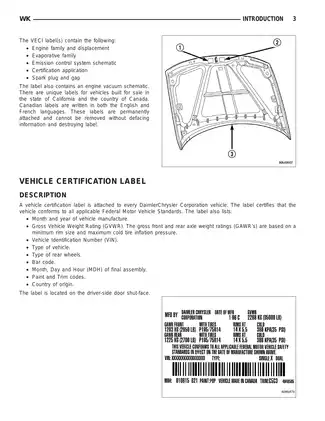

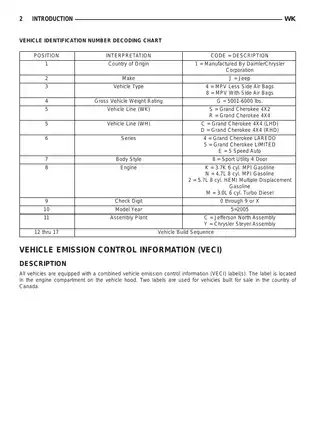

Diesel scope: The 3.0L turbo-diesel appears in vehicle identification, cooling, and selected electronic/transmission references. The engine-mechanical chapters cover the three gasoline engines; this publication does not include a complete internal 3.0L diesel overhaul chapter.

Transmission and Four-Wheel-Drive Repair Depth

The 545RFE material includes hydraulic pressure-test locations, clutch-pack inspection, oil-pump work, solenoid/TRS service, and valve-body teardown. NAG1 coverage explains mechanical power flow and emergency-running operation alongside input/holding clutch and electrohydraulic-unit repair.

The Final Drive Control Module material links active transfer-case operation with front and rear electronic limited-slip control. These system-specific sections help distinguish mechanical repair tasks from control-system faults before selecting a diagnostic procedure.

Brake Service and Repair Precautions

Brake procedures distinguish manual, pressure, master-cylinder, and ABS bleeding. Active-brake-booster diagnosis and sensor calibration supplement conventional hydraulic and friction-component service.

The clockspring discussion explains how loss of centering can damage its internal tape. Rear-axle procedures warn that incorrect pinion-preload handling can damage the collapsible spacer or bearings.

Review the manual’s factory safety procedures, supplemental-restraint precautions, vehicle-support requirements, and brake or pressure-system warnings before beginning major diagnosis or teardown.

Wiring References and Workshop Tools

Drawing examples include 545RFE Hydraulic Schematics, Bus Communications, Transmission Control System, Antilock Brakes, Air Conditioning/Heater, and Connector/Ground/Splice Location views.

Section 8W combines circuit diagrams with connector pinouts, component indexes, power/ground distribution, and splice references. Covered circuits include starting, fuel/ignition, airbags, trailer tow, power accessories, audio/video, and navigation.

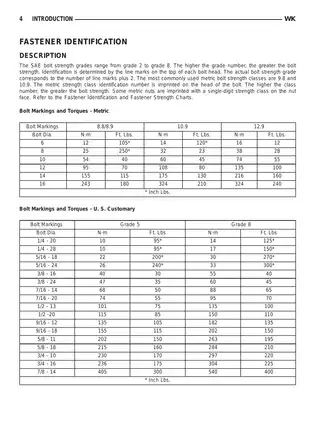

Reference material supplies component-specific torque tables, fluid capacities and approved-fluid information, clearance/wear limits, electrical test specifications, and DTC indexes. Special-tool callouts include the W-129-B differential case spreader, 9669 adapters, and C-3281 flange wrench.

A Preview of Axle and Ignition Test Specifications

For the C200F front axle, the specification table lists ring-gear backlash of 0.13–0.18 mm (0.005–0.007 in.), alongside bearing-preload and component-fastener data.

The gasoline misfire-diagnosis material specifies ignition-coil primary resistance at 77°F (25°C): 0.6–0.9 ohm for the 3.7L/4.7L engines and 0.558–0.682 ohm for the 5.7L. These are selected reference values; the associated diagnostic procedures provide the necessary testing context.
