2002 John Deere 410E Backhoe Loader Repair Manual (P/N TM1611)

John Deere’s 410E Backhoe Loader Repair manual, P/N TM1611, dated July 22, 2010, covers the listed 2002 machines with the 4045T diesel engine, including 2WD and MFWD configurations with manual-shift or Powershift transmissions.

Searchable Text and Bookmarked Repair Sections

Text search and drawing detail: The body text is searchable, with embedded bookmarks for sections, groups, and individual procedures. Some labels within illustrations are embedded in images and are not searchable. Small identifiers in the harness drawings are easier to read when enlarged.

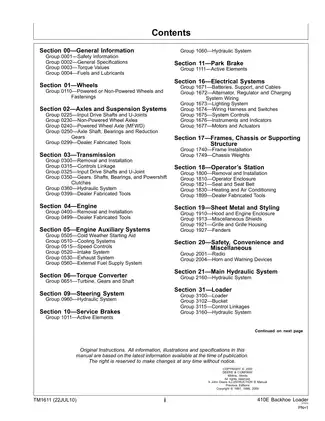

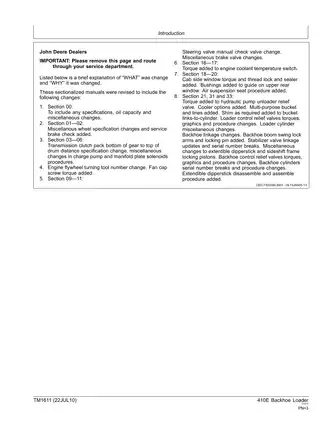

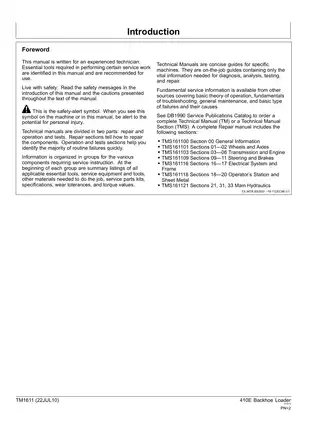

Supplied as one printable, 792-page PDF, including the original cover, three introductory pages, contents, index, and internal blank pages.

Transmission, Hydraulic and Backhoe Repair

The following selected repair topics outline the manual’s coverage. Additional sections include cab door adjustments and air suspension seat service.

• Transmission: Step-by-step manual-shift and Powershift teardown, clutch-pack rebuilding, synchronizer work, and control valve, charge pump, and solenoid service.

• Axles and brakes: Rear axle disassembly, differential setup, wet-disk service brakes, and John Deere/MICO brake valve overhaul, with pedal adjustment and bleeding.

• Steering: Hydrostatic steering valve, priority valve, and steering cylinder repairs for non-powered and APL-2025 MFWD front axles.

• Loader and backhoe: Control valve overhaul, linkage adjustment, extendible dipperstick work, and loader, boom, bucket, crowd, swing, and stabilizer cylinder repair.

• Engine auxiliary systems: Engine removal and installation, cooling component service, air intake leakage testing, speed-control linkage repair, and external fuel supply work.

• Electrical and HVAC: Harness and component location drawings, connector repair, battery testing, and heating and air conditioning component service.

• Optional ride control: Valve and solenoid service, accumulator removal, and dry-nitrogen charging procedures for the different accumulator versions.

Written for an experienced technician, this manual assumes familiarity with service work and the use of the specified essential tools.

Drivetrain Rebuilds and Brake Valve Variants

The transmission sections support major component rebuilds with clutch-plate clearance checks, selective snap-ring sizing, and shaft assembly views. Tool lists and fabrication drawings help a shop prepare for the work, including making the DFT1162 Powershift clutch-pack snap-ring removal and installation tool.

Rear axle procedures cover bearing preload, backlash, and gear tooth contact pattern checks. Brake valve instructions distinguish the earlier John Deere valve from the later MICO power boost valve by serial number, helping technicians select the matching overhaul and bleeding procedures.

Transmission reassembly cautions explain how incomplete gear-hub engagement can damage clutch disks during outer-bearing installation. The manual-shift rear output shaft cross-section view provides an assembly reference alongside the written procedures.

Torque converter coverage addresses removal, installation, and the external assembly; the converter itself has no internal service parts.

Load-Sense Hydraulics, Cylinders and Ride Control

Hydraulic pump disassembly, inspection, and assembly cover the control piston, load-sense module, and flow limiter. Illustrations include the Hydraulic Pump Cross Section and separate crowd cylinder cross-sections for the different serial-number builds.

System testing is a separate publication: Pump flow and leakage tests, along with relief valve pressure-adjustment procedures, are referred to Operation and Test manual TM1610, which is not included. The repair manual specifies replacement rather than rebuilding when the pump fails the referenced tests.

Cylinder work includes seal installation, rod-guide indexing, and the wear-pad and shim arrangement for the extendible dipperstick. Ride control instructions distinguish accumulator versions and explain why charging with air can cause oxidation and condensation that damage the accumulator and piston seal.

Engine, Electrical and Cab Service Boundaries

The engine section covers removal and installation, with separate sections for its auxiliary systems. Internal engine repair requires CTM104; complete MFWD axle repair requires CTM4509; internal alternator and starter repair requires CTM77. These component manuals are not included.

Electrical illustrations include Cab Roof Harness—Components and Engine Harness—Components, showing connector and component locations for removal and installation work. Connector procedures cover Kostal, DEUTSCH, and WEATHER PACK contacts.

Heating and air conditioning procedures address compressor clutch inspection, refrigerant recovery, evacuation, charging, and leak testing. Other sections cover the operator’s cab, frame structures, body panels, and window and seat assemblies.

Shop Safety Note: Heavy equipment maintenance carries inherent physical risks. Review the machine support requirements, hydraulic pressure relief procedures, and safety guidelines before disconnecting lines or removing major components.

A Selection of Transmission and Compressor Clutch Clearances

Powershift clutch-pack checks specify plate clearances of 2.5–3.2 mm (0.098–0.126 in.) for the low-range forward and reverse packs, and 1.2–1.8 mm (0.047–0.071 in.) for the third-speed pack. These ranges accompany the selective snap-ring sizing procedure.

The A/C compressor clutch section specifies a pulley-to-hub clearance of 0.35–0.65 mm (0.014–0.026 in.), with an illustrated dial-indicator check and shim adjustment.
