John Deere 3325/3365 Professional Turf Mower Manual Set – 1993 (P/N TM1427)
986 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Models: 3325 , 3365
Model Year: 1993
Sub-models / Variants: 3365 Rear Wheel Assist (RWA)
Serial Numbers: Steering: S.N. —830000 / S.N. 830001—; PTO/neutral-centering linkage, neutral-start microswitches and mow hydraulics: S.N. —840000 / S.N. 840001—; 3325 wing and rear-center cutting-unit hose straps: S.N. 840001—; muffler mounting and hydraulic diagnostic ports: S.N. —880000 / S.N. 880001—; final-drive axles: Axle S.N. —000755 / Axle S.N. 000756—.
-
Engine: Yanmar 4TN82—RJE, 4-cylinder diesel
-
Engine displacement: 1.8 L (110.2 cu in.)
-
Engine power: 28 kW (38 hp) at 2700 rpm
-
Transmission: Sundstrand 25 Series hydrostatic with Kansaki transaxle (3325 and 3365)
-
Travel speed (mowing): 0–10.8 km/h (0–7.2 mph)
-
Fuel tank capacity: 75 L (20 gal)
-
Hydraulic system flow: 37.8 L/min (10 gpm) per section at 2800 rpm
-
Electrical system: 12-volt negative ground, 40-amp alternator
-
Cutting width: 3.5 m (138 in.)

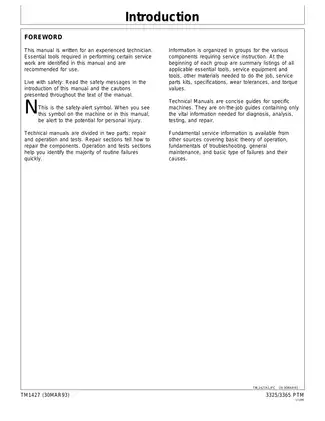

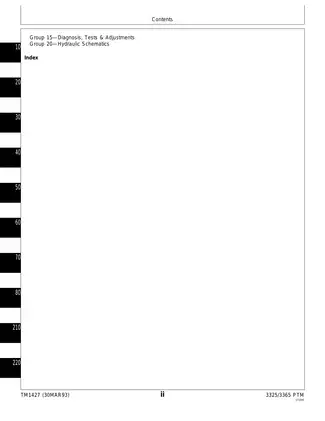

John Deere Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

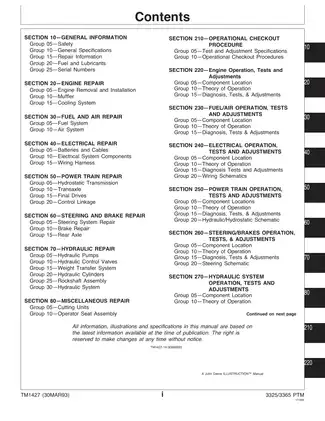

| John Deere 3325 and 3365 Professional Turf Mower Technical Manual, 1993 models (P/N TM1427, cover dated March 30, 1993) | 920 |
| John Deere 3365 Professional Turf Mower Rear Wheel Assist Supplement (P/N TM1427S, cover dated February 28, 1994) | 65 |
The supplement refers to the main manual for wire colors, component identifiers, and schematic symbols when tracing the 3365 Rear Wheel Assist (RWA) circuits.
Full internal engine repair and repair of the injection pump, nozzles, governor, starter, and alternator require the separate CTM3 component manual. Full reel cutting-unit repair requires TM1528. Both are sold separately from this set.
PDF Search, Bookmarks, and Diagram Detail
Search and diagram detail: Service text is searchable, and embedded bookmarks cover both publications. Many labels inside schematic images are outside the searchable text. Small wiring labels generally require zooming, and some RWA labels remain pixelated and difficult to read at higher magnification.
The download is a single printable English-language PDF with 986 pages. The total includes both covers, blank pages, foldout diagram panels, and one artwork-reference page.
Mower Repairs, Circuit Tests, and Rear Wheel Assist
This selected service overview also leaves room for topics such as the cruise-control checkout and operator-seat assembly repair, both covered in the main manual.
-
Engine and fuel: Engine removal and installation, muffler mounting, radiator service, fuel-system bleeding, injection-pump timing, compression testing, and valve-clearance adjustment.
-
Power train: Hydrostatic transmission and transaxle disassembly, PTO clutch inspection, differential lock repair, final-drive service, and neutral-return adjustments.
-
Electrical diagnosis: Separate starting-circuit tests for the two models, Time Delay Control (TDC) module checks, wiring harness repair, and mow and backlap circuit troubleshooting.
-
Steering and brakes: Steering valve and cylinder repair, system bleeding, wet disk brake inspection, rear axle service, and toe-in adjustment.
-
Hydraulics: Transaxle pump and dual-pump service, flow-control valve repair, rockshaft overhaul, wing lift cylinder service, and weight transfer adjustments.
-
Cutting units: Removal and installation, reel motor seal replacement, reel rotation checks, and step-by-step backlapping, with separate motor mounting instructions for the 3325 and 3365.
-
3365 Rear Wheel Assist: Rear axle and drive motor overhaul, control-valve service, electrical test points, and troubleshooting charts for loss of assist, low power, or wheel drag.
John Deere wrote both publications for experienced technicians and identifies the service tools and test equipment used in the procedures.
Engine Diagnosis and Injection Timing
Symptom charts cover hard starting, low power, smoke, and overheating. The injection timing procedure identifies the JDF14 injection pump adapter and explains how turning the delivery-valve fittings during injection-line work can damage the pump internally. CTM3 covers repairs inside the pump and engine.
Electrical Test Points and Harness Connections
The 3365 cranking charts account for its start-enable relay. Connector identifiers, wire-color charts, and expected readings help trace faults through the fuel shutoff, charging, and cutting-unit circuits. Harness instructions show how to service Weather Pack contacts and replace Sure-Seal connectors with Weather Pack connectors.
Hydrostatic Drive and PTO Fault Isolation
The lack-of-drive charts distinguish linkage faults from relief-valve and charge-pump problems, helping technicians choose the next test before disassembling the transmission. Hydrostatic and PTO schematics accompany transaxle cross-sections. The clutch procedures identify the JDG561 clutch piston compressor and JDG562 snap ring compressor.
Steering, Lift, and Hydraulic Test Ports
Steering schematics, valve cross-sections, and an exploded brake-linkage view accompany pressure, flow, and leakage tests. Serial-specific procedures distinguish steering-oil routing and hydraulic test-port arrangements. Lift-system instructions cover rockshaft feedback and cutting-unit rate-of-drop. The weight transfer schematic also identifies the configuration for machines without that option. The manual includes pressure-relief precautions for hydraulic service.
Reel Mounting and Rear Wheel Assist Diagnosis
The backlapping procedure includes reel-to-bedknife adjustment. The 3325 installation instructions identify which reel motor mounting holes take the shorter fasteners to prevent driven-gear damage. TM1528 covers full cutting-unit repair.
The RWA supplement covers axle pivot bushings and uses electrical and hydrostatic test charts to distinguish switch or harness faults from hose-routing and wheel-motor problems.
Engine and PTO Clutch Specification Preview
The engine installation procedure specifies 44–54 N·m (33–40 lb-ft) for the engine mounting bracket-to-frame fasteners. The cold intake and exhaust valve clearance for the Yanmar diesel is 0.20 mm (0.008 in.).
The PTO clutch inspection procedure gives a minimum clutch disk thickness of 1.9 mm (0.075 in.). Other reference tables cover tire pressures, cutting ratios, bolt and hydraulic-fitting torques, and fluid capacities for the engine crankcase, hydraulic system, and hydrostatic transaxle.
