1988–1999 John Deere GX70 GX75 GX85 SX85 GX95 SRX75 SRX95 Riding Mower Technical Manual (P/N TM1491)

John Deere technical manual TM1491 covers the 1988–1999 GX70, GX75, GX85, SX85, GX95, SRX75, and SRX95 riding mowers. This July 1999 revision replaces the January 1997 edition.

• Engine repair: Engine removal, cylinder-head and valve service, piston inspection, crankshaft work, and internal engine disassembly and assembly.

• Fuel systems: Carburetor disassembly and cleaning, fuel-pump testing, throttle and choke adjustments, and governor checks.

• Electrical diagnosis: Starting, charging, ignition, and operator-presence troubleshooting, supported by wiring diagrams, component-location views, and diagnostic charts.

• Drivetrain service: Gear-transaxle overhaul, variator-drive service, belt replacement, and neutral, clutch, and shift-interlock adjustments.

• Steering and brakes: Steering-sector and pinion service, front-axle inspection, wheel-bearing work, and disk-brake and parking-brake adjustment.

• Mower decks: Spindle overhaul, blade inspection, PTO linkage repair, deck leveling, and cutting-quality diagnosis.

Written for experienced technicians, this manual assumes access to the tools and test equipment specified for the work.

Engine Diagnostics and Internal Repair

Engine-specific charts address hard starting, surging, backfiring, and loss of power on the Kawasaki FC290V/FB460V (John Deere “K” Series) and Briggs & Stratton Diamond I/C engines. Compression and crankcase-vacuum tests specify equipment such as the JDM-59 compression gauge and JT05698 manometer.

Internal repair extends to cylinder heads, valve guides and seats, pistons and rings, camshafts, and crankshafts. Inspection data include standard and oversize cylinder bores, valve clearance and lift, stem-to-guide limits, and crankshaft alignment checks.

Torque references cover flywheel nuts, cylinder-head bolts, and connecting-rod caps. Separate reference charts address metric and inch fasteners and O-ring face-seal fittings.

Carburetors, Fuel Pumps, and Governors

Fuel-system procedures distinguish gravity-fed layouts from pump-equipped engines and include carburetor tuning, fuel-flow checks, and governor adjustment. FB460V carburetor exploded views show versions with and without a fuel shut-off solenoid.

The GX95/SRX95 carburetor section warns that striking the float pin during removal can damage its holder.

Ignition Variants and Electrical Fault Tracing

The GX85/SX85 Electrical Schematic includes the Reverse Implement Switch (RIS) circuitry. Serial-specific ignition-coil arrangements and interlock diagrams help technicians select the matching fault tests before replacing ignition or safety-switch components.

Diagnostic charts pair normal readings with follow-up fault checks for starter motors, alternators, voltage regulators, ignition modules, neutral start switches, and battery-current drain. GX85/SX85 charging coverage includes the inline rectifier diode.

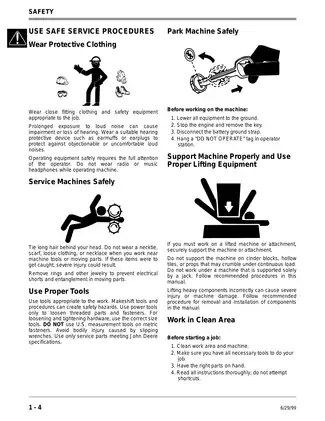

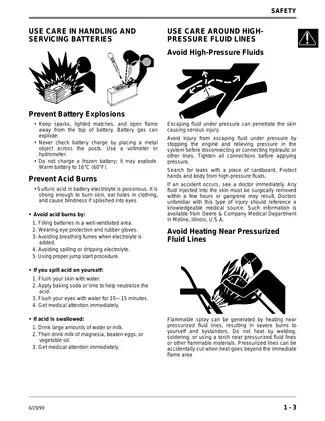

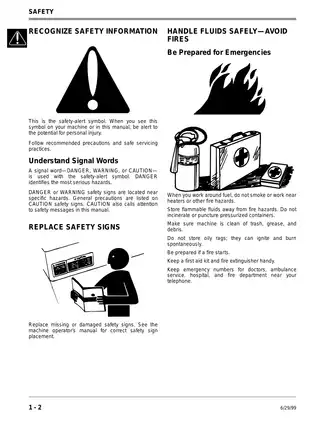

Technicians must verify equipment status and disconnect power sources before mechanical teardown, following the manual’s precautions for moving machinery and electrical circuits.

Transaxles and Variator Drive

The SX85/SRX Transaxle Operation and Variator Operation drawings explain how direction selection and belt-controlled ground speed interact. Repair sections cover gears, shift keys, differential components, primary and secondary drive belts, transaxle neutral alignment, and variator interlock adjustment.

The variator bearing is the assembly’s only serviceable part. GX transaxle repair notes also identify the risk of gear damage when the gear is inadequately supported during needle-bearing removal.

Steering Linkage and Brake Service

Steering work includes shaft end play, sector and pinion inspection, drag links, tie rods, and front-axle removal. Brake sections detail disk and pad inspection, linkage wear, and parking-brake adjustment.

Deck Spindles, Blade Brakes, and Cut Quality

The 30-inch and 38-inch deck chapters cover blade sharpening and balancing, spindle disassembly, belt guides, and PTO linkages. The 38-inch Blade Drive and Brake Operation drawing explains the blade-drive and braking linkage.

Side-to-side and front-to-rear leveling procedures use the TY15272 blade-height gauge. Cutting-quality charts address uneven cutting, scalping, and bagger plugging.

Brake Clearance Examples

These clearances are a small sample of the adjustment specifications in the manual.

For GX70, GX75, GX85, and GX95 models, the brake-adjustment section specifies 0.13 mm (0.005 in.) between the outer brake pad and brake disk.

The corresponding adjustment clearance for SX85, SRX75, and SRX95 models is 0.38 mm (0.015 in.).

Searchable PDF and Wide Wiring Diagrams

Search and diagram detail: Searchable PDF text and embedded bookmarks support navigation through the main sections and index. Small wire codes, connector numbers, and relay labels in the wide electrical drawings require zooming for comfortable reading.

The download contains one printable 457-page PDF. That total includes the cover, nine intentionally blank pages, and 20 additional split-page views of the wide wiring and schematic drawings.
