2002–2006 Yamaha SX Viper 700 Snowmobile Service Manual Set

This Yamaha snowmobile service manual set combines base documentation for VX700, VX700DX, SX700, VT700, and MM700 with supplements for SXV70, SXV70ER, SXV70SJ, VT70J, and SXV70MH. The supplements provide model-specific changes alongside the base service procedures.

• Engine repair: Engine removal, cylinder and piston inspection, crankcase and crankshaft service, oil-pump installation, AC magneto service, and recoil-starter repair.

• Yamaha Power Valve System: Y.P.V.S. adjustment, pre-season checks, valve removal and inspection, servomotor testing, and electrical troubleshooting.

• Clutches and chaincase: Primary and secondary sheave disassembly, bushing inspection, sheave alignment, jackshaft installation, and chaincase service for models with and without reverse.

• Chassis and brakes: Steering alignment, front and slide rail suspension service, track adjustment, brake-caliper repair, master-cylinder assembly, and hydraulic bleeding.

• Carburetion and tuning: Carburetor disassembly, synchronization, fuel-level adjustment, fuel-pump inspection, high-altitude tuning, and throttle position sensor inspection and adjustment.

• Cooling system: Heat-exchanger inspection, water-pump removal and installation, thermostat testing, cooling-system pressure checks, and air bleeding.

• Electrical diagnosis: Ignition, starting, charging, lighting, and warmer-system troubleshooting, with self-diagnosis displays and variant-specific detonation control circuits.

Suited to technicians familiar with snowmobile service, this documentation assumes the workshop experience and measuring equipment needed for internal engine inspection, clutch work, and electrical diagnosis.

Engine Service and Y.P.V.S.

The engine sections document cylinder-bore measurements, piston-to-cylinder clearance, ring inspection, crankshaft checks, and component-specific tightening requirements. Exploded views identify the parts involved in engine, oil-pump, magneto, and recoil-starter service.

Power-valve diagnosis: The SX Viper material addresses carbon buildup that can immobilize the Y.P.V.S. valves. Its mechanical checks, servomotor tests, and self-diagnosis displays help distinguish a sticking valve from an electrical fault.

The Y.P.V.S. adjustment section also warns that an incorrect adjustment coupler can damage the CDI unit. It identifies the dedicated YS-43092-1 coupler for the applicable procedure.

Clutch, Chaincase, and Suspension Differences

Clutch tuning data distinguish sheave offsets, spring characteristics, weight and roller identification, and altitude-dependent settings. Separate chaincase layouts cover reverse and non-reverse configurations, helping prevent the wrong assembly information from being applied to a sled.

The base chaincase installation notes explain that misplaced spacers can cause the brake disc and jackshaft to bind. Secondary-sheave procedures address stored spring tension and the required compression equipment.

Steering and suspension sections distinguish the standard chassis, Venture, and Mountain arrangements. They include ski alignment, suspension installation, track tension and alignment, and slide-runner inspection. Follow the manual’s support and guarding precautions around the raised track and rotating driveline.

Carburetion and Cooling-System Work

Carburetor troubleshooting relates starting, idle, and acceleration symptoms to possible fuel-system faults. Main-jet selection charts and high-altitude tables accompany the clutch and gearing information rather than treating jetting as an isolated adjustment.

Throttle Position Sensor (T.P.S.) sections describe resistance checks and position adjustment. The Throttle Override System (T.O.R.S.) has separate inspection procedures.

Cooling coverage includes water-pump component inspection, thermostat checks, pressure testing, and model-specific heat-exchanger layouts. The bleeding sections identify the relevant bleed points and distinguish the Mountain cooling arrangement.

Circuit Diagrams and Fault Isolation

The electrical material includes Ignition System, Electrical Starting System, Charging System, Lighting System, Y.P.V.S., and Detonation Control System circuit diagrams. Full wiring diagrams, connector views, wire-color legends, and cable-routing drawings support these system sections.

For SXV70SJ and VT70J, the detonation-control material adds knock-sensor checks and indicator behavior. Self-diagnosis charts distinguish sensor, power-valve, warmer, and supply-voltage faults, with the applicable displays kept separate by variant.

Examples of Coolant Capacities and Stator Test Data

Cooling specifications distinguish the VX700’s 3.8 L total coolant amount from the 4.5 L listed for SXV70/SXV70ER. These whole-system quantities are separate from coolant reservoir capacity.

For SXV70/SXV70ER, the electrical tables specify stator-coil resistance of 0.36–0.44 Ω at 20°C (68°F), measured between the white leads. The associated circuit diagrams and connector illustrations provide the test context.

Searchable Service Text, Bookmarks, and PDF Contents

Text search and diagram detail: Service text is searchable, and embedded PDF bookmarks organize the four manual sections and their chapters. Some cable-routing illustrations have no searchable labels. Small connector identifiers and wire-color codes in the full-page wiring diagrams require zooming.

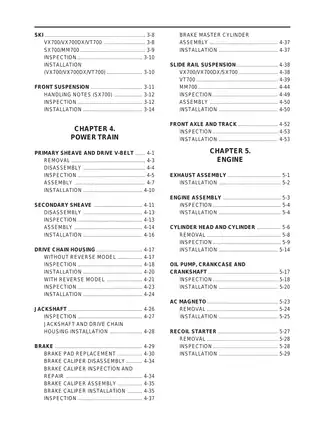

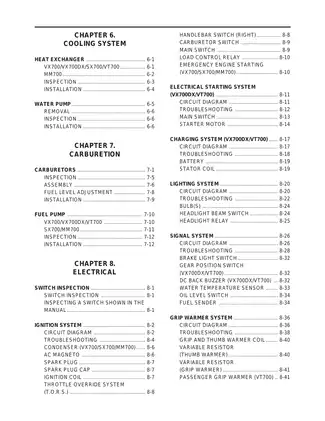

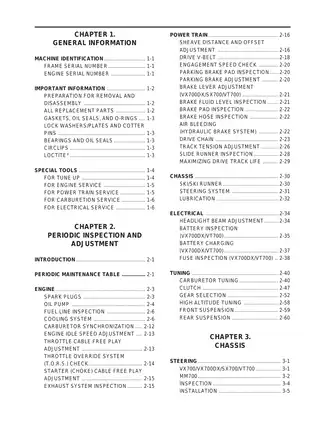

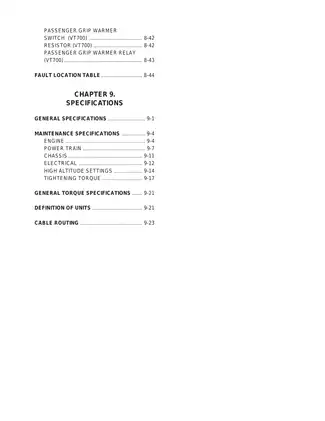

Supplied as one printable, English-language, 623-page PDF containing the following base manual and supplements:

The total already includes 12 index and contents pages and one illustrated-symbols reference page; the symbols page is included in the Mountain supplement’s 60 pages.
