2007 Mazda CX-7 Workshop Manual FSM (P/N 9999–95–034B–07)

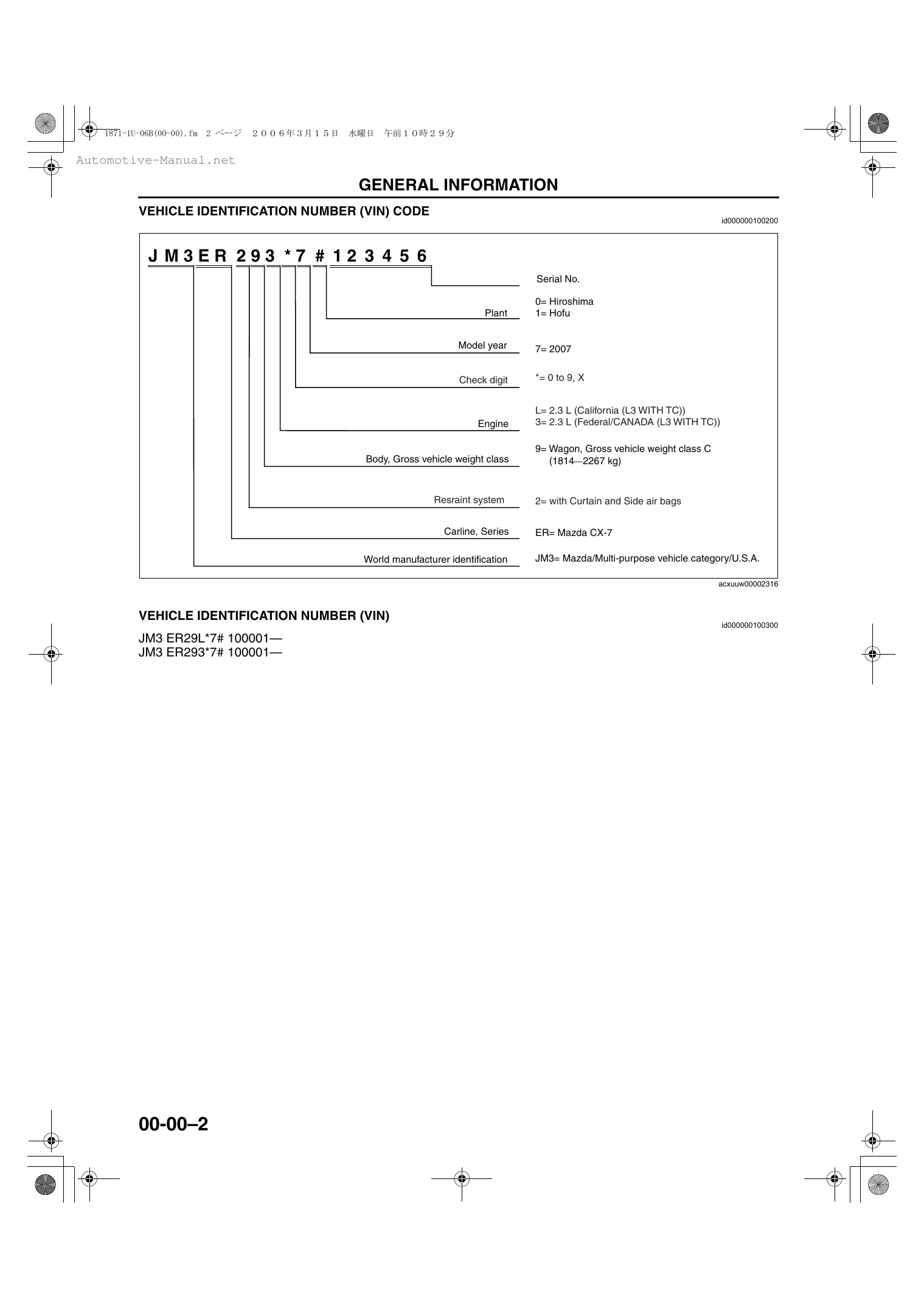

• Matches the 2007 Mazda CX-7 beginning with VIN patterns JM3ER29L*7#100001- and JM3ER293*7#100001-, covering the turbocharged 2.3L L3 WITH TC engine in California and Federal/Canada specifications, plus 2WD and AWD configurations.
• Engine chapters document valve-clearance inspection and adjustment, compression testing, timing-chain service, cylinder-head-gasket replacement, engine removal and installation, turbocharger and charge-air-cooler work, and high-pressure direct-injection fuel-system diagnosis.
• For the AW6A-EL and AW6AX-EL automatic transaxles, the manual provides electronic diagnosis, line-pressure, stall, time-lag, and road testing, TCM and solenoid checks, neutral-position learning, transaxle removal, control-valve-body service, oil-cooler flushing, and shift-lock adjustment.
• Chassis chapters address 2WD/AWD suspension and wheel alignment, hubs and joint shafts, rear differential and transfer service, electronic AWD control, brake and DSC diagnosis, caliper repair, power-steering gear and pump disassembly, HVAC service, and air-bag/restraint-system work.
• Electrical troubleshooting is built around the Mazda Modular Diagnostic System (M-MDS), with DTC and PID tables, pending-code and freeze-frame procedures, active-command and simulation tests, connector views, terminal checks, and system-specific wiring diagrams.

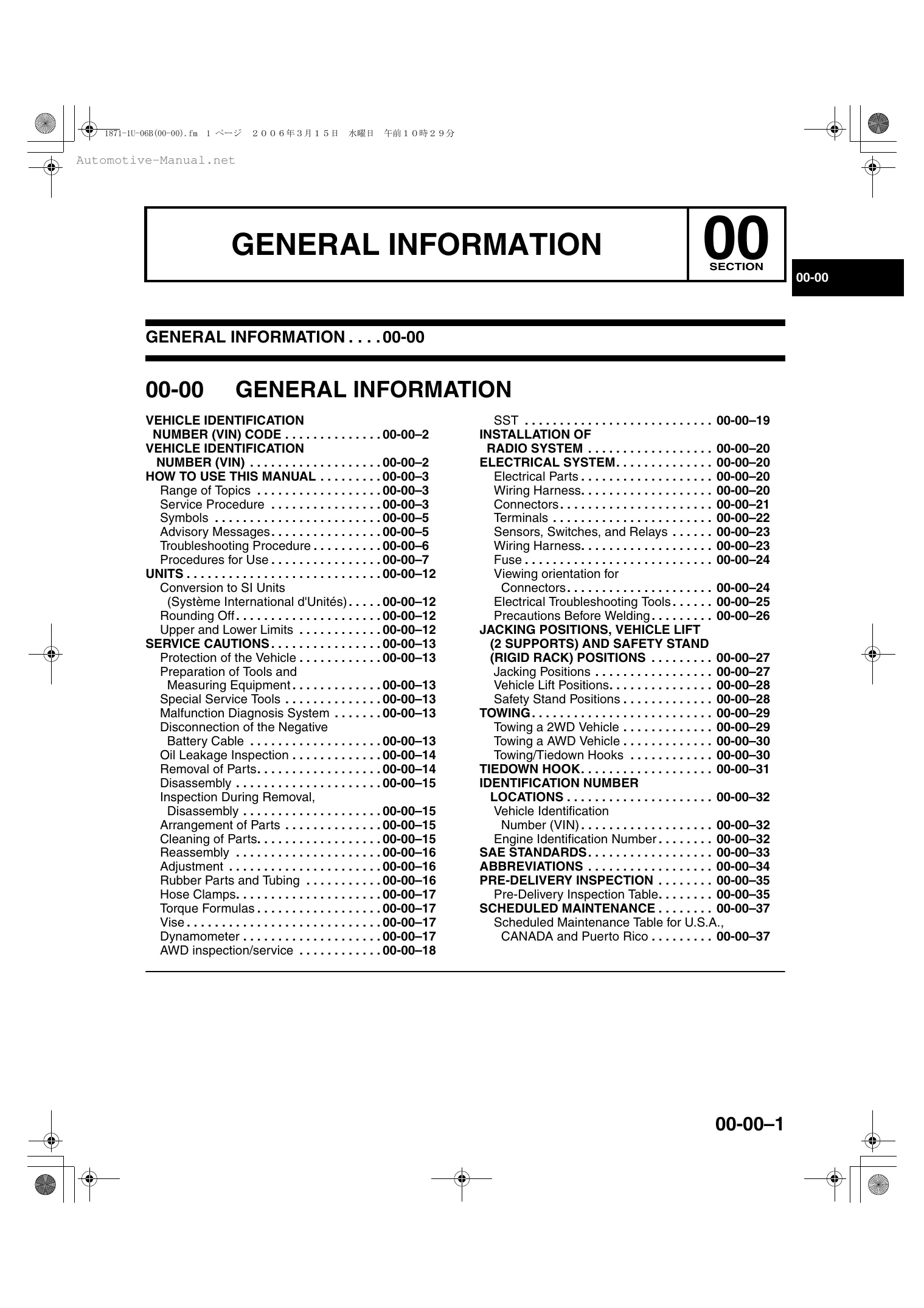

• The 1,772-page PDF contains Mazda factory publication P/N 9999-95-034B-07, Form No. 1871-1U-06B, printed in February 2006, with revision-marked pages dated through March 2007.

Diagnostic and Electrical Reference

The engine group occupies 566 pages, including a 258-page on-board-diagnostic chapter and a separate 94-page symptom-troubleshooting chapter. The diagnostic material explains M-MDS connection through DLC-2, DTC and pending-code retrieval, freeze-frame review, OBD-II readiness status, PID/DATA Monitor and Record, Active Command Modes, the Simulation Function, and KOEO/KOER self-tests. Mazda also provides monitor-specific drive modes and after-repair verification for misfire, catalyst, heated oxygen sensor, EGR, and evaporative-emission faults.

Troubleshooting is organized around real vehicle complaints rather than code definitions alone. The engine charts cover no-crank and hard-start conditions, stalling, rough idle, hesitation, surging, misfire, loss of power, excessive fuel consumption, abnormal noise, vibration, emission failures, and intermittent concerns. Similar DTC, PID, active-command, wiring, and symptom sections appear for the transaxle, electronic AWD, ABS/DSC/TCS, tire-pressure monitoring, HVAC, restraints, advanced keyless entry, immobilizer, CAN communication, instrument cluster, body control module, audio, and power windows.

Representative diagrams include the On-Board Diagnostic Wiring Diagram [L3 WITH TC], Automatic Transaxle Control System Wiring Diagram [AW6A-EL, AW6AX-EL], Electronic AWD Control System Wiring Diagram, DSC System Wiring Diagram, HVAC System Wiring Diagram, and Air Bag System Wiring Diagram. These are backed by connector and pin-location views, control-module terminal-voltage tables, continuity and short-circuit checks, module input/output checks, and diagnostic flowcharts.

Repair Procedures and System Depth

Mechanical coverage documents the factory procedures needed for timing, cylinder-head, sealing, lubrication, cooling, intake, turbocharger, fuel, exhaust, emission, charging, ignition, and starting-system repair. The intake and boost-control material covers the turbocharger, charge-air cooler, bypass valve, wastegate actuator and control solenoid, throttle actuator, and variable-swirl system. Fuel-system chapters address both the low-pressure supply side and the L3-TC high-pressure direct-injection hardware, with the required safety procedures before opening pressurized lines.

Drivetrain material extends from front hubs and steering knuckles through front and rear joint shafts, propeller shaft, transfer unit, and rear differential. The differential section contains removal, full disassembly and assembly, bearing, shim, pinion, and ring-gear work. Suspension procedures distinguish 2WD and AWD rear layouts, while the brake chapters cover hydraulic bleeding, master cylinder and booster service, disc and caliper repair, parking-brake work, wheel-speed sensors, the DSC hydraulic unit/control module, and steering-angle-sensor initialization.

HVAC coverage includes R-134a recovery, evacuation, charging, leak and performance testing, compressor and clutch service, refrigerant lines, condenser, receiver/drier, expansion valve, evaporator, heater core, blower, actuators, and climate-control sensors. Restraint-system sections document M-MDS diagnosis, SAS module configuration, seat-weight-sensor calibration, clock-spring adjustment, air-bag and crash-sensor replacement, and deployment/disposal procedures.

Specifications, Tools, and Scope

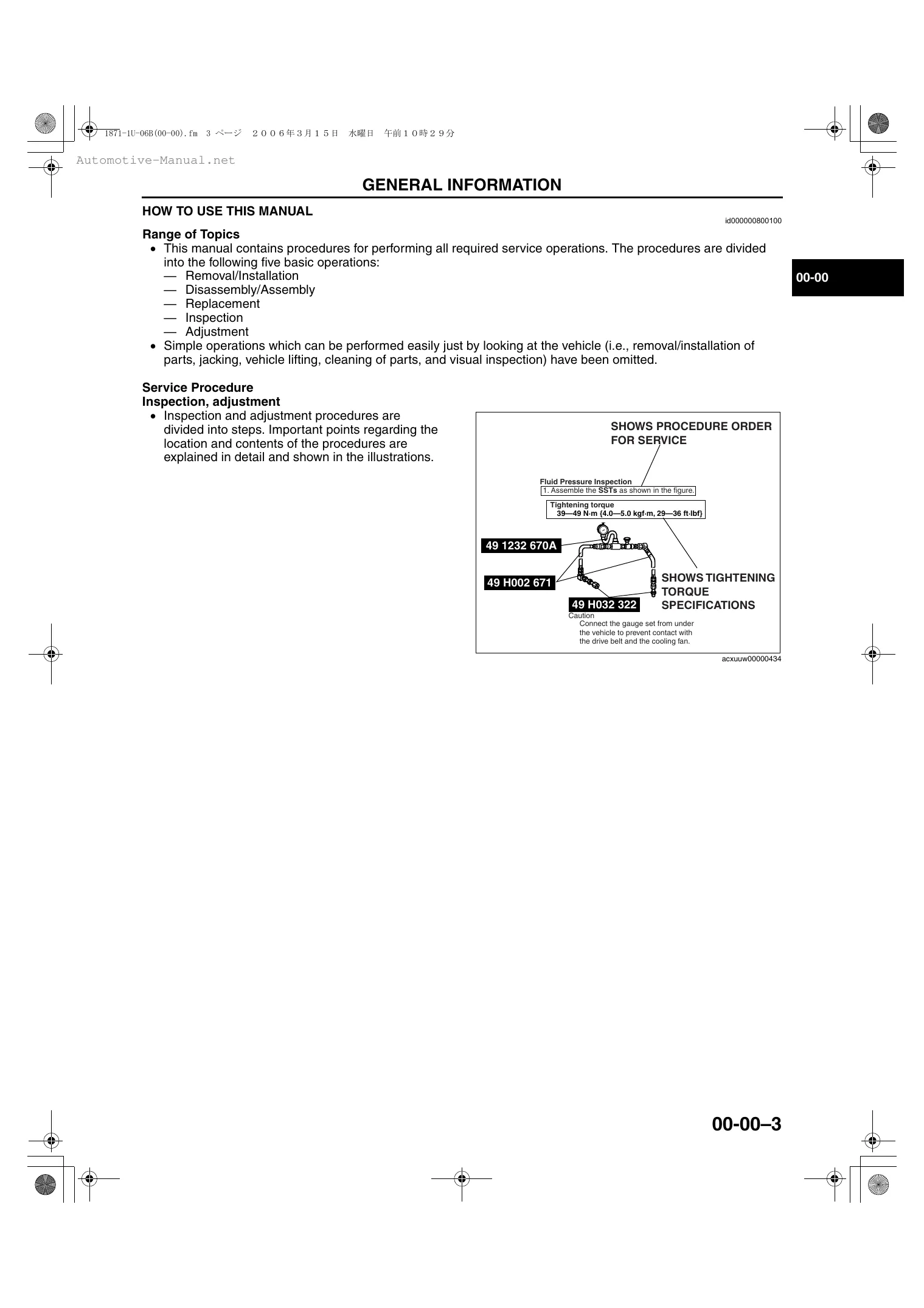

Factory reference data is placed with the related job: component-specific torque tables, fluid capacities, inspection limits, clearances, alignment data, automatic-transaxle pressure and operating tests, HVAC test specifications, and electrical values. Special-service-tool listings identify equipment such as engine support set 49 C017 5A0, transaxle oil-pressure gauge set 49 0378 400C, and air-bag deployment tool 49 H066 002.

During climate-control testing, Mazda warns that powering the air-mix actuator beyond its prescribed travel can damage the actuator circuit. The refrigerant section also specifies ATMOS GU10 compressor oil; substituting another PAG oil can damage the A/C compressor. Restraint-system work requires the battery-isolation and reserve-power precautions stated in the manual before connectors or modules are handled.

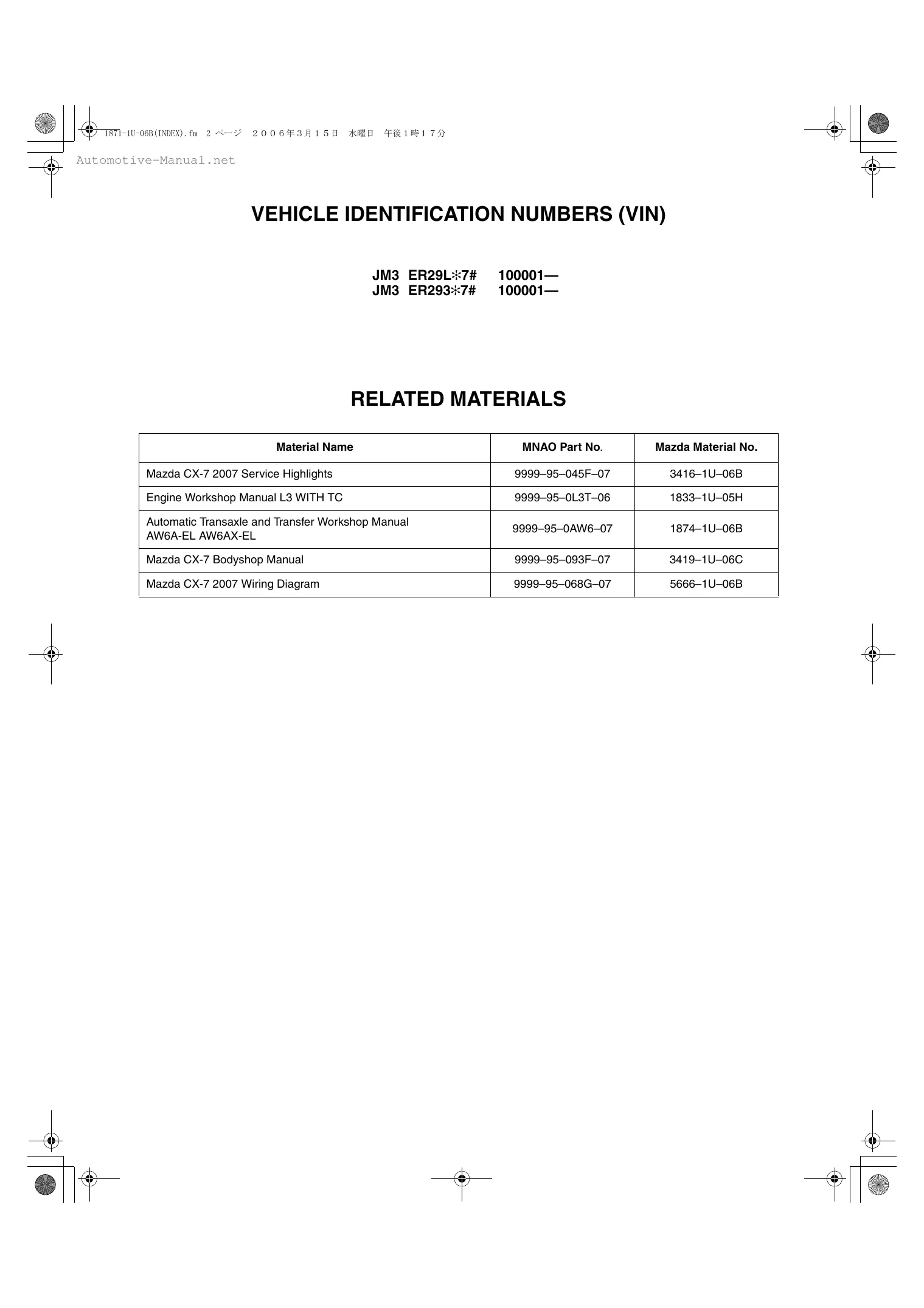

This is the main 2007 CX-7 workshop manual. Mazda lists separate publications for the L3 WITH TC engine, AW6A-EL/AW6AX-EL transaxle and transfer, bodyshop repairs, and the dedicated 2007 wiring-diagram volume. The system wiring diagrams contained here support diagnosis and repair, but they should not be mistaken for the separate complete wiring publication, P/N 9999-95-068G-07.
