John Deere 140 Hydrostatic Tractor Service Manual (P/N SM-2093)

Deere & Company Service Manual P/N SM-2093 (Jul-73) covers the John Deere 140 Hydrostatic Tractor, Serial No. 30,001 and higher, including H-1 and H-3 hydraulic configurations.

PDF Search, Section Bookmarks, and Page Count

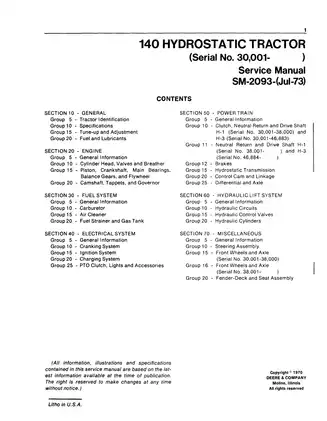

Search and diagram detail: OCR text search is available, although recognition errors can affect individual characters. Embedded bookmarks open the contents and seven main sections. Small labels in the wiring and hydraulic diagrams are readable when enlarged.

One printable, English-language PDF contains 227 pages, including one added cover page and 13 original blank pages.

Engine, Hydrostatic Drive, and Hydraulic-Lift Service

The following selected coverage highlights outline the main workshop topics rather than reproduce the complete contents. Further subjects include lubrication service and fender-deck and seat repairs.

• Engine repair: Kohler K321AS diagnosis, removal, internal inspection, cylinder-head and valve work, piston and crankshaft service, balance-gear timing, and reassembly.

• Fuel system: Carter carburetor disassembly, cleaning, float and valve inspection, installation, and mixture adjustment, plus standard and heavy-duty air-cleaner service.

• Power train: Serial-specific clutch, neutral-return, drive-shaft, and brake repair, with hydrostatic pressure tests and step-by-step transmission disassembly and reassembly procedures.

• Differential and axle: Axle-shaft, hub, seal, and bearing service; differential overhaul; pinion-depth measurement; shim selection; backlash adjustment; and tooth-contact checks.

• Hydraulic lift: H-1 single-spool and H-3 three-spool circuits, control-valve repair, hydraulic coupler service, and rockshaft-cylinder leakage testing and replacement.

• Electrical diagnosis: Tractor wiring diagram, cranking and charging tests, ignition timing, safety-switch checks, starter repair, electromagnetic PTO clutch testing, lighting, and accessories.

• Steering and chassis: Ross steering-gear repair, early and late front-axle service, applicable wheel-bearing adjustments, toe-in settings, and component-specific service specifications.

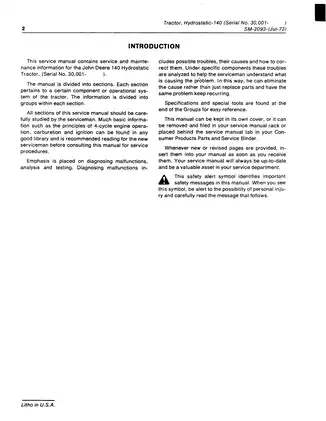

This manual is suited to mechanics familiar with four-cycle engines, carburetion, and ignition; its electrical tests also require appropriate shop test equipment.

Serial-Specific Repair Coverage

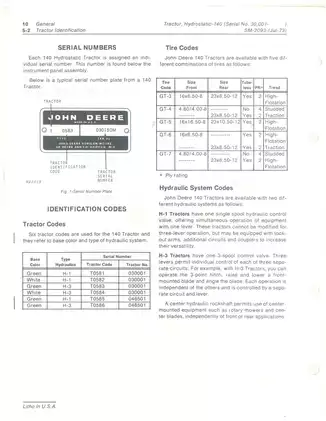

H-1 tractors use a single-spool hydraulic control valve; H-3 tractors use a three-spool valve with independently controlled circuits. The early clutch chapter applies to H-1 tractors through Serial No. 38,000 and H-3 tractors through 46,883. Later neutral-return and drive-shaft coverage begins at 38,001 for H-1 and 46,884 for H-3.

Brake differences: H-1 tractors numbered 38,001–46,603 use a combined neutral-return and brake pedal operating the right rear brake. Earlier and later H-1 tractors, and the covered H-3 tractors, have individual rear-wheel brakes.

Front-axle and charging-system changes are separated at Serial No. 38,001. PTO clutch arrangements are divided into 30,001–30,275, 30,276–46,500, and 46,501 and higher. These distinctions help match the tractor to the correct component arrangement, test, and adjustment procedure before teardown.

Engine Diagnosis and Internal Repair

Diagnosis starts with spark, compression, and crankcase-vacuum tests, followed by symptom-and-cause checks for hard starting, power loss, overheating, oil consumption, surging, and excessive vibration. The K321AS cutaway on PDF p. 18 identifies the internal assemblies.

Valve and seat analysis, guide and insert replacement, spring testing, breather service, and cylinder-head inspection are covered in detail. Cylinder-head, valve, and breather work can be performed without removing the engine.

Internal overhaul extends to piston and ring analysis, connecting-rod and crankshaft inspection, cylinder deglazing or boring, main bearings, oil seals, camshaft, tappets, governor, and automatic compression release.

Balance-gear timing and end-play procedures are provided with and without the JDST-3 tool; incorrect timing is associated with excessive vibration. The breather section warns that a reversed plate can pump oil out and cause engine damage.

Carburetor and Air-Cleaner Service

The Carter carburetor section explains float setting, matched float-valve and seat replacement, and coordinated high-speed and idle-mixture adjustment. Solvent-cleaning instructions address the small passages without altering their dimensions.

Standard and heavy-duty air cleaners receive separate service instructions. Fuel-strainer and gas-tank cleaning are also covered.

Hydrostatic Transmission and Final Drive

The hydrostatic oil-flow diagram on PDF p. 149 and transmission components view on PDF p. 153 support the pressure-test and overhaul sections. Internal coverage includes the charge pump, axial-piston pump and motor, slipper retainers, valve plates, swashplates, check and relief valves, trunnion shafts, bearings, and seals.

Pistons and cylinder blocks are matched sets. Valve plates, swashplates, backup rings, and relief springs have specified positions. Reusing a bent slipper retainer can bind the pistons and score the cylinder block.

Control-cam and linkage adjustments address forward or reverse creep. Differential setup includes pinion-depth measurement and shim selection, supported by ring-gear and pinion contact-pattern illustrations on PDF p. 182.

Hydraulic Circuits and Repair Limits

H-1 and H-3 circuit drawings on PDF p. 190 show the rockshaft cylinder, front couplers, and control valves. Further drawings cover optional rear couplers, cylinder lock-out arrangements, and line routing.

Both valve configurations have removal, disassembly, inspection, assembly, and installation instructions. Spools are fitted to their valve bodies; a damaged spool or body requires replacement of the complete valve.

Cylinder and coupler limits: The welded rockshaft cylinder is leakage-tested and replaced as an assembly. Coupler service covers external sealing; internal ball checks and seats are factory-repair components.

Electrical Tests, Steering, and Shop Equipment

The tractor wiring diagram on PDF p. 84 identifies wire colors, switch connections, and serial-specific charging and PTO arrangements. Tests cover the battery, cables, key switch, solenoid, neutral-start and PTO switches, starter armature, ignition coil, condenser, alternator stator, and rectifier-regulator.

Starter repair covers brushes, end cap, armature, and drive assembly. The permanent-magnet field is not separately serviceable. PTO clutch coverage includes field-coil testing and rotor-and-pulley bearing replacement, plus lighting, ammeter, circuit-breaker, and accessory checks.

Ross steering service includes gear inspection, alignment, cone adjustment, and toe-in setting. Early front wheel bearings have an adjustment procedure; the later design requires no bearing adjustment.

Listed equipment includes the JDST-3 balance tool, Dwyer Model 1211-24 manometer, and Neway No. 102S valve-seat cutter kit. Axle and differential work calls out the JDST-9 seal-aligning sleeve, JDST-10 pinion-depth tool, and OTC 967 hub-and-drum puller. Group-end references supply torque data, clearances, wear limits, and fluid information.

Relieve hydraulic pressure before opening hoses or couplers, and securely support the engine or transmission-and-axle assembly during removal. Rotating PTO and transmission-fan components, battery circuits, and heavy assemblies require appropriate shop precautions.

Examples of Hydraulic Test and Differential Setup Data

The implement-circuit test specifies 500 psi ± 50 psi at the front hydraulic outlets with the hydraulic lift lever fully actuated. The separate charge-pressure test specifies 75–110 psi at half throttle; the manual identifies this test as necessary when relief valves have been changed.

Differential setup specifies ring-gear-to-pinion backlash of 0.003–0.007 inch, alongside dial-indicator measurement, shim selection, and tooth-contact evaluation.
