Comprehensive Yamaha CS340, CS340E Ovation Snowmobile Service & Repair Manual, covers 1989-1990
Product Gallery
Sample pages from the Comprehensive Yamaha CS340, CS340E Ovation Snowmobile Service & Repair Manual, covers 1989-1990 manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 28860 / Lisa Miller
- File Size:
- 21.74 MB
- File Type:
- Language:
- English
- Pages:
- 218
- Printable:
- Yes
- Estimated Download Time:
- 0.45 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Snowmobile
- Brand:
- Yamaha
- Reviewed and Approved:
- Dec 31, 2025
Yamaha Models and Parts Covered in this Snowmobile Manual
- Yamaha CS340 Ovation (1989-1990)
- Yamaha CS340E Ovation (1989-1990)
Complete Manual Information
Yamaha CS340, CS340E Ovation Service Manual - 1989-1990
Engineered for precision maintenance, this factory-authorized service manual provides the foundational engineering data required for the 81E-series chassis. Proper application of the specified Esso-Beacon 325 grease or Aero Shell Grease #7 on critical bearing surfaces ensures low-temperature component mobility and prevents premature catastrophic failure in extreme sub-zero environments. Technical professionals utilize these specific lubricant standards to maintain factory-grade reliability and operational uptime.

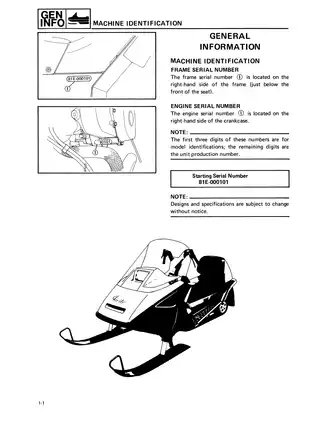

Technical Applicability & Machine Identification
Production Series: 81E Chassis Configuration
- Yamaha CS340 Ovation (1989–1990): Standard manual start configuration utilizing the 337cc fan-cooled powerplant.
- Yamaha CS340E Ovation (1989–1990): Electric start variant featuring integrated charging system specifications.
Operational Advantages & Service Integrity
- Factory-validated clearance tolerances ensure engine rebuilds meet original equipment manufacturer (OEM) performance benchmarks.
- Detailed electrical schematics facilitate rapid diagnostic isolation of ignition and lighting circuit faults to minimize downtime.
- Step-by-step disassembly procedures prevent accidental component damage during complex driveline and suspension overhauls.
Document Specifications
- Manual Type: Service / Workshop Manual
- Page Count: 175 Pages
- System Requirements: PDF Reader
- Navigation: Chapter-indexed with illustrated thumb tabs
Technical Depth & Factory Benchmarks
Engine performance is regulated through rigorous calibration standards, including a specified idle speed of 1,600 r/min. Precision measurement data covers every internal component, such as the cylinder bore diameter of 60.00 mm and a piston-to-cylinder clearance range of 0.045–0.050 mm. These benchmarks allow technicians to verify wear limits and ensure the 337cc engine operates within its designed thermodynamic envelope.
Visual Navigation & Schematic Architecture

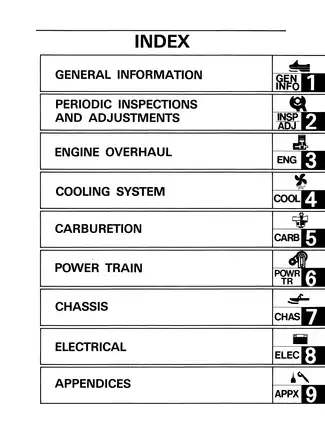

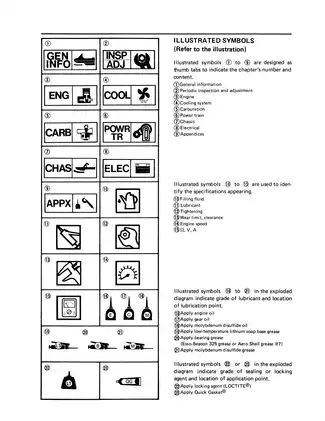

Illustrated symbols and thumb tabs categorize the documentation into nine distinct functional zones, ranging from engine architecture to electrical distribution. Exploded view diagrams utilize a standardized legend to identify specific lubrication points, requiring either engine oil, gear oil, or molybdenum disulfide grease depending on the mechanical load and friction requirements of the assembly.

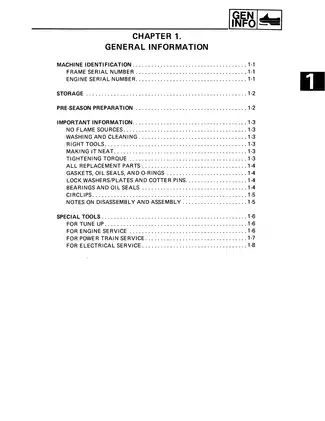

Table of Contents
- General Information
- Periodic Inspection and Adjustment
- Engine
- Cooling System
- Carburetion
- Power Train
- Chassis
- Electrical
- Appendices
Operational Limits & Fluid Specifications
- Spark Plug Type: NGK BR8HS / Champion QL82YC
- Spark Plug Gap: 0.6–0.7 mm (0.024–0.028 in)
- Transmission Lubricant: SAE 75W or 80W GL-3 Gear Oil
- Chaincase Capacity: 250 cm³ (8.8 Imp oz, 8.5 US oz)
- Primary Compression Ratio: 6.5:1
- Cylinder Head Torque: 25 Nm (2.5 m·kg, 18 ft·lb)
Download Instructions for Yamaha Snowmobile Manual
Frequently Asked Questions - Yamaha Snowmobile Manual
Is this manual suitable for beginners?
Yes, this Yamaha manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Snowmobile maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (21.74 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Yamaha Snowmobile manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
