Honda VT500C 1983–1984 Factory Service Manual (P/N 67MF500)

Honda's 1983 VT500C Custom factory shop manual, P/N 67MF500, identifies the base model as VT500C D. Regional coverage uses the F, G, ED, IT, and SW type codes. This file contains the base manual; no later-model supplement is included.

PDF Access, Languages, and Wiring Detail

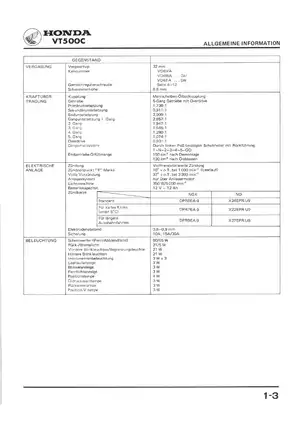

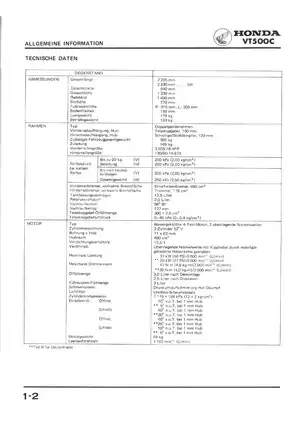

Search and diagram detail: PDF text search and embedded bookmarks are not available. Small labels in the main wiring diagram require zooming, and the finest lettering remains soft. That sheet uses German/Spanish labels.

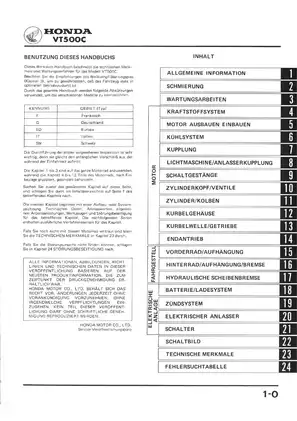

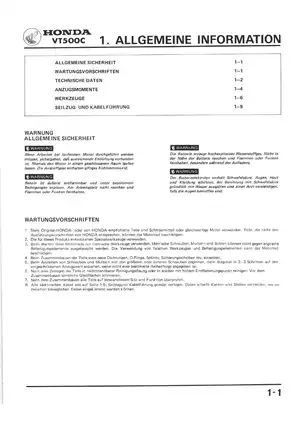

One printable PDF contains 520 pages, including the two original covers, the introductory contents page, and 17 illustrated section openers. English procedure pages are paired with French/German translations; section contents pages and several reference charts are German-labeled.

V-Twin Repair, Shaft Drive, and Electrical Diagnosis

These selected topics outline part of the workshop coverage. Other documented work includes headlight and instrument service.

• Fuel and lubrication: Downdraft carburetor removal, vacuum- and float-chamber service, pilot-screw adjustment, synchronization, oil-pressure testing, and oil-pump disassembly and inspection.

• Engine repair: Engine removal and installation, camshaft and valve work, cylinder and piston inspection, crankcase separation, and crankshaft and connecting-rod service.

• Clutch and drivetrain: Clutch inspection, transmission disassembly, shift-fork and shift-drum work, output-gear service, and shaft-final-drive setup.

• Cooling system: Pressure testing, coolant replacement, thermostat inspection, radiator and fan service, and water-pump inspection and replacement.

• Chassis and suspension: Wheel and bearing service, front-wheel balancing, fork overhaul, steering-stem bearings, rear shock-absorber spring service, and swingarm repair.

• Brake service: Front hydraulic brake bleeding, pad and disc inspection, master-cylinder repair, caliper overhaul, and rear drum-brake service.

• Electrical troubleshooting: Charging and ignition tests, starter-motor and relay checks, clutch-diode testing, switch and sensor checks, wiring diagrams, and symptom-based fault charts.

Its engine-out procedures, precision inspection work, bearing-selection tables, and special-tool requirements make it suited to professional technicians and experienced owners equipped for advanced mechanical repair.

Internal Engine and Transmission Work

The engine chapters cover cam-chain inspection, valve-guide replacement, valve-seat inspection and refacing, cylinder-head assembly, cam timing, and valve adjustment. Cylinder and piston procedures add bore, ring, and oil-jet inspection.

Crankshaft repair includes color-coded bearing selection with Plastigauge confirmation. Transmission coverage continues through gear and bushing inspection, shift components, output-drive gears, bearing replacement, and reassembly. The technical-features section explains the offset dual-pin crankshaft.

Carburetors, Lubrication, and Cooling

Regional specifications distinguish the Germany Type B engine specification and carburetor IDs VD6VA, VD6WA (G II), and VD6TA (SW).

The fuel chapter identifies the No. 1 carburetor as the synchronization base and documents the idle-drop adjustment method. Pilot screws are factory preset and normally removed only during carburetor overhaul. Fuel-tank vacuum-valve checks, the air-cleaner case, and crankcase ventilation receive separate treatment.

Oil-pump assembly drawings and carburetor chamber views support the component procedures. Oil-pump removal requires crankcase separation; water-pump removal requires the engine out of the frame. A leaking water-pump mechanical seal calls for pump-assembly replacement.

Shaft-Drive Setup and Chassis Repair

Final-drive service extends to pinion and ring-gear bearings, preload, backlash, spacer selection, and tooth-contact correction. Contact-pattern charts connect the inspection results with the required setup changes, supporting assessment after gear or bearing replacement.

Chassis illustrations include a front-fork exploded assembly. The procedures address fork seals and bushings, steering-bearing races, shock springs, swingarm pivots, and brake-component inspection. Tubeless-tire repair is referred to a separate Honda manual.

During final-drive installation, the manual specifically cautions against damaging the drive-shaft oil seal.

Electrical Fault Isolation

Cable-and-harness routing views complement charging and starter-circuit diagrams and the full wiring sheet, 0030Z-MF5-6100. Ignition diagnosis treats the two cylinder subsystems separately, while switch tests cover continuity and operating positions.

Temperature-sensor and gauge checks, the fan thermoswitch, and the brake/tail-light sensor have dedicated procedures. Holding the temperature-sensor lead grounded during gauge testing can damage the gauge.

Closing fault-isolation charts address hard starting, power loss, poor low- and high-speed performance, and handling complaints.

Factory Tools and Inspection Data

Tool references include float-level gauge 07401-0010000, vacuum-gauge adapter 07510-3000100, valve-spring compressor 07757-0010000, and shaft holder 07924-ME50000. Reference data includes component-specific torques, inspection standards, service limits, clearances, fluid capacities, and electrical test values.

Fuel-system work requires strong ventilation and strict control of flames or sparks. Cooling service requires a cold system, and engine removal calls for a stable adjustable lift.

Preview: Thermostat Tests and Final-Drive Clearances

Thermostat inspection: The cooling chapter specifies an opening range of 80–84°C and a minimum valve lift of 8 mm after five minutes at 95°C. The opening check and heated lift test have separate acceptance criteria.

Final-drive inspection: Standard ring-and-pinion backlash is 0.08–0.18 mm, with a service limit of 0.30 mm. The chapter pairs these measurements with tooth-contact checks and spacer-selection guidance.
