John Deere Models Covered & Key Technical Specifications

Models: 2750 (CS — engine 4239TL-04; TSS — engine 4239TL-05), 2755 (CS — engine CD4239TL005; TSS — engine 4239TL009), 2855N (engine 4239TL008), 2955 (TSS — engine CD6359DL009)

Sub-models / Variants: CS (Collar Shift), TSS (Synchronized Transmission), High-clearance tractors (2755, 2955), Hi-Lo shift unit or Creeper transmission (where equipped)

Model Years: 1980–2000 (1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)

Serial Numbers: Early 2750 MFWD axle: before SN 583 919 L (APL-345); Late 2750 MFWD axle: after SN 583 918 L (APL-735). Other MFWD axle applications: 2755 — APL-735; 2855N — APL-325N; 2955 — APL-350.

MFWD clutch serial breaks: 2755 and 2955, excluding high-clearance tractors: before 655825 / after 655824; 2755 and 2955 high-clearance tractors: before 646531 / after 646530; 2855N: before 654696 / after 654695.

Hydraulic clutch linkage serial breaks: 2755 and 2855N: before SN 620 388L / after SN 620 387L; 2955: before SN 617 793L / after SN 617 792L.

Brake pedal adjustment serial break: All models: before 623 079L / after 623 078L.

Engine serial breaks: Saran-built turbocharged engines in 2750, 2755 and 2855N, piston-skirt clearance: before CD600000 / after CD599999. Intake-camshaft specifications for four-cylinder engines: before SN CD656457 or TO133255 / after SN CD656456 or TO133254; for the six-cylinder 2955: before SN CD656606 or TO134869 / after SN CD656605 or TO134868.

Wiring serial breaks: W1–W3, without Sound Gard Body or Roll Over Protection: before 637100L / beginning at 637100L; W4–W5, GP models without Sound Gard Body or Roll Over Protection: before 671800L / beginning at 671800L; W6–W7, with Sound Gard Body or Roll Over Protection: before 645 249L / after 645 248L.


  • Engine displacement: 3.92 L (239 cid) for 2750, 2755, 2855N; 5.88 L (359 cid) for 2955

  • Compression ratio: 17.8:1

  • Engine idle speeds: Low idle 700–850 rpm; High idle 2410–2660 rpm

  • Firing order: 1-3-4-2 (4-cylinder); 1-5-3-6-2-4 (6-cylinder)

  • Max PTO power: 56 kW (75 Hp) to 63 kW (85 Hp) depending on model

John Deere Manual Features & Selected Content Preview

The I&T Shop Manual (P/N JD-59) covers repair of John Deere 2750, 2755, 2855N, and 2955 tractors, with model-specific procedures for the engines, transmissions, axles, and hydraulic systems.

PDF Search, Bookmarks, and Page Details

Search and drawing detail: An OCR text layer supports searches through the main service text and wiring legends, but recognition errors and image-based labels limit some results. Five generically named bookmarks provide broad entry points rather than chapter navigation. Small wire-color codes and connector labels in the detailed wiring diagrams require zooming.

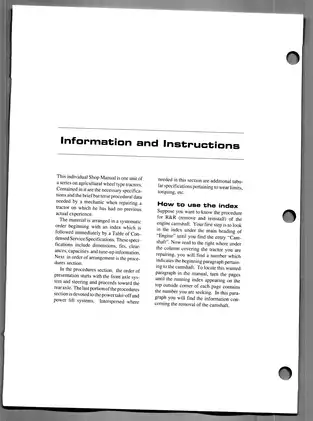

One printable PDF in English, 108.07 MB. The 152-page PDF includes the front cover, one blank page, the internal title and reader instructions, four notes pages, and two repeated pages: printed pages 19 and 42.


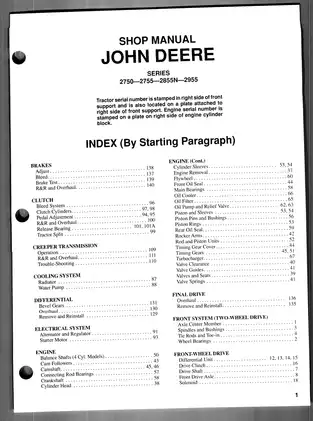

Engine, Drivetrain, and Hydraulic Repair Coverage

This is a selection of the manual's contents; further topics include fuel-filter and water-trap service.

  • Engine and fuel system: Engine removal and internal repair, cylinder-head and valve service, timing-gear alignment, piston-and-sleeve work, turbocharger service, and fuel-nozzle testing.

  • Front axles and MFWD: Two-wheel-drive axle service and ZF front-drive repair, including planetary hubs, steering knuckles, drive shafts, differentials, clutch overhaul, solenoid service, and pressure/leakage tests.

  • Clutch and transmissions: Clutch adjustment and bleeding, tractor splitting, LUK clutch overhaul, Hi-Lo testing, Creeper repair, and separate Collar Shift and synchronized-transmission procedures.

  • Brakes, final drives, and PTO: Differential and planetary final-drive setup, hydraulic wet-brake diagnosis, parking-brake repair, independent PTO clutch/brake overhaul, and front PTO service.

  • Steering and hydraulics: Mechanical-link power steering and Char-Lynn hydrostatic steering, main-pump testing, rockshaft and load-control adjustment, selective-control valves, breakaway couplers, and remote cylinders.

  • Electrical diagnosis and references: Bosch alternator and starter testing, six indexed troubleshooting sections, wiring diagrams W1–W10, exploded views, and component-specific service specifications.

Written for experienced mechanics, this manual uses concise procedures and assumes familiarity with workshop repair and test equipment.

Engine, Injection, and Cooling Work

The four-cylinder engines are turbocharged direct-injection diesels; the six-cylinder engine is naturally aspirated.

Step-by-step procedures cover cylinder-head removal and wet-sleeve replacement, including packing-ring inspection. Further internal work includes rocker arms, cam followers, camshaft and balance-shaft timing, piston pins, connecting rods, crankshaft bearings, oil seals, the oil pump, relief valves, and oil cooler.

Timing illustrations reference JD-254 for gear alignment; the text identifies JDE-81-4 for TDC location and JDE-83 for engine rotation.

Fuel-system scope: Nozzle diagnosis includes opening-pressure, spray-pattern, seat-leakage, and back-leakage tests, followed by overhaul information. The Roto-Diesel or CAV/Lucas injection-pump section covers removal, installation, timing alignment, speed setting, and field adjustments; it is not an internal pump-rebuild section. Pump removal references JDG535/KJD10108.

AiResearch/Garrett turbochargers receive inspection and overhaul coverage. Further K.K.K. disassembly is directed to authorized service stations with the necessary parts and equipment.

Cooling coverage includes radiator removal, water-pump overhaul, and thermostat specifications.

Axle and Transmission Configuration Differences

The ZF axle applications and serial breaks distinguish the applicable hub, planetary, and differential procedures. The MFWD clutch's disc quantity and spacer arrangement also depend on model, serial range, high-clearance equipment, and front-PTO configuration. These distinctions matter before ordering parts or assembling the clutch pack.

The synchronized-transmission section separates center-shift tractors without a Sound Gard Body from console-shift tractors with one. Shaft and gear procedures include bearing preload, gear mesh, and backlash adjustment. Hi-Lo coverage extends to the control and pressure-regulating valves, automatic downshift testing, and internal clutch/brake inspection; Creeper coverage includes its synchronizer and shift linkage.

Clutch-cylinder caution: On hydraulic-clutch models, the cylinders require DOT 4 brake fluid; contact with oil or grease damages the seals. Spring-loaded clutch-pack work references JDT-24A.

Steering and Hydraulic Fault Isolation

Mechanical-link power steering has separate diagnosis from the hydrostatic system. The hydrostatic sections cover steering-valve leakage, safety-valve testing, priority-pressure control, and the applicable single- or double-acting cylinders.

The hydraulic tests connect transmission-pump performance with main-pump operation. Because the transmission pump supplies charging oil to the main pump, the diagnostic guidance helps distinguish a supply problem from a main-pump fault.

Both 23 cc and 40 cc main pumps receive overhaul coverage. Rockshaft housing, cylinder and valve repair lead into load-sensing service; remote-hydraulic sections distinguish spool- and poppet-type selective-control valves. Special-tool references include JDH-15C for selective-control-valve adjustment and JDH-19B for early 40 cc pump setup.

Pump-housing caution: Early and late 40 cc stroke-control housings share a bolt pattern, but their high-pressure passages do not align; interchanging them can damage the pump and create a pressure hazard.

Brake and PTO Diagnosis

The wet-brake leak-down tests distinguish pressure-ring seal leakage from brake-control-valve faults. Parking-brake procedures separate the 2955 arrangement from the other models.

Independent PTO testing checks for unwanted pressure overlap between the clutch and brake circuits. Front-PTO coverage extends to the modulation mechanism, clutch and brake components, and operating solenoid.

Illustrations, Wiring, and Workshop References

The publication runs through Fig. 205. Examples include the APL-735 planetary-hub exploded view, MFWD clutch Belleville-spring section, timing-gear alignment views, Hi-Lo sectional and exploded views, main-pump flow and standby-pressure test connections, and the selective-control-valve adjustment layout.

The wiring section separates early and late dash harnesses, GP harnesses, Sound Gard and Roll-Over Protection configurations, body harnesses, and transmission wiring by the applicable serial breaks.

Metric and U.S. Customary reference data covers component torques, fits and clearances, wear limits, bearing preloads, gear backlash, hydraulic pressures, capacities, spring tests, tune-up data, and electrical test values.

Tractor splitting, axle removal, and hydraulic testing require stable stands, controlled lifting, and released system pressure. The MFWD service warning explains that loss of electrical power or transmission pressure can engage the front drive and pull a tractor off rear-wheel supports if the front wheels remain on the ground.

Bearing and Alternator Specification Examples

The condensed engine data lists a crankshaft main-bearing clearance of 0.03–0.10 mm for the covered models.

For Bosch alternator diagnosis, the manual specifies 4.0–4.4 ohms between the rotor slip rings and 0.4–0.44 ohms between any two stator leads.
