John Deere AMT600, AMT622 & AMT626 All Material Transporter Service Manual, 1987–1991 (P/N TM1363)
581 Pages • 1 Printable PDF (English) • Download
John Deere Models Covered & Key Technical Specifications
Models: AMT600, AMT622, AMT626
Model Years: 1987–1991 (1987, 1988, 1989, 1990, 1991)
Serial Breaks – AMT600: Axle bearings through S/N 018720 and from S/N 018721. Tailgate strap retrofit through S/N 18720. Brake caliper design change from S/N 18721. Throttle cable illustrations through engine S/N 018723 and from engine S/N 018724.
Serial Breaks – AMT600 Wiring: Standard schematic through S/N W00600X018720. Later standard schematic from S/N W000600X018721 as printed. Hydraulic dump and hourmeter schematic from S/N W00600X018721.
Serial Breaks – AMT622 / AMT626: AMT622 left brake cable routing before S/N 00-8012. AMT622/626 steering quadrant through S/N 004349. Later AMT626 steering quadrant from S/N 004350.
-
Engine: Kawasaki 4-cycle, single cylinder (AMT600: KF82D or FZ340D; AMT622/626: FE290D)
-
Horsepower: 6.3 kW (8.5 hp) for AMT600; 7.5 kW (10 hp) for AMT622/626
-
Displacement: 341 cc for AMT600; 290 cc for AMT622/626
-
Fuel Capacity: 18 L (4.75 gal)
-
Transmission: Belt-driven torque converter with gear-driven transaxle
-
Brake System: Mechanically operated disc
-
Drive System: Four driven rear wheels with differential lock
John Deere Manual Features & Selected Content Preview

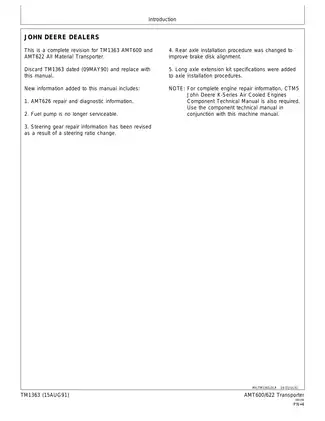

John Deere’s August 15, 1991 technical manual (P/N TM1363) covers the 1987–1991 AMT600, AMT622, and AMT626 All Material Transporters. This revision adds AMT626 repair and diagnostic information, revises steering gear service, and updates rear axle installation to improve brake disc alignment.

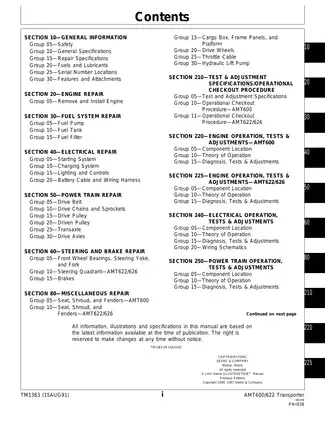

Search, Bookmarks, and Wiring Diagram Detail
Finding procedures and wire codes: Text search works across the repair and diagnostic chapters. The cover and some diagram pages have no searchable text. Embedded bookmarks lead to sections and individual procedures. Small wiring labels require zooming, and some faint wire codes remain hard to read at higher magnification.
The download is one printable English PDF with 581 pages, including the cover and 41 additional pages showing tiled portions of larger diagrams.
Engine Testing, Drivetrain Repair, and Chassis Service
These are selected procedures and diagnostic topics from the manual. Other examples include fuel filter replacement and battery load testing.
- Engine service: Engine removal and installation, symptom-based diagnosis, compression testing, valve clearance adjustment, and fuel pump testing.
- Transaxle repair: Step-by-step procedures for transaxle disassembly and reassembly, with internal inspection, differential lock and shifter service, and drive axle removal and installation.
- Clutches and chain drive: Drive pulley overhaul, driven pulley adjustment, belt alignment, drive chain tensioning, and full-upshift checks.
- Electrical diagnostics: Capacitor discharge ignition (CDI) tests, regulator-rectifier voltage checks, stator resistance tests, and wiring diagrams with circuit test points.
- Steering and brakes: Front wheel bearing, steering yoke, and fork service, plus steering quadrant inspection, mechanical disc brake service, and brake cable equalization.
- Hydraulic lift: Optional cargo box lift pump service, lift cylinder troubleshooting, hydraulic schematics, and pressure tests for the raise and lower relief valves.

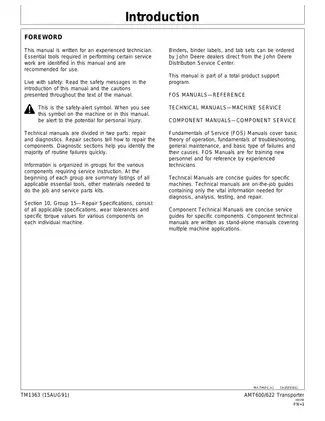

John Deere wrote this manual for experienced technicians and identifies the essential tools for specific service jobs.
Engine Diagnostics and Repair Scope
The KF82D and FZ340D in the AMT600 use splash lubrication. The FE290D in the AMT622 and AMT626 uses pressure lubrication, with separate oil pressure test setups for engines with and without the optional oil filter.
The AMT600 valve clearance procedure includes a tappet cap selection chart. FE290D diagnostics include an automatic compression release (ACR) check. Crankcase pressure and vacuum tests accompany adjustments for idle mixture, choke, and governor operation.
The Carburetor Float and Main Circuit diagrams explain fuel metering. Surging diagnostics include carburetor float checks, with an adjustment procedure for the AMT600. The manual gives fuel pump pressure and flow tests and calls for replacement if the non-serviceable pump fails testing.
Internal engine repair: The engine repair section covers removal and installation. Complete internal engine repair requires the separate CTM5 John Deere K-Series Air Cooled Engines Component Technical Manual, sold separately.
Transaxle, Clutch, and Axle Service
Transaxle inspection covers the input and intermediate shafts, differential, differential lock shaft, and case. The axle procedures distinguish installations with and without the axle update kit, including the AMT600 bearing change between S/N 018720 and 018721.
Variable-speed clutch teardown and reassembly distinguish working ramp shoes from backlash ramp shoes and identify the JDM4-A Salsbury Clutch Spring Tool. The full-upshift and driven-clutch spring torsion checks help diagnose slow acceleration and engine lugging.
Prying the pulley halves apart can damage the pulley surfaces or ramp shoes. The repair specifications include transaxle housing fastener torques, wear limits, adjustment data, and fluid capacities.
Steering, Brakes, and Hydraulic Lift
The steering quadrant procedures cover the AMT622/626 arrangement through S/N 004349 and the later AMT626 arrangement from S/N 004350. The brake section identifies the caliper design change, specifies matching cable styles on each machine, and covers separate equalizer adjustments for hand-lever and foot-pedal controls.
The Hydraulic Lift System Schematic and the Lift Cylinder Will Not Raise and Lift Cylinder Will Not Lower diagnostic charts cover the gear pump, shuttle valve, and check valves. Incorrect relief valve assembly can change the pressure setting and damage components.
Review the manual’s safety instructions before supporting the chassis, working beneath the cargo box, disconnecting the battery ground strap, or opening hydraulic lines.
Operational Checkout and Electrical Fault Tracing
The model-specific operational checkout directs starting, drive engagement, and braking symptoms to the relevant diagnostic groups. A technician can use those checks to narrow down which system needs testing before removing components.
AMT600 wiring coverage includes early and late schematics keyed to the serial breaks listed above. The AMT622/626 Electrical Schematic and AMT622/626 Wiring Harness drawings identify circuit connections and wire codes. The European Schematic—All Models covers additional lighting and signaling circuits. Separate schematics cover the optional hydraulic dump and hourmeter.
AMT600 CDI resistance charts and FE290D ignition coil and module tests help isolate ignition faults. Starter and wiring harness replacement procedures accompany circuit checks for shorts, opens, and poor grounds.
Sample AMT600 Ignition Test Values
For the AMT600’s KF82D and FZ340D engines, the CDI diagnostic procedures specify 58–72 ohms for the pulser coil and 333–407 ohms for the exciter coil. The manual lists separate specifications for the two coils so each reading can be checked against its own range.
