1982–1983 Honda GL500 / GL650 Silver Wing & Interstate Service Manual Set

This Honda service manual set covers the 1982–1983 GL500 and GL650 Silver Wing models, including Interstate versions. It combines the GL500 base shop manual with the 1982 GL500/Interstate and 1983 GL650/Interstate addenda from Honda Motor Co., Ltd.'s Service Publications Office.

• Engine repair: Engine removal, cylinder-head and valve service, piston and crankshaft inspection, bearing selection, and camshaft timing procedures.

• Clutch, transmission and shaft drive: Clutch overhaul, oil-pump inspection, gearshift-linkage service, transmission disassembly, and final-drive inspection and adjustment.

• Fuel system: Carburetor overhaul, vacuum-piston inspection, synchronization, pilot-screw adjustment, accelerator-pump checks, and fuel-valve diagnosis.

• Cooling system: Pressure testing, thermostat inspection, coolant replacement, water-pump mechanical-seal service, and GL650 electric-fan troubleshooting.

• Chassis and brakes: Pro-Link shock and linkage service, fork overhaul, steering-head bearings, hydraulic disc-brake repair, and rear drum-brake inspection.

• Electrical diagnosis: Alternator and regulator/rectifier tests, transistorized ignition checks, starter-motor overhaul, relay tests, wiring diagrams, and switch-continuity charts.

The overhaul sections suit experienced mechanics with precision measuring equipment, a hydraulic press, and the specified service tools.

Engine, Timing and Final-Drive Repairs

Cylinder-head work includes valve-guide replacement, valve-seat inspection and refacing, and rocker-arm checks. Crankshaft coverage adds color-coded bearing selection and Plastigauge inspection, supported by component-specific torque tables and wear limits. The Lubrication Diagram traces the engine's oil supply.

The GL500 cam-chain adjustment differs from the GL650 automatic tensioner covered in the addendum. Honda warns that substituting an ordinary bolt for the GL650 tensioner's special-pitch fastener can damage the engine-case threads.

Final-drive procedures distinguish pinion preload from complete-assembly preload and cover backlash, shims, and tooth-contact patterns. These checks help identify the source of gear noise before final-drive parts are replaced.

Carburetor Service and Fuel Diagnosis

Fuel-system coverage extends to vacuum cylinders, air cut-off diaphragms, float valves, and the fuel valve's vacuum-operated diaphragm. The GL650 supplement details its throttle-joint linkage and carburetor plenum arrangement.

The carburetor-separation notes explain how incorrect handling can damage the joint pipes, choke links, or accelerator-pump rod. Illustrated synchronization procedures and the Crankcase Emission Control System drawing support adjustment and breather-system service.

Water Pump, Radiator and Fan Testing

The manual distinguishes water-pump impeller service from mechanical-seal replacement, which requires engine removal and rear-cover removal. That distinction helps establish the scope of a coolant-leak repair before disassembly.

Cooling-system sections include radiator-cap testing and thermostat checks. The GL650 addendum covers its electric fan motor and thermostatic-switch diagnosis. Follow the factory precautions for hot, pressurized coolant.

Pro-Link Suspension, Brakes and Interstate Equipment

Shock service includes oil-seal replacement and linkage-bushing inspection; steering coverage includes bearing-race replacement. Brake sections detail master-cylinder and caliper overhaul, pad and disc inspection, and hydraulic bleeding.

For the base GL500's COMSTAR wheels, damaged spokes, rims, or hubs require complete-wheel replacement. Tubeless-tire repair procedures are referred to a separate Honda manual. Interstate accessory coverage includes fairing and bracket removal, windshield adjustment, and headlight aiming.

Electrical Tests and Wiring References

Ignition-coil inspection distinguishes units with and without the “S” mark and specifies different test arrangements. Charging-system checks cover stator continuity and regulator/rectifier operation; starter-clutch service is documented with the flywheel and rear-cover work.

Visual references include Cable and Harness Routing, the Battery Charging Diagram, and ignition and starter circuit drawings. Separate wiring diagrams cover standard and Interstate configurations, with the model-year addenda providing their corresponding electrical layouts.

A Preview of Valve and Carburetor Settings

These are a few of the adjustment specifications included in the manual.

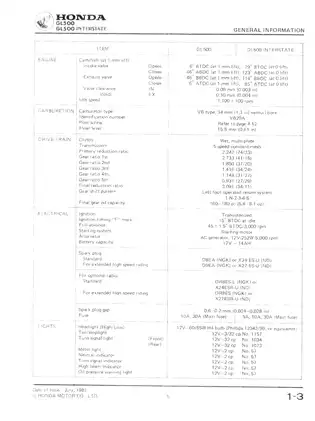

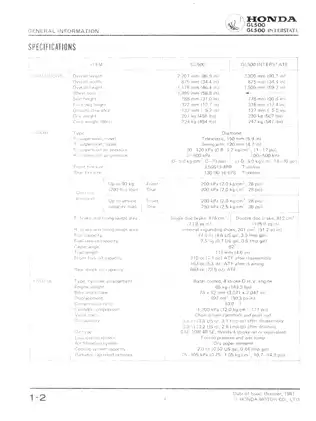

Cold valve clearances for the GL500 are 0.08 mm intake and 0.10 mm exhaust. The GL650 addendum specifies 0.10 mm intake and 0.12 mm exhaust, also with the engine cold.

For the GL500's VB29A carburetors, the float-level section specifies 15.5 ± 1 mm with the float tip just contacting the float valve and the carburetor inclined 15–45° from vertical.

Bookmarked PDF and Wiring-Diagram Readability

Navigation and small labels: Embedded bookmarks link to the main sections and addendum subsections. PDF text search is not available. Small wiring labels require zooming; some lettering in the GL650 Interstate diagram remains faint or incomplete when enlarged.

One printable, English-language PDF contains 336 pages in total:

The counts already include the opening pages and 10 memo pages.
