Honda CBR600F4i 2001–2003 OEM Service Manual
490 Pages • Printable PDF • 104.41 MB • Download
Honda Models Covered & Key Technical Specifications
Model: CBR600F4i
Sub-models / Variants: California type, 49 States/Canada type
Model Years: 2001–2003 (2001, 2002, 2003)
-
Engine displacement: 599 cm³
-
Engine type: 4-cylinder in-line, 4-stroke, DOHC, liquid-cooled
-
Compression ratio: 12.0:1
-
Idle speed: 1,300 ± 100 rpm
-
Fuel system: PGM-FI (Programmed Fuel Injection)
-
Fuel tank capacity: 18.0 liters (4.76 US gal)
-
Transmission: 6-speed, constant mesh
-
Clutch type: Multi-plate, wet
-
Ignition system: Computer-controlled digital transistorized
Honda Manual Features & Selected Content Preview

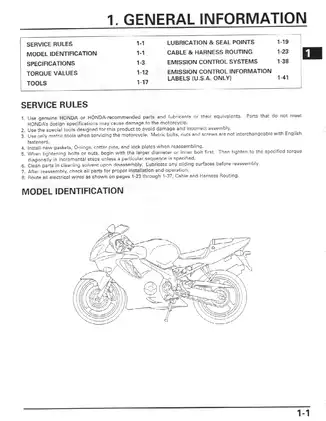

Honda factory service manual for the 2001–2003 CBR600F4i, with separate information for the 49-state/Canada and California types.
PDF Bookmarks and Wiring Diagram Detail
Search, navigation, and diagram labels: PDF text search is not available. Embedded bookmarks provide access to chapters and many individual procedures. Small connector numbers and wiring color codes in the detailed diagrams require zooming.

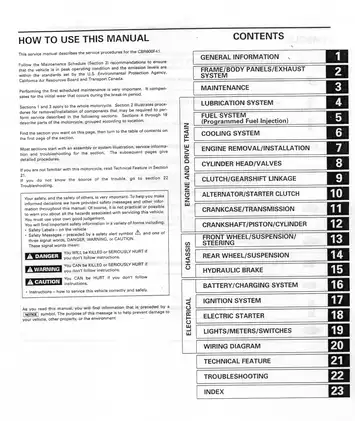

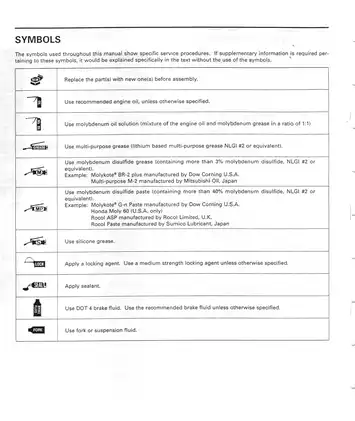

One printable 490-page PDF, including one cover page, two introductory pages, and seven memo pages. The manual contains 22 technical sections and an index.
PGM-FI Diagnosis, Engine Service, and Chassis Repair
The selected topics below show the manual’s main service areas. Other material includes body-panel and exhaust-system removal and an explanation of fuel-reserve trip-indicator operation.
-
PGM-FI diagnosis: MIL self-diagnosis, fuel-pressure and flow testing, pump and relay checks, injector service, starter-valve synchronization, and ECM/sensor fault isolation.
-
Engine and drivetrain: Engine removal and installation, cylinder-head and valve service, camshaft timing, clutch repair, crankcase separation, transmission service, and crankshaft/piston inspection.
-
Lubrication and cooling: Oil-pressure testing, oil-pump inspection, cooling-system pressure checks, coolant replacement and bleeding, thermostat testing, radiator removal, and water-pump replacement.
-
Wheels and suspension: Front and rear wheel service, fork disassembly and setup, steering-stem bearings, rear-shock inspection, suspension-linkage service, and swingarm removal.
-
Hydraulic brakes: Fluid replacement and bleeding, pad and disc inspection, front and rear master-cylinder overhaul, caliper disassembly and inspection, and brake-pedal setup.
-
Electrical repair: Battery and charging tests, direct-ignition diagnosis, starter-motor service, lights, meters, switches, harness routing, diagnostic charts, and the motorcycle wiring diagram.
-
Maintenance and specifications: Scheduled service, valve-clearance adjustment, drive-chain replacement, control adjustments, torque tables, fluid data, wear limits, clearances, lubrication points, and special-tool references.
The depth of the electrical tests, special-tool requirements, and internal engine procedures makes the manual suited to experienced motorcycle technicians and mechanically qualified owners working in a properly equipped shop.
Fuel Injection and Regional Equipment
MIL failure-code charts connect symptoms with component, wiring, and ECM tests. These checks help distinguish a sensor or injector fault from a connector or harness problem before parts are replaced.
The diagnostic material covers MAP, IAT, ECT, TP, bank-angle, and cam-pulse inputs, along with engine-stop relay tests and ECM power and ground checks. Fuel-delivery procedures address the tank, pump, fuel cut-off relay, filter, injectors, and pressure regulator.

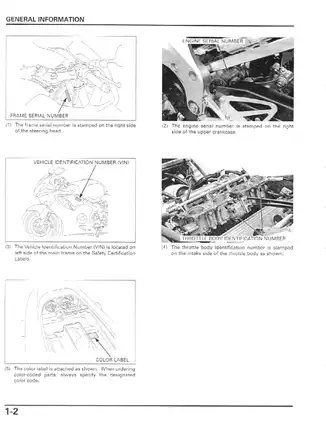

Throttle-body identification: The 49-state/Canada specification uses GO90C; the California specification uses GO90B. Service material also covers the fast-idle wax unit and starter valves.
PAIR-system checks are included. California-only material addresses the evaporative-emissions system, purge-control solenoid valve, oxygen sensor and heater, and catalyst-related exhaust information.
The throttle bodies are factory preset: disturbing the white-painted screws can upset synchronization, while carburetor cleaner can damage the molybdenum-coated bores.
Cylinder Head, Crankshaft, and Transmission
Step-by-step procedures cover valve-guide replacement, valve-seat inspection and refacing, camshaft installation, and timing checks. Camshaft service can be performed with the engine installed; cylinder-head service requires engine removal.
Lower-end coverage includes shift forks and drum, transmission shafts and gears, crankshaft and connecting-rod bearings, pistons, rings, and cylinders. Color-coded select-fit bearing tables support replacement selection; incorrect bearing oil clearance can cause major engine damage.
Clutch service extends to the lifter mechanism and clutch-outer needle bearing. Separate procedures address the gearshift linkage, alternator stator, flywheel, and starter clutch.
Oil Pump, Cooling System, and Replacement Limits
Lubrication procedures include oil-pump disassembly and rotor-clearance inspection, oil-strainer and pressure-relief-valve service, and oil-cooler removal and installation.
Cooling-system material includes radiator-cap testing, leak checks, thermostat inspection, and radiator and fan removal. For leakage caused by a defective water-pump mechanical seal, the manual specifies replacement of the pump assembly.
Suspension, Steering, and Brake Components
Fork procedures cover internal inspection, bushings, seals, fluid level, and reassembly. Steering material includes stem removal, bearing-race replacement, and preload checks.
Rear-shock coverage addresses removal, inspection, lower-mount needle-bearing replacement, installation, and disposal. A damaged damper or reservoir is replaced as an assembly; an internal damper rebuild is not covered. Linkage and swingarm procedures include pivot-bearing replacement and fastener-tightening sequences.
Brake chapters provide piston and cylinder measurements for both master cylinders and calipers, along with seal replacement and reassembly information. Axle and wheel-bearing inspections, drive-chain adjustment, and control settings are also documented. Honda recommends authorized-dealer service for wheels/tires and steering-head bearings.
Electrical Tests and Visual References
Charging-system checks distinguish battery leakage, alternator charging-coil faults, and regulator/rectifier problems. Ignition procedures include direct-coil and ignition-pulse-generator peak-voltage tests.
Starter-motor service covers brushes, the commutator, armature checks, and reassembly. Starter-relay, diode, and interlock tests accompany the motor procedures.
The lights, meters, and switches section addresses the combination meter, vehicle-speed sensor, fuel-reserve sensor, coolant-temperature indication, and related lighting and switch circuits.
Visual references include the PGM-FI System Diagram, MIL Failure-Code Charts, Cooling System Flow Pattern, Battery/Charging System Diagram, Cable & Harness Routing views, and the complete Wiring Diagram.
Special Tools and Service Precautions
The tool tables identify oil-filter wrench 07HAA-PJ70100, ECM test harness 07YMZ-0010100—two required—and peak-voltage adapter 07HGJ-0020100, with regional alternatives noted. Pullers, bearing tools, valve-seat cutters, and steering and fork drivers are also listed.
Fuel pressure, brake fluid, hot coolant, high-pressure shock nitrogen, and battery electrolyte receive component-specific safety warnings. Proper support equipment, protective gear, and the manual’s safety precautions should be used throughout service and repair work.
Sample Fuel-Pressure and Injector Test Data
The fuel-pressure inspection specifies 343 kPa (50 psi) at idle with the pressure-regulator vacuum hose disconnected and plugged. The accompanying diagnosis distinguishes high- and low-pressure conditions.
Injector resistance is specified at 11.1–12.3 Ω at 20°C (68°F). The injector diagnostic charts also include connector, supply-voltage, and wiring checks.
