2004–2012 Honda CRF250X Service & Repair Manual

Honda's 2004–2012 CRF250X service manual covers the 49-state, California, and Canada versions, with regional specifications and separate procedures for the production changes identified throughout the manual.

• Engine repair: Engine removal and installation, cylinder-head and valve service, cam-chain work, piston inspection, crankcase separation, and crankshaft bearing replacement.

• Clutch and transmission: Clutch inspection and assembly, starter-clutch service, kickstarter repair, gearshift-linkage checks, internal transmission inspection, and balancer timing.

• Fuel and emissions: Carburetor disassembly and assembly, accelerator-pump inspection, hot-start service, throttle-position-sensor replacement, and pulse secondary air injection tests.

• Cooling and lubrication: Radiator-cap and system pressure tests, coolant replacement and bleeding, water-pump seal replacement, and oil-pump inspection.

• Suspension and brakes: Fork-damper service, shock-absorber overhaul, steering-bearing replacement, swingarm and linkage work, brake bleeding, and master-cylinder and caliper repair.

• Electrical diagnosis: Wiring diagrams, charging-system troubleshooting, ignition peak-voltage tests, starter-motor overhaul, relay checks, and lighting and switch inspections.

This manual is intended for qualified professional technicians with appropriate service training, tools, and workshop equipment.

Engine Teardown and Valve Work

The cylinder-head chapter covers valve-guide replacement, valve-seat inspection and refacing, decompressor checks, and camshaft installation with timing-mark illustrations. Cylinder and piston inspection includes bore taper, out-of-round, piston-to-cylinder clearance, and connecting-rod-to-piston-pin clearance.

For planning a teardown, the manual identifies cylinder-head, valve, piston, and clutch work that can be done with the engine in the frame. Crankshaft, internal transmission, and oil-pump service require engine removal; crankshaft and transmission work also require crankcase separation.

The titanium intake valves have a thin oxide coating that lapping can damage. The manual distinguishes their treatment from exhaust-valve seat work.

Clutch and gearbox details: Inspection goes into clutch-disc thickness, plate warpage, gear dogs, shaft bushings, shift forks, and shift-drum grooves. Assembly views show washer and snap-ring placement, while balancer illustrations identify the timing marks.

Carburetor Variants and Fuel-System Diagnosis

Carburetor identification and jetting tables distinguish the California configuration from the 49-state and Canada versions, helping match the fuel-system settings to the correct regional setup.

The procedures cover the float valve, jet needle, accelerator-pump diaphragm, pilot screw, and hot-start valve. Throttle-position-sensor replacement includes resistance-based positioning; the California section also documents high-altitude carburetor changes. The PAIR diagram maps the air and vacuum connections, with separate control-valve and check-valve inspections.

Cooling and Oil-System Service

The cooling-system flow pattern shows the radiator, reserve tank, hoses, and water pump. Testing includes a coolant gravity chart and pressure-leak checks; pump service extends to the shaft bearing, water seal, and oil seal.

The lubrication-system diagram and lubrication-and-seal-point charts accompany oil-strainer, pressure-relief-valve, oil-jet, and pump procedures. Engine and transmission oil are treated separately. The oil-filter instructions warn that reverse installation can cause severe engine damage.

Forks, Rear Shock, and Hydraulic Brakes

Fork coverage includes bushing and seal inspection, damper refilling, air bleeding, oil-quantity adjustment, and operation checks. The fork cap is treated as an assembly rather than an internally rebuildable component.

Rear-shock work includes bladder replacement, damper-rod disassembly, piston-valve assembly, bleeding, and nitrogen charging. Swingarm and shock-linkage sections detail needle-bearing replacement and seal placement.

Hydraulic-brake exploded views support front and rear master-cylinder and caliper service, with disc inspection and bleeding procedures. Improper service procedures can create an unsafe condition leading to severe injury; shock-absorber work also involves stored nitrogen pressure.

Electrical Tests and Symptom-Based Troubleshooting

Ignition Control Module connector views, cable and harness routing drawings, and separate charging, ignition, and starter circuit diagrams support electrical fault tracing. The ignition section distinguishes timing inspection from adjustment: the ICM timing is factory preset.

The final troubleshooting charts connect hard starting, weak power, poor idle, high-speed performance problems, and handling faults to the relevant inspections. They distinguish fuel-delivery and ignition faults from compression and valve-timing problems.

Valve Clearance and Oil Quantity Preview

For valve-clearance inspection with the engine cold below 35°C (95°F), the manual specifies 0.12 ± 0.03 mm intake and 0.28 ± 0.03 mm exhaust. The adjustment section covers shim measurement and replacement selection.

Engine oil quantities distinguish a drain-only change, 0.66 L, from an oil-and-filter change, 0.69 L. Transmission oil is listed separately at 0.67 L after draining.

PDF Search, Bookmarks, and Diagram Detail

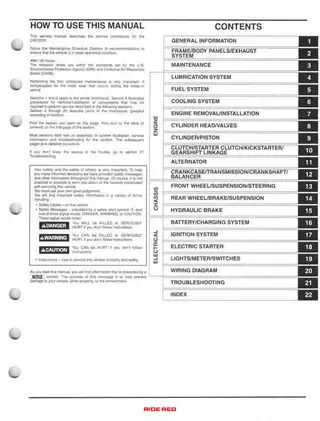

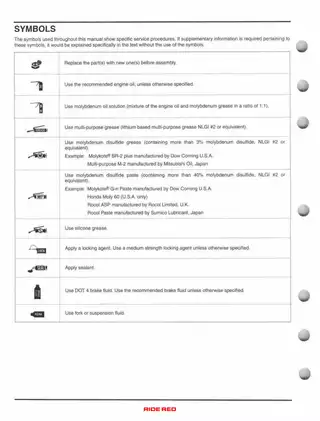

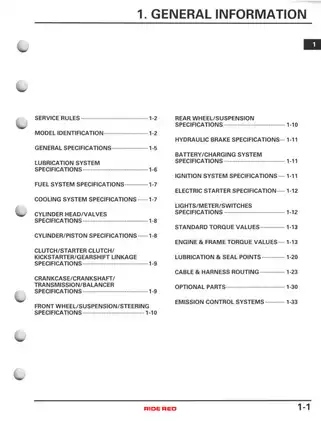

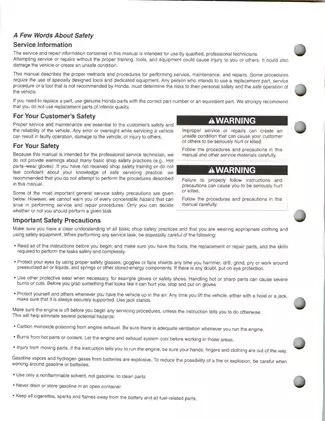

Search and drawing detail: The service chapters have an OCR text layer, but recognition errors affect some terms and tables, and the cover and safety page have no searchable text. Embedded bookmarks provide chapter navigation. Small wiring labels require zooming; some of the smallest ICM lettering remains soft.

One printable, English-language PDF contains 418 pages, including one cover page, one unnumbered safety page, and 15 memo pages.
