Jeep Wrangler TJ 1999 Service & Repair Manual (P/N 81-370-9148)
1,432 Pages • 1 Printable PDF (English) • Download
Jeep Models Covered & Key Technical Specifications
Models & Model Codes: Wrangler TJ (TJJ: LHD; TJU: RHD), Wrangler 4x4

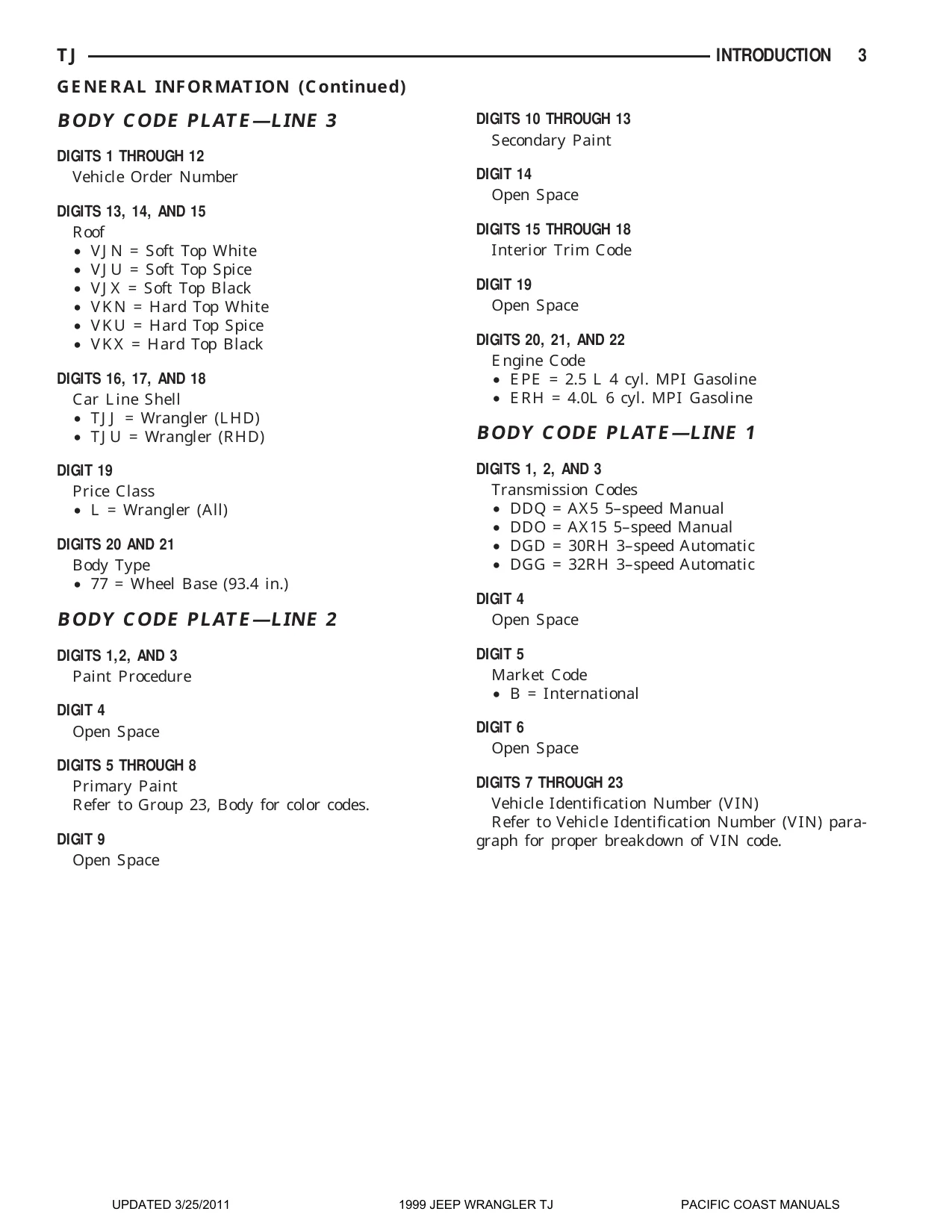

Sub-models / Variants: SE, Sport, Sahara, 2.5L Gasoline (EPE), 4.0L Gasoline (ERH), AX5 5-speed Manual (DDQ), AX15 5-speed Manual (DDO), 30RH 3-speed Automatic (DGD), 32RH 3-speed Automatic (DGG), 4x4

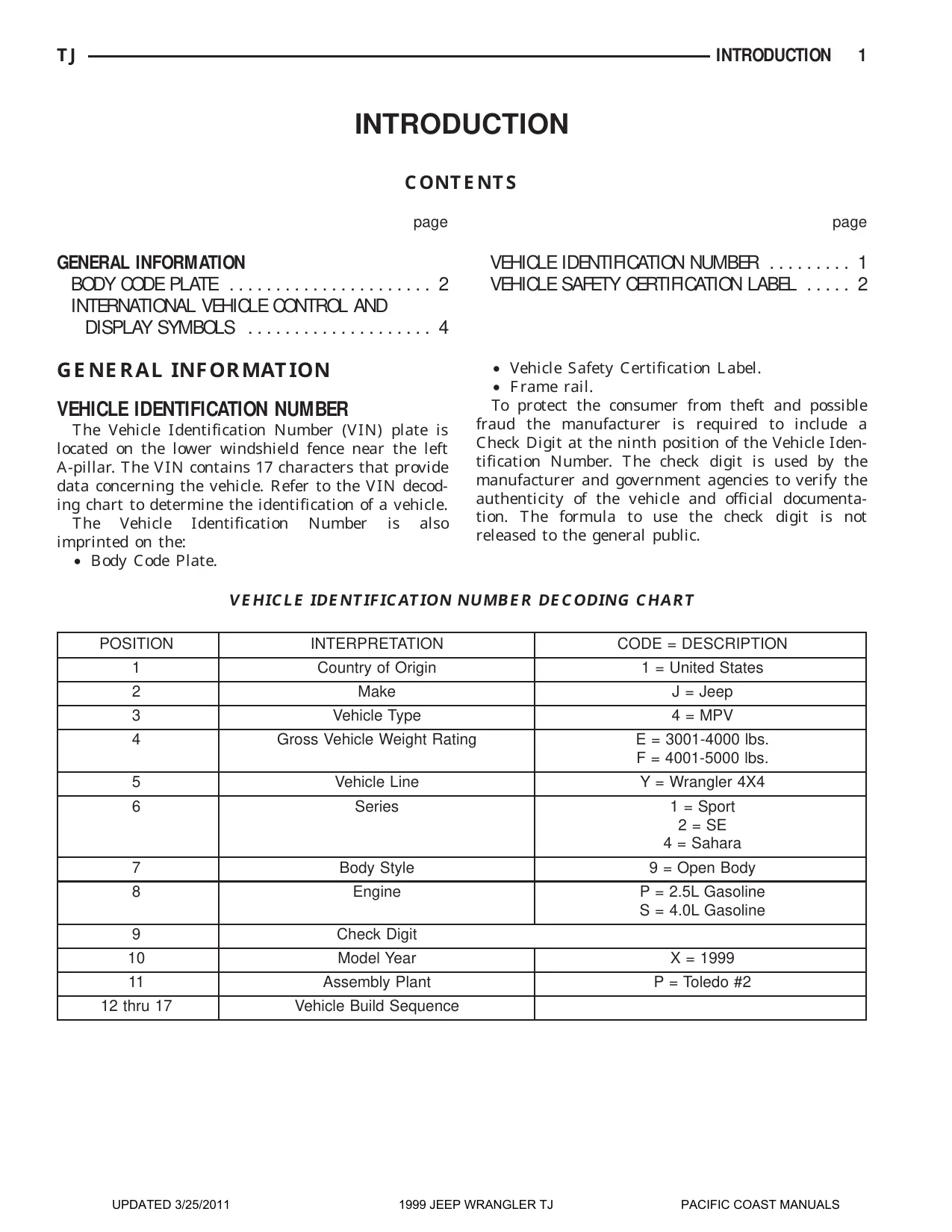

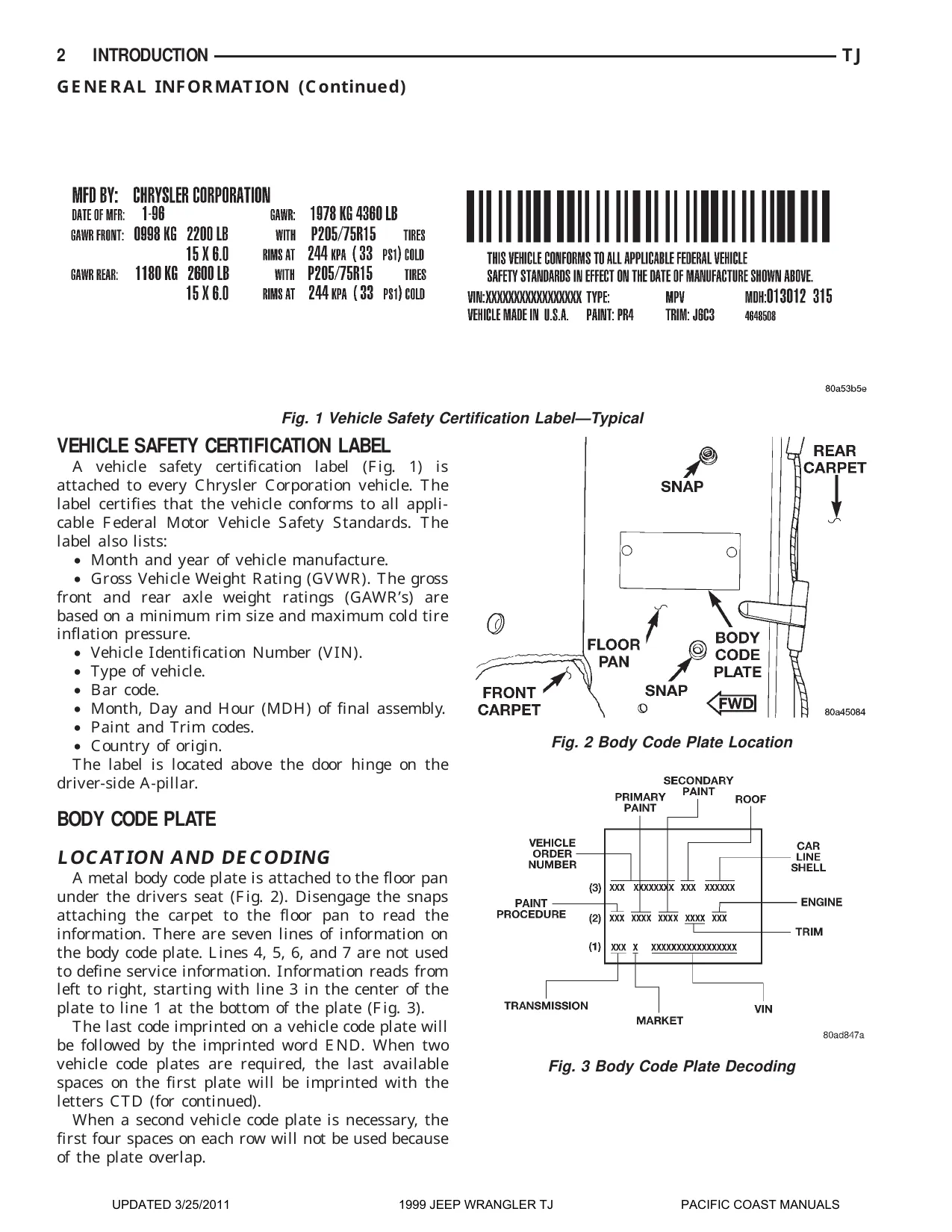

VIN Variant Identification: Position 6 — 1: Sport, 2: SE, 4: Sahara; Position 8 — P: 2.5L Gasoline, S: 4.0L Gasoline
Model Year: 1999
-
Engine Options: 2.5L 4-cylinder MPI Gasoline, 4.0L 6-cylinder MPI Gasoline
-
Transmission Options: AX5 5-speed Manual, AX15 5-speed Manual, 30RH 3-speed Automatic (2.5L engine), 32RH 3-speed Automatic (4.0L engine)
-
Transfer Case: COMMAND-TRAC 231
-
Fuel Tank Capacities: 56.8 L (Standard), 71.9 L (Optional)
-
Cooling System Capacities: 8.5 L (2.5L engine), 9.9 L (4.0L engine)
-
Wheel Lug Nut Torque: 115–156 N·m (1/2 × 20 nuts with 60° cone)
Jeep Manual Features & Selected Content Preview
This service and repair manual covers the 1999 Jeep Wrangler TJ SE, Sport, and Sahara 4x4 series, with separate engine sections for the EPE and ERH configurations. P/N 81-370-9148 identifies the service publication.
Searchable PDF, Bookmarks and Included Pages
Text search and diagram detail: Searchable PDF text and embedded chapter and procedure bookmarks support navigation. Small wire codes, connector numbers, and pin labels on the checked wiring pages are readable when enlarged.

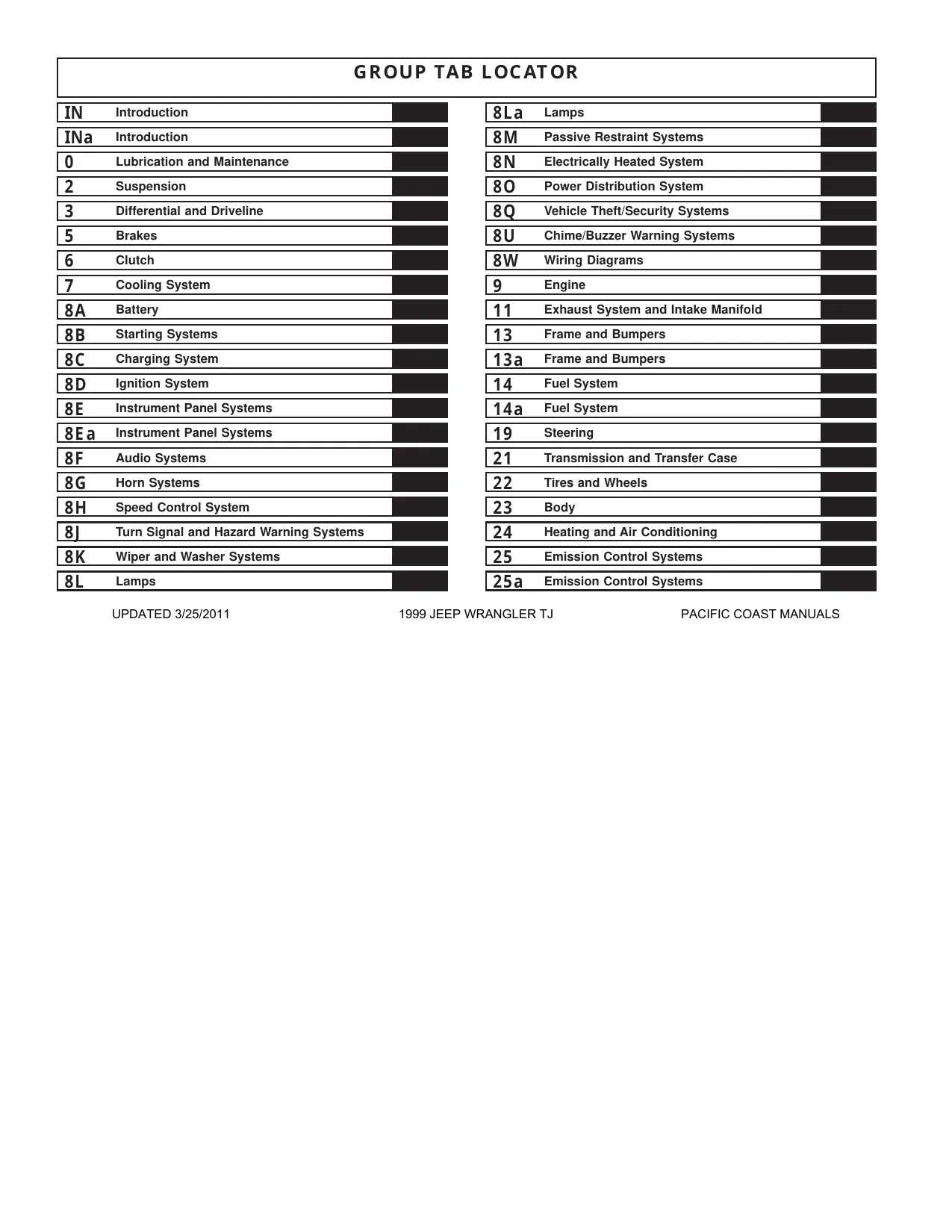

One printable English PDF contains 1,432 pages, including the cover and group locator (2 pages), alternate chapter material (34 pages), and embedded TSB 26-11-98 correction pages (3 pages). The 225-page Group 8W wiring section appears twice; an introductory page is also repeated.
Powertrain Repair, Chassis Setup and Electrical Diagnosis
The following selected coverage highlights summarize the main workshop areas. Other included topics range from audio-system service to chime/buzzer diagnosis.
-
Engine, cooling, and fuel repair: Engine removal, internal inspection, cylinder-head work, timing-chain service, compression diagnosis, cooling-system testing, and fuel-pressure and injector checks.
-
Transmission, clutch, and transfer case: AX5 and AX15 teardown, 30RH/32RH testing and overhaul, clutch repair, and NV231 disassembly and shift-linkage adjustment.
-
Axles and driveline: Axle-shaft and seal replacement, differential service, bearing preload, pinion-depth adjustment, backlash checks, and propeller-shaft vibration diagnosis.
-
Brakes and ABS: Hydraulic diagnosis, bleeding, rotor and drum inspection, caliper and wheel-cylinder service, parking-brake adjustment, and antilock component testing.
-
Steering and suspension: Power-steering flow and pressure tests, steering-gear overhaul, alignment diagnosis, and coil-spring, control-arm, track-bar, hub, and bushing replacement.
-
Electrical troubleshooting: System-specific wiring diagrams, connector pin-outs, ground and splice references, component tests, and LHD/RHD location views.
-
Body, frame, and HVAC: Door, roof, glass, and panel service; structural dimensions; refrigerant-system diagnosis; and heater, evaporator, compressor, and housing repair.
Its mechanical sections suit professional technicians and experienced DIY owners with solid service knowledge; axle setup, automatic-transmission overhaul, airbag diagnosis, and refrigerant work demand shop-level equipment and, where the manual specifies it, qualified service personnel.
Engine, Fuel and Cooling Work
Both engine sections contain step-by-step procedures for cylinder-head and block work, valve service, camshaft and timing-chain replacement, pistons, bearings, rear main seals, and oil pumps. Compression, combustion-leakage, and oil-pressure tests provide diagnostic references before internal repairs.
Fuel delivery and cooling: Pressure, pump-capacity, and leak-down tests help distinguish delivery problems from pressure loss through injectors, the pump check valve, or fuel lines when investigating difficult hot restarts. Cooling coverage adds leak testing, reverse flushing, and accessory-belt diagnosis.
Camshaft-bearing service includes the 8544 Camshaft Bushing Remover/Installer callout and the related installation precautions.
Gearbox, Clutch and NV231 Overhaul
The AX5 and AX15 chapters extend through seal replacement, geartrain teardown, shaft and synchronizer inspection, reassembly, and transmission-specific tools.
Automatic transmissions: The 30RH and 32RH material includes road, stall, air, and hydraulic-pressure tests, followed by valve-body and clutch-pack overhaul, band and cable adjustments, and hydraulic schematics.
NV231 instructions cover removal, complete disassembly, inspection, and reassembly. Clutch work addresses the cover and disc, pilot and release bearings, flywheel, pedal, and hydraulic linkage.
Differential Setup and Driveline Measurement
Coverage spans the 181 FBI front axle and 194 RBI and 216 RBI rear axles, including standard and Trac-Lok differentials where applicable. Tooth-contact analysis supplements the setup measurements; Cardan-joint service, propeller-shaft runout checks, and driveline-angle measurement address vibration complaints.
Factory tool references include the C-3339 Dial Indicator, 6774 Pinion Depth Tool Set, and W-129-B axle housing spreader.
The 181 FBI and 194 RBI procedures flag the risk of overcrushing the pinion spacer during preload setup, which can damage the spacer or bearings.
Brake, Steering and Suspension Details
Base and antilock brake sections distinguish conventional hydraulic work from HCU, CAB, wheel-speed sensor, and tone-wheel service. Rotor and drum machining information accompanies the inspection procedures.
Steering coverage includes pump service, recirculating-ball gear disassembly and adjustment, and linkage repair. Front and rear suspension instructions distinguish the relevant springs, arms, track bars, stabilizer bars, hubs, and bushings.
The suspension material also warns that tightening rubber-bushed links away from normal ride height can shorten bushing life.
Circuit References and Scan-Tool Limits
Group 8W contains 25 named circuit and reference sections. Examples include Fuel/Ignition, Anti-Lock Brakes, Airbag, Transmission Control, and Air Conditioning-Heater, with component indexes, connector pin-outs, and ground and splice information.
Separate chapters address the battery, starting and charging systems, ignition, instrument cluster, lighting, wipers, speed control, passive restraints, rear defogger, and Sentry Key Immobilizer System. Identification tables distinguish LHD/RHD bodies and U.S., Canadian, Mexican, and international market codes.
Diagnostic scope: OBD-II code descriptions, monitored-system information, component tests, and repair procedures are included. Some complete DRB scan-tool routines—particularly PCM/LDP, airbag, Sentry Key, and CCD-bus diagnosis—require separate Chrysler Diagnostic Procedures manuals that are not included.
Body, Frame and Climate-Control Service
Body coverage includes full and half doors, hard and soft tops, windshield and stationary glass, seats, tailgate, liftgate glass, and panel adjustments. Frame and body-opening dimensions accompany weld and sealer locations.
HVAC material covers performance and leak diagnosis, refrigerant recovery, evacuation and charging, compressor and clutch work, heater-core and evaporator replacement, housing service, doors, ducts, and vacuum controls.
Service Data and Workshop Precautions
Maintenance schedules, lubrication points, fluid requirements, capacities, alignment data, wear limits, clearances, pressure-test values, electrical test data, and component-specific torque tables are placed with the related systems.
Before underbody work, secure the Wrangler on a certified hoist or properly rated jack stands; airbag and refrigerant service require the isolation and recovery procedures and equipment specified in their respective chapters.
A Preview of Fuel-Pressure Test Specifications
The fuel-pump pressure test specifies 339 ± 34 kPa at warm idle. The warm-engine leak-down test specifies retained pressure of at least 30 psi for five minutes after shutdown, alongside diagnostic checks that distinguish injector leakage from pump-module check-valve or fuel-line leakage.
