Yamaha YZF-R6 Service Manual, 1999–2002 (P/N 5EB1-AE1)
400 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Model: YZF-R6
Model Years: 1999–2002 (1999, 2000, 2001, 2002)
-
Engine: Liquid-cooled, 4-stroke, DOHC, 600 cm³
-
Transmission: 6-speed constant mesh; spur-gear primary reduction
-
Fuel System: CVRD37 (MIKUNI) x 4 carburetors
-
Brakes: Front dual-disc 298 mm, rear single-disc 220 mm
-
Electrical: 12V system, CDI ignition, 12V/10 AH battery
Yamaha Manual Features & Selected Content Preview

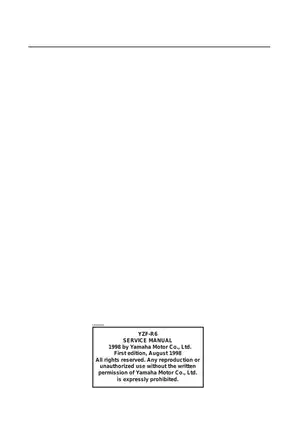

Yamaha's YZF-R6 '99 service manual, P/N 5EB1-AE1, is the first edition dated August 1998. It documents the carbureted 1999 model. The download contains the original manual without later-year service supplements.
PDF Search, Bookmarks and Wiring Detail
Text search and diagram navigation: The manual text is searchable, with exceptions including the cover and some labels within diagrams. Four embedded bookmarks open broad sections rather than individual chapters. Small connector markings and wire-color codes in the complete wiring diagrams require zooming for comfortable reading.
The ZIP download contains one printable English PDF with 400 pages, including six preliminary pages and two unnumbered wiring-diagram sheets.
Engine Overhaul, Carburetor Service and Electrical Diagnosis
These selected topics summarize the workshop coverage rather than reproduce the full contents list. Further subjects include cowling removal and instrument operation.
-
Engine and transmission repair: Step-by-step procedures cover engine removal, cylinder-head and valve service, crankcase separation, oil-pump inspection, clutch repair, and transmission disassembly.
-
CVRD37 carburetors and fuel delivery: Covers carburetor removal, separation, inspection, reassembly, synchronization, fuel-level adjustment, throttle-position-sensor adjustment, and fuel-pump and fuel-cock testing.
-
Cooling-system procedures: Includes radiator and cap testing, oil-cooler inspection, thermostat checks, and water-pump removal, disassembly, seal installation, reassembly, and installation.
-
Wheel and brake service: Covers wheel removal and installation, bearing replacement, brake-disc inspection, static balancing, pad replacement, master-cylinder and caliper service, and hydraulic brake bleeding.
-
Suspension, steering, and final drive: Documents telescopic-fork rebuilding, steering-head service, rear-shock and linkage inspection, swingarm work, and drive-chain inspection, replacement, and adjustment.
-
Electrical diagnosis: Circuit diagrams and fault-isolation checks address CDI ignition, starting interlocks, starter-motor repair, AC magneto charging, lighting, signaling, cooling-fan control, fuel-pump operation, and tachometer-based self-diagnosis.

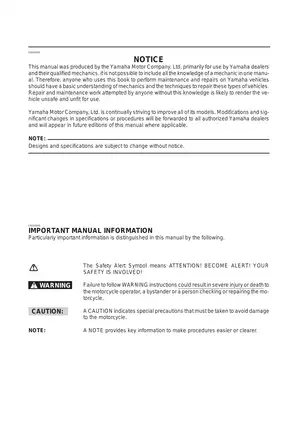

Yamaha wrote this manual primarily for its dealers and qualified mechanics. It assumes an existing understanding of motorcycle mechanics and repair techniques; the maintenance schedule also identifies work requiring special tools and technical skills.
Engine Inspection and Periodic Service

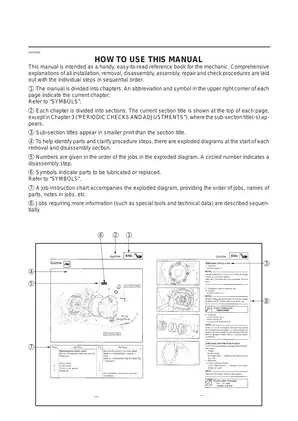

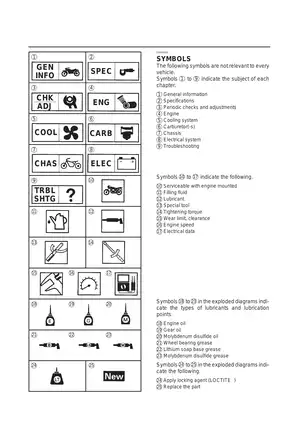

Removal and disassembly sections pair exploded views with ordered job charts, followed by inspection and assembly requirements. Internal engine coverage includes camshaft inspection and timing, valve-seat and guide checks, cylinder and piston wear measurements, and connecting-rod and crankshaft bearing-clearance checks with bearing-selection information.
Transmission inspection extends to shift forks, the shift drum, shaft runout, gear engagement, and individual gear dogs. Lubrication-system material covers the relief valve, oil strainer, delivery pipes, oil nozzles, and crankcase oil passages.
Periodic service adds valve-clearance adjustment, compression and oil-pressure testing, ignition-timing checks, cooling-system maintenance, steering-head adjustment, and chassis lubrication. The compression-test section relates different test results to possible internal engine faults.
Carburetor Identification and Sensor Adjustment
The carburetor specification table distinguishes ID marks 5EB00, 5EB200 (G), and 5EB300 (F). These are carburetor identifiers, not vehicle model codes.
Throttle-position-sensor coverage combines resistance checks with a tachometer-based adjustment mode. Separate self-diagnosis material explains the tachometer condition-code displays for the throttle-position-sensor and fuel-level-indicator circuits.
Fork Rebuilding and Rear-Shock Limits
Suspension adjustment tables cover front and rear spring preload, rebound damping, and compression damping. Fork assembly instructions include bushing and seal replacement, oil filling, air removal, and oil-level measurement.
The rear-shock section covers handling, removal, inspection, installation, linkage service, and disposal of the nitrogen-charged shock and gas cylinder. It does not provide an internal rear-shock rebuild procedure.
Circuit References and Yamaha Tools
Visual references include oil-flow diagrams, coolant-flow diagrams, cable-routing views, the starting-circuit cutoff operation schematic, and throttle-position-sensor and fuel-level self-diagnosis circuits. Complete YZF-R6 '99 wiring diagrams are included for Europe and Australia.
The starting-interlock explanation and related relay and switch checks help trace a no-crank fault through the clutch, neutral, and sidestand circuits before attributing it to the starter motor.
The special-tool section lists tool numbers and functions. Fork tools include spring compressor 90890-01441 and the listed seal driver and attachment 90890-01376 / 90890-01374.
Other examples are vacuum gauge and adapter 90890-03094 / 90890-03060, clutch holding tool 90890-04086, and ignition checker 90890-06754. Reference tables supply tightening torques, fluid capacities, lubricant specifications, wear limits, clearances, adjustment data, and electrical test values.
Assembly Cautions and Safe Service
The camshaft-installation notes warn that crankshaft movement during installation can cause damage or incorrect valve timing; mixing big-end or main-journal bearing positions can also damage the engine. The fork's internal damper-adjusting components are particularly sensitive to contamination.
Hydraulic brake work, the hot pressurized cooling system, and the nitrogen-charged rear shock require the manual's safety procedures; incorrect service can damage components or leave the motorcycle unsafe.
A Preview of Valve-Clearance and Carburetor-Level Data
For valve inspection on a cold engine at room temperature, the manual specifies intake clearance of 0.11–0.20 mm and exhaust clearance of 0.21–0.30 mm. Valve-pad selection tables accompany the adjustment procedures.
The carburetor fuel-level section specifies 17.5–18.5 mm below the reference mark, measured with the motorcycle upright on a level surface. Its illustrations identify the float-chamber reference line and the gauge arrangement.
