1994 Honda CB1000 Factory Service & Repair Manual (P/N 61MZ101)

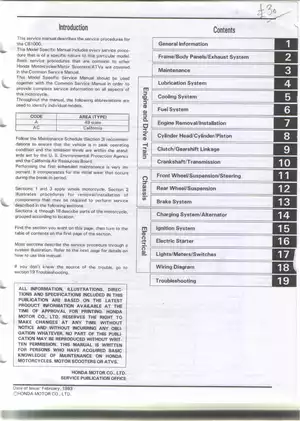

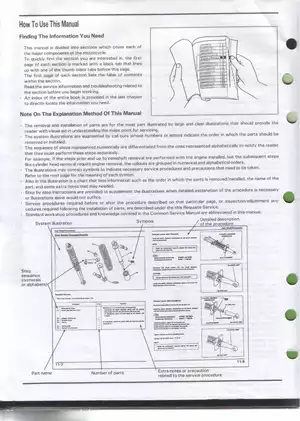

This 220-page PDF contains Honda's model-specific service manual for the 1994 CB1000. The U.S. shop-manual item/part number is 61MZ101; the scan also preserves an inner Honda CB1000P cover whose back is marked 62MZ100. The introduction is dated February 1993 and identifies code A for 49-state motorcycles and AC for California models. Honda states that the manual is written for readers who already have basic maintenance knowledge of Honda motorcycles, scooters, or ATVs. Its engine, chassis, and electrical repair coverage is therefore suited to mechanically experienced owners and technicians equipped for measurement, disassembly, and model-specific diagnosis.

• Covers service access, the maintenance schedule, valve-clearance inspection and adjustment, carburetor synchronization, drive-chain slider inspection, and removal and installation of the seat, body panels, fuel tank, and exhaust system.
• Details the lubrication and cooling circuits, including the oil pan and oil pump, coolant draining, thermostat, radiator, fan, reserve tank, and water-pump service.
• Follows the four-carburetor bank through removal, separation, disassembly, recombination, pilot-screw setting, synchronization, high-altitude adjustment, and 49-state/California hose routing.
• Provides engine removal, camshaft timing, rocker-arm and cam-chain-tensioner work, cylinder-head and valve service, cylinder and piston repair, hydraulic clutch service, and gearshift-linkage repair.
• Takes internal repair through crankcase separation, balancer backlash adjustment, shift-drum and shift-fork removal, mainshaft and countershaft disassembly, alternator-shaft and starter-clutch service, crankshaft removal, and color-coded bearing selection.
• Addresses front and rear wheels, fork and steering stem, twin rear shock absorbers, swingarm, brake pads, calipers, and master cylinders, plus charging, ignition, starter, meter, switch, lighting, and system-level troubleshooting.

Engine-Out Scope and California Differences

The 998 cc liquid-cooled DOHC inline-four and five-speed transmission receive model-specific treatment. Honda distinguishes work that can be completed with the engine in the frame - including the oil and water pumps, carburetors, camshafts, cylinder head, pistons, clutch, balancer, stator, pulse generator, and starter motor - from transmission, crankshaft, shift-drum, and alternator-shaft work that requires engine removal and crankcase separation.

California coverage adds the PAIR secondary-air system, EVAP canister, purge and carburetor-air-vent control valves, and dedicated tube-routing views. The A and AC data also distinguishes carburetor identification, idle and ignition settings, and emissions-related service points.

Diagrams, Factory Data, and Required Tools

Named reference graphics include Cable & Harness Routing, the Lubrication System Diagram, Cooling System Flow Pattern, Carburetor Tube Routing (California type), charging- and ignition-system troubleshooting flowcharts, and the full Wiring Diagram with switch-continuity tables. The final diagnostic section traces hard starting, loss of power, poor low- or high-speed performance, and handling faults.

Factory tables provide component-specific torque values, fluid capacities and approved lubricants, inspection dimensions, wear limits, clearances, electrical resistance and voltage checks, ignition and carburetor settings, suspension data, and color-code tables for crankshaft and connecting-rod bearing selection.

Specified tooling includes the vacuum gauge 07404-0030000, pilot-screw wrench 07KMA-MN90100 with U.S. alternative 07MMA-MT3010A, newly designed piston compressor 07PME-MZ20100, and shock-absorber compressor 07GME-0010000. Additional tool listings cover valve-guide and seat work, clutch holding, fork seals, steering races, swingarm bearings, and electrical testing.

The cautions identify repair mistakes with real consequences. Misplaced connecting-rod bearing inserts can block oil holes and lead to engine seizure; leaving carburetor diaphragms installed during compressed-air cleaning can damage them.

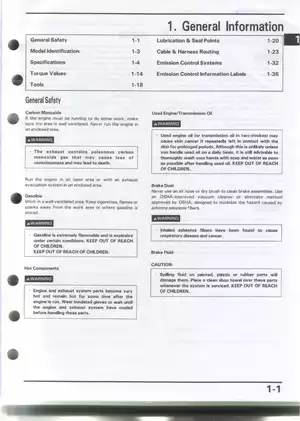

Common Manual Requirements and Safety

This is Honda's model-specific manual, not a standalone substitute for the Honda Common Service Manual. Honda sends the reader to that companion publication for general procedures such as brake and clutch hydraulic bleeding, tire service, basic bearing replacement, battery testing, and many switch or sensor checks. Used together, the two manuals provide the complete service framework; this PDF supplies the CB1000-specific removal, installation, routing, specifications, and fault isolation.

Fuel-system repair requires ventilation and strict control of sparks or flame. Turn the ignition off before disconnecting electrical components and isolate the battery ground where directed for starter or engine work. Allow the cooling and exhaust systems to cool, and follow the manual's precautions for brake fluid and nitrogen-charged shock absorbers.
