1989–1999 Yamaha FZR600K / FZR600KC Owner's Manual (P/N LIT-11616-FZ-00, 11616-06-97, 11616-07-36)

• 628-page PDF set — a 376-page FZR600 base service manual, a 39-page FZR600RA/RAC supplement, a 70-page FZR600RB/RBC supplement, and a 143-page FZR600K/FZR600KC owner's manual.
• Engine repair coverage follows removal through final installation, with cylinder-head, camshaft, and timing-chain work; piston, cylinder, crankshaft, and connecting-rod inspection; valve and valve-seat repair; clutch and transmission service; oil-pump and water-pump work; and crankcase assembly.
• Fuel, cooling, and emissions sections cover the Mikuni BDST32 carburetor bank, synchronization and adjustment, carburetor removal and internal service, radiator and thermostat repair, coolant-system inspection, and California-model air-induction and EXUP cable, valve, servomotor, and circuit diagnosis where specified.
• Chassis repair procedures address front and rear wheels, static balancing, brake pads, calipers and master cylinders, brake bleeding, front-fork disassembly, steering-head service, swingarm and linkage inspection, the gas-charged rear shock, and drive-chain and sprocket replacement.
• Electrical diagnosis and troubleshooting span digital ignition, electric starting, charging, lighting, signals, the cooling fan, fuel pump, and California EXUP systems, with component tests, circuit-operation descriptions, switch checks, and symptom-based fault isolation.
• Factory reference data includes model-specific torque tables, lubricant and fluid specifications, wear limits, inspection clearances, electrical test values, cable routing, special-tool listings, circuit diagrams, and exploded assembly references.

Model and Publication Scope

The base cover is marked FZR 600 (W-D), while the detailed base chapters identify FZR600W and California-spec FZR600WC. The supplied FZR600RA/RAC and FZR600RB/RBC books are model-specific supplements to the W/WC service information, not standalone repair books. The FZR600K/FZR600KC publication is an owner's manual for operation, inspection, and minor maintenance; it is not a K/KC workshop supplement for internal engine or chassis repair. The PDF set contains no separately identified FZR600RD/RDC supplement.

Starting identification data helps confirm fit before parts or procedures are selected. W/WC coverage begins at VIN JYA3HHE0*KA000101 / engine 3HH-000101 and VIN JYA3HWC0*KA000101 / engine 3HW-000101. RA/RAC begins at JYA3HHE0*LA016101 / 3HH-016101 and JYA3UUC0*LA000101 / 3UU-000101. RB/RBC begins at JYA3HHE0*MA032101 / 3HH-032101 and JYA3UUC0*MA003101 / 3UU-003101.

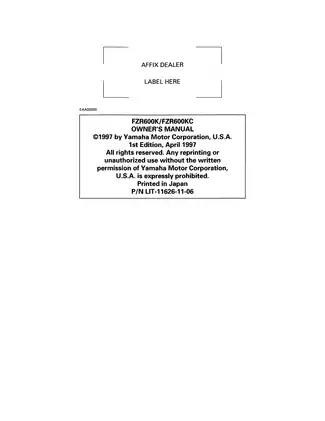

Printed document identifiers are LIT-11616-FZ-00 on the FZR 600 (W-D) cover; LIT-11616-06-97 for the W/WC service manual named in the RA/RAC foreword; LIT-11616-07-36 for the October 1989 first-edition RA/RAC supplement; LIT-11616-07-60 for the RB/RBC supplement; and P/N LIT-11626-11-06 for the April 1997 first-edition K/KC owner's manual.

Workshop and Diagnostic Depth

The base manual documents removal, disassembly, inspection, repair, reassembly, adjustment, and installation across the engine, carburetion, cooling, chassis, and electrical systems. Its troubleshooting chapter separates hard-starting faults into fuel, electrical, and compression causes, then covers poor idle or high-speed operation, shifting problems, clutch slip or drag, overheating, weak brakes, fork faults, unstable handling, and lighting or signal failures.

The RA/RAC supplement concentrates on revised front- and rear-brake service, including pad replacement, caliper and master-cylinder disassembly, inspection, repair, and assembly. The RB/RBC supplement adds updated specifications, lubrication and coolant diagrams, cable routing, oil and filter procedures, oil-pan and strainer changes, cooling-system service, starting-circuit troubleshooting, fuel-pump circuit operation, and California EXUP diagnosis. The K/KC owner's manual adds controls, pre-operation checks, engine break-in, periodic maintenance, California evaporative-canister inspection, cleaning, storage, and consumer information.

Drawings, Schematics, and Special Tools

Representative references include the FZR600W/WC main circuit and wiring diagrams, separate RA/RAC and RB/RBC wiring diagrams, lubrication and coolant-flow diagrams, cable-routing views, carburetor section and exploded views, and ignition, starting, fuel-pump, and EXUP troubleshooting charts. Yamaha tool listings identify equipment by number, including the YU-08030-A vacuum gauge, YU-24460-01 radiator-cap tester, YM-33963 fork-seal driver weight, and the J-37140A oil-filter wrench specified in the RB/RBC supplement.

Manual-Specific Repair Cautions

The RA/RAC brake section warns that the pad-spring arrow must follow disc rotation and that pads marked “FRONT USE ONLY” belong only in the front assembly. The base manual also warns against spinning cleaned bearings with compressed air; rear-shock service carries a separate high-pressure nitrogen warning because opening, heating, or deforming the cylinder is unsafe and can impair damping.
