Detailed Workshop Manual for Honda CRF230F Motorcycle (2003-2012) – Full 314 Page Doc | OEM Specs
Product Gallery

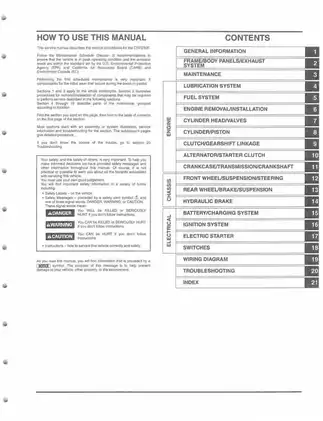

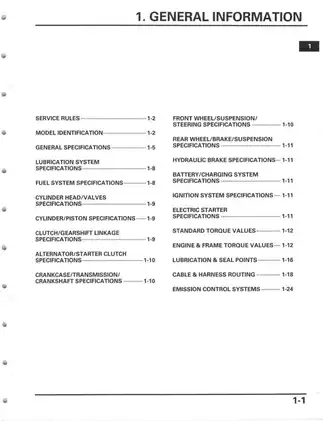

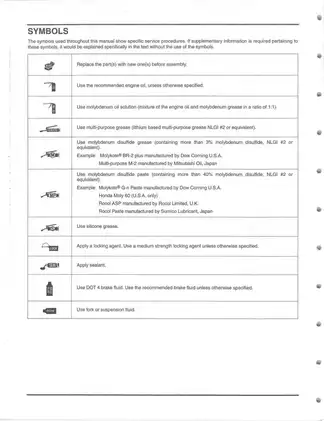

Sample pages from the Detailed Workshop Manual for Honda CRF230F Motorcycle (2003-2012) – Full 314 Page Doc | OEM Specs manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 29196 / Mary Garcia
- File Size:
- 30.53 MB
- File Type:
- Language:
- English
- Pages:
- 304
- Printable:
- Yes
- Estimated Download Time:
- 0.63 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Motorcycle
- Brand:
- Honda
- Reviewed and Approved:
- Jan 6, 2026
Honda Models and Parts Covered in this Motorcycle Manual
- HONDA CRF230F (2003-2012) | Series: Off-Road / CRF
Model Identity: Primary Model: CRF230F | Applicable Years: 2003-2012 | Curb Weight: 250.2 lbs ('03-'07), 248.5 lbs (After '07) | Ground Clearance: 12.0 in (305 mm)
Power & Drive Core: Engine Type: Air-cooled Single Cylinder 4-Stroke | Displacement: 223 cm³ (13.6 cu-in) | Bore x Stroke: 65.5 x 66.2 mm | Compression Ratio: 9.0:1 | Valve Train: Chain-driven OHC; 2-Valve
Technical Systems: Transmission: 6-Speed Constant Mesh | Clutch Type: Multi-plate wet | Final Drive: Chain (520 size; 110 links) | Ignition Logic: CDI (Capacitor Discharge Ignition) | Carburetion: 28 mm Piston Valve (PD type)
Essential Benchmarks: Valve Clearance (Cold): IN: 0.1 mm (0.004 in) | EX: 0.1 mm (0.004 in) | Idle Speed: 1,400 ± 100 RPM | Cylinder Compression: 188 psi (1,294 kPa) | Spark Plug Gap: 0.8–0.9 mm (0.03–0.04 in) | Drive Chain Slack: 20–30 mm (3/4–1-1/4 in)
Capacities & Consumables: Fuel Tank Volume: 2.17 US gal ('03-'07), 1.85 US gal (After '07) | Engine Oil: SAE 10W-30 (API SG or higher) | Oil Volume: 1.0 L (at draining), 1.2 L (at disassembly) | Fork Fluid: Pro Honda Suspension Fluid SS-8 (10W) | Brake Fluid: DOT 4
Complete Manual Information
HONDA CRF230F SERVICE MANUAL
Engineered for the rigorous demands of off-road endurance, this definitive technical guide provides the precision required to maintain the CRF230F’s legendary reliability. By utilizing factory-standard procedures, mechanics can eliminate the guesswork that leads to premature component failure in high-stress trail environments. This documentation ensures that every seal, gear, and valve is calibrated to original racing specifications, securing both rider safety and machine longevity.
Precision Asset Protection
- Eliminate Guesswork: Avoid "trial-and-error" parts replacement by following step-by-step diagnostic flows and factory-set tolerances.
- Maximize Resale Value: Documented maintenance performed to OEM standards significantly preserves the long-term equity of your motorcycle.
- Minimize Shop Latency: Rapidly identify issues with dedicated troubleshooting trees to get the bike back on the trail faster.
- Protect Structural Integrity: Precise torque sequences prevent stripped threads and cracked casings in the lightweight aluminum and steel assemblies.
Machine Identification & Revision Scope
This manual covers the global CRF230F series produced between 2003 and 2012. It is applicable to standard off-road configurations, including specific documentation for various model year updates regarding fuel capacity and suspension damping changes.
Technical Document Metadata
- Document Format: High-Definition Searchable PDF
- Total Page Count: 314 Pages
- Official Publication Date: Revised 2012
- LIT/Form Number: 61KPS09
Trail-Side & Workshop Diagnostics
The manual features specialized "Symptom-to-System" logic, focusing on the common challenges of air-cooled off-roaders. Detailed sections cover:
- Hard Starting/Poor Idle: Advanced cleaning and jetting procedures for the 28mm piston-valve carburetor.
- Ignition Logic: Troubleshooting the CDI (Capacitor Discharge Ignition) and pulse generator signals.
- Engine Performance: Diagnostic steps for power loss, smoke, or abnormal top-end noise.
Service Benchmarks & Longevity Standards
| Specification | Technical Value | Maintenance Benefit |
|---|---|---|
| Valve Clearance (Cold) | 0.10 mm (0.004 in) | Prevents burnt valves and ensures optimal compression. |
| Cylinder Compression | 188 psi (1,294 kPa) | Verifies piston ring health and peak power output. |
| Spark Plug Gap | 0.8–0.9 mm | Ensures clean combustion and reliable cold starts. |
| Drive Chain Slack | 20–30 mm (0.8–1.2 in) | Prevents countershaft bearing wear and chain failure. |
| Idle Speed | 1,400 ± 100 RPM | Stabilizes oil flow and prevents stalling in technical terrain. |
Visual Schematics & Mapping
Contains high-fidelity wiring diagrams and exploded views with sub-millimeter detail. The PDF format allows for extreme zooming on hydraulic brake assemblies, internal transmission gear stacks, and fork internals without pixelation, ensuring every circlip and washer is correctly oriented.
Technical Table of Contents
- Section 1-3: General Information / Technical Features / Maintenance Schedule
- Section 4-5: Lubrication System / Fuel System (Carburetion)
- Section 6-8: Engine Removal / Cylinder Head & Valves / Cylinder & Piston
- Section 9-11: Clutch, Oil Pump & Linkage / Crankshaft & Transmission
- Section 12-13: Front Wheel, Suspension & Steering / Rear Wheel & Brake
- Section 14-15: Hydraulic Brake System / Battery & Charging System
- Section 16-17: Ignition System / Electric Starter
- Section 18-19: Lights, Meters & Switches / Wiring Diagrams
- Section 20: Comprehensive Troubleshooting
FAQ
What is the precise valve lash setting for the CRF230F power plant?
To maintain peak volumetric efficiency and prevent terminal valve-seat recession, the intake and exhaust valves must be calibrated while the engine is cold (below 95°F). Both the intake and exhaust clearances are specified at 0.1 mm (0.004 in). Utilizing a feeler gauge to hit this exact benchmark ensures the valvetrain stays quiet and the cam lobes are protected from premature surface spalling during high-RPM operation.
How do I troubleshoot a soft or spongy front hydraulic brake lever?
A spongy feel at the lever typically indicates air entrainment within the hydraulic circuit. To restore firm modulation and reliable stopping power, the system must be bled to a zero-bubble state using fresh DOT 4 brake fluid. After bleeding, ensure the brake lever pivot bolt is torqued to 6 N-m (4.3 lbf-ft) to maintain proper mechanical leverage and pivot integrity.
What are the critical spark plug benchmarks for various riding climates?
For standard operation, the factory-mandated gap is 0.8–0.9 mm (0.03–0.04 in) using an NGK DPR8EA-9 or Denso X24EPR-U9 plug. In sub-41°F environments, technicians should swap to a "colder" heat range plug, such as the NGK DP7EA-9, to prevent electrode fouling. Maintaining this precise gap is vital for the CDI logic to deliver a consistent 70V minimum primary peak voltage, ensuring reliable ignition under heavy load.
How does fuel capacity vary across the CRF230F production cycle?
Range-planning for field operations requires noting that '03–'07 models are equipped with a 2.17 US gal (8.2 liter) fuel cell, while '08–'12 revisions were downsized to a 1.85 US gal (7.0 liter) tank. When refitting the fuel system, always torque the fuel valve mounting bolts to 9 N-m (6.5 lbf-ft) to prevent fuel permeation or leaks at the tank interface, which are critical for both safety and fire prevention.
What is the mandatory torque for the rear axle to prevent drive-train misalignment?
To secure the rear wheel and maintain the specified drive chain slack of 20–30 mm (3/4–1-1/4 in), the rear axle nut must be torqued to exactly 108 N-m (80 lbf-ft). Under-torquing can lead to axle migration under torque loads, while over-torquing risks crushing the wheel bearing spacers; adhering to this value ensures the swingarm remains structurally sound during high-impact landings.
Download Instructions for Honda Motorcycle Manual
Frequently Asked Questions - Honda Motorcycle Manual
Is this manual suitable for beginners?
Yes, this Honda manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Motorcycle maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (30.53 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your Honda Motorcycle manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Are engine specifications included?
This motorcycle service manual includes detailed engine specifications, valve clearances, torque settings, and performance data specific to your Honda model.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
