1998 Yamaha F4/F4A Outboard Motor Service & Repair Manual (P/N 67D-28197-Z8-C1)

This Yamaha service manual covers the 1998 F4 (USA/Canada) and F4A (worldwide), including F4AMH, F4MSHX and F4MLHX tiller-steer models with model code 67D. Publication 67D-28197-Z8-C1, first edition, February 1998.

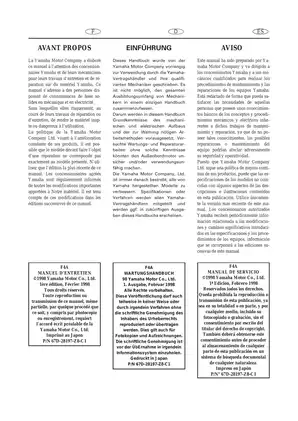

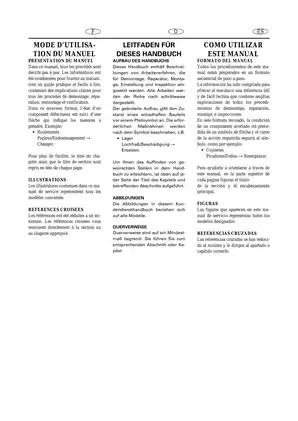

Supplied as a 307-page PDF with searchable text in English, French, German and Spanish. The page total includes all four languages.

• Power unit repair: Powerhead removal, cylinder head and valve service, crankcase disassembly, and inspection of the piston, connecting rod, crankshaft and camshaft.

• Fuel system: Fuel tank, fuel cock and fuel joint inspection; diaphragm fuel pump service; carburetor disassembly, float inspection and market-specific idle adjustment.

• Lower unit and cooling: Gearcase leakage testing, dog clutch and propeller shaft repair, bearing and oil seal replacement, water pump service and thermostat testing.

• Starting and controls: Recoil starter repair, start-in-gear protection adjustment, throttle cable setting, ignition timing checks and T.C.I. air-gap adjustment.

• Electrical diagnosis: Ignition wiring diagrams, spark-gap and peak-voltage tests, ignitor coil resistance measurements, spark plug cap checks and engine stop switch testing.

• Bracket and steering: Tiller handle disassembly, swivel and clamp bracket service, pivot bushing inspection and steering friction assembly work.

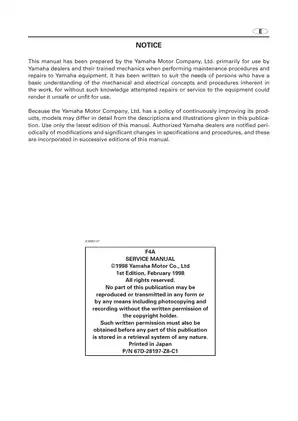

Yamaha prepared this manual for its dealers and trained mechanics with an existing understanding of mechanical and electrical service procedures.

Engine Repair and Maintenance

The single-cylinder, four-stroke OHV power unit uses underwater exhaust. Engine repair sections cover valve guide replacement, valve seat refacing and lapping, and connecting rod oil-clearance measurement with Plastigauge.

Cylinder head maintenance is described with the power unit still mounted, helping you assess whether powerhead removal is needed for the job.

The Crankcase and Camshaft exploded view accompanies internal disassembly, with separate coverage of the decompressor, camshaft timing marks, oil splasher gear and breather valve. Flywheel removal notes explain how incorrect puller alignment can damage the engine or tools.

You will find exact valve clearance tolerances, piston-to-cylinder gaps, and crankshaft runout limits. Reference data also covers valve spring limits, spark plug gaps, fluid capacities and fastener torques.

Cylinder head and crankcase procedures show staged tightening sequences; connecting rod bolts have their own torque specification. Seal installation depths and gasket replacement requirements appear with the relevant assemblies.

Fuel System and Carburetor Variants

The specifications distinguish the 67D00 carburetor from the U.S. 67D10 version. U.S. and non-U.S. idle procedures are separate, and pilot screw adjustment applies only to the non-U.S. version.

The Carburetor exploded view identifies the float, needle valve and jets, while fuel pump service covers the diaphragm, plunger and valve assemblies. Carburetor inspection notes explain how cleaning jets with steel wire can enlarge their bores and affect performance.

Follow the manual's ventilation and fuel-handling precautions; gasoline vapor and ignition sparks present a fire hazard.

Lower Unit, Water Pump and Bracket Service

Lower unit illustrations distinguish short-shaft (S-transom) and long-shaft (L-transom) assemblies, including the long-shaft extension. The removal section also identifies work that can be performed without removing the power unit.

The Water Pump and Propeller Shaft Assembly exploded views are paired with removal and installation charts. Service points cover the impeller and insert cartridge, forward and reverse gears, dog clutch orientation and gear-shift checks.

The Clamp Bracket drawings show the tilt mechanism and mounting hardware; adjacent sections cover the upper casing, swivel brackets and friction plate.

T.C.I. Tests and Symptom Diagnosis

The Ignition System wiring diagram and stop-switch continuity chart accompany the electrical tests. Separate instructions address standard and resistor-type spark plug caps. The peak voltage adapter is identified as YU-39991 / 90890-03169, with test connections illustrated.

The Trouble Analysis Chart links starting problems, rough idle, stalling, overheating and hard shifting to components and reference chapters. These links help narrow the checks to the relevant fuel, ignition, power unit or lower unit components before selecting a repair procedure.

File Contents and PDF Navigation

Included pages: 290 chapter pages, 14 preliminary pages, front and back covers, and one blank page make up the 307-page total. The translations are interleaved with the English pages.

Navigation: Chapter bookmarks lead to the English chapter openings, with translated material following. The separate RETURN bookmark links to an external PDF.

Diagram readability: Circuit labels and wire-color codes are readable. The smaller multilingual legends are easier to read when enlarged.
