1984 Honda ATC200ES Big Red repair manual

Price: 18.99 USD
Lifetime Guarantee
File specifications File size: 62.23 MB File ending in: pdf

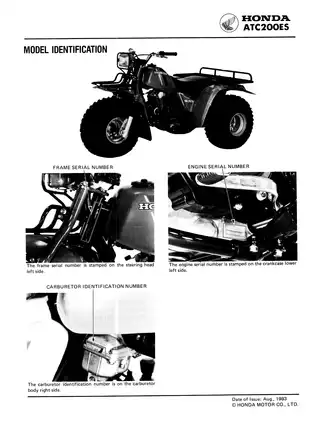

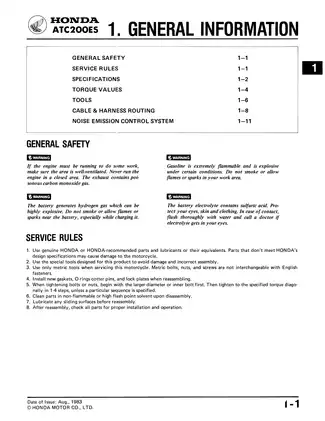

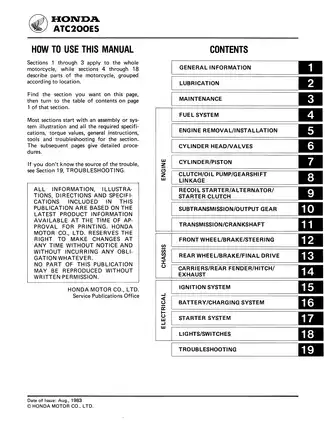

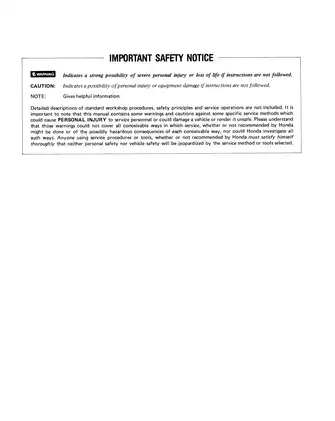

To make it easier for you to choose the right manual, we have compiled various information for you below, such as model designations, types, and production years. This manual applies to the following models: ATC 200 ES Big Red / Honda Motor Co. Ltd Honda ATC200ES Big Red - 1984 Engine: 192cc, 4-stroke air-cooled, OHV Production/model years: 84, 1984 Manual Language: English Printable: Yes, all printers Instant delivery: Download link will appear on the checkout page after your payment is complete. # ³ "ATV Troubleshooting: Shop Repair and PDF Handbook for 1984 Honda ATC200ES Big Red" Uncover the secrets to troubleshooting and repairing your 1984 Honda ATC200ES Big Red ATV with our comprehensive PDF handbook. Whether you're an avid off-roader or a skilled ATV enthusiast, this detailed manual provides you with engine specifications, maintenance tips, common issues, tuning suggestions, and a wide range of accessories to enhance your ATV experience. From maintenance intervals to owner reviews, we have all the information you need to keep your Honda Big Red running smoothly and reliably. Engine Specifications/Technical Data: • The 1984 Honda ATC200ES Big Red is equipped with a 192cc, air-cooled, four-stroke engine. • The engine features a single-cylinder configuration. • It has a bore and stroke measurement of approximately 65.5mm x 57.8mm. • The compression ratio is around 8:1. • Fuel delivery is managed by a carburetor. • Ignition system utilizes a CDI (Capacitor Discharge Ignition) system. • The ATV offers a 5-speed manual transmission with an automatic clutch. • The Big Red has a chain-driven final drive. • The fuel tank capacity is approximately 2.6 gallons. • The front suspension utilizes independent double wishbones with coil springs and hydraulic shocks. • The rear suspension features a swingarm with single hydraulic shock. • The braking system includes drum brakes at the front and rear. • The ATV weighs approximately 385 pounds. • The overall length is around 72.4 inches. • The width measures approximately 41.7 inches. • The height is approximately 45.7 inches. • The wheelbase is approximately 45.5 inches. • The ground clearance is approximately 4.7 inches. • The seat height is approximately 30.3 inches. • The tire size is typically 23x8-11 at the front and 25x12-9 at the rear. Facts and Details: - The Honda ATC200ES Big Red is a popular three-wheeled ATV known for its reliability and durability. - It features a large rear cargo rack, making it suitable for various utility applications. - The ATV is equipped with electric start for convenience and ease of use. - The reverse gear allows for maneuvering in tight spaces or reversing out of tricky situations. - The Big Red is known for its robust build quality and ability to handle rugged terrains. - Regular maintenance intervals recommend oil and filter changes every 20 hours or every three months. - General maintenance tips include regular air filter cleaning, chain lubrication, and tire pressure checks. - Common issues that may occur include carburetor problems, electrical system issues, and transmission-related concerns. - Solutions for carburetor problems may involve cleaning or rebuilding the carburetor and ensuring proper fuel flow. - Electrical system issues can often be resolved by checking and securing wiring connections and inspecting fuses and relays. - The transmission may require periodic adjustments and lubrication to maintain proper shifting and engagement. Tuning Tips and Modifications: ► Upgrading the exhaust system to an aftermarket option can enhance both power and sound. ► Installing a high-performance air filter and re-jetting the carburetor can improve airflow and fuel mixture for increased performance. ► Adding a snorkel kit can allow the ATV to tackle water crossings and muddy terrains more effectively. ► Upgrading the suspension components, such as shocks and springs, can enhance ride quality and handling. ► Installing aftermarket lights and light bars can improve visibility during nighttime riding. Available Accessories, Attachments, and Aftermarket Options: ■ Front and rear cargo racks for additional storage capacity. ■ Winches for added pulling power and recovery capabilities. ■ Skid plates and A-arm guards for increased undercarriage protection. ■ ATV snow plows and snowblower attachments for winter maintenance and clearing. ■ Gun racks and bow holders for hunting and outdoor enthusiasts. ■ ATV cargo trailers for hauling equipment and supplies. ■ Handlebar-mounted GPS units and smartphone holders for navigation. Owner Reviews and Opinions: ☺ Strengths: Reliable engine, versatile utility capabilities, maneuverability. ☺ Strengths: Easy to ride, comfortable seating position, durable construction. ☻ Weaknesses: Three-wheel design can be unstable in certain situations, limited suspension travel, drum brakes. ☻ Weaknesses: Limited aftermarket support compared to four-wheel ATVs. Repairs Carried Out Most Frequently and Parts That Often Break: → Carburetor Cleaning and Adjustment: Periodic cleaning and adjustment of the carburetor may be necessary. → Electrical Wiring and Connectors: Checking and securing wiring connections can resolve electrical issues. → Starter Motor: Repairing or replacing the starter motor may be necessary if it fails to engage or operate. → Chain Tension Adjustment: Regular chain tension adjustment is required for optimal power transmission. → Brake Shoes and Drum: Replacing worn-out brake shoes and inspecting the brake drum for wear can improve braking performance. Experience the power of troubleshooting with your Honda ATV by initiating the download process of the comprehensive shop manual. Simply click the green button to access the valuable troubleshooting resource. After completing the payment, your checkout page will display the download link for the official Honda OEM shop manual and parts list. Additionally, we will promptly email you the payment and download information for immediate access. §
