1988 Yamaha G2-A, G2-E & G9 Golf Cart Service, Owner's & Parts Manual Set (P/N LIT-11626-06-55, LIT-11626-06-56)

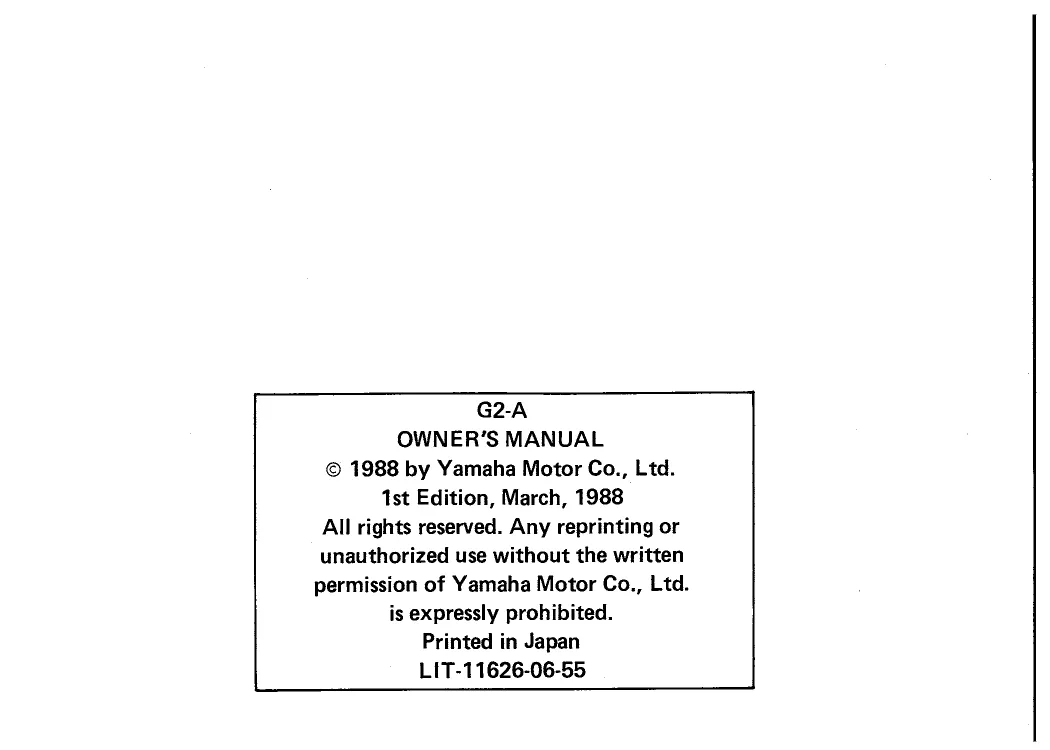

Yamaha service, owner/operator, and illustrated parts literature for G2-A and G2-E golf cars and the G9-AG, G9-AH, G9-AJ, G9-EG, G9-EH1, G9-EH2, and G9-EJ configurations. The main service publication is P/N LIT-19616-G9-93. Owner/operator publications are LIT-11626-06-55 for G2-A, LIT-11626-06-56 for G2-E, and LIT-19626-00-56 for G9-A/G9-E; the two G2 manuals are identified as 1st Edition, March 1988.

The package contains 15 PDF files totaling 916 pages: a 362-page service manual, three owner/operator manuals, eight illustrated parts catalogs, and three identification or service-reference files.

• Engine overhaul: Engine removal and installation, cylinder head and valve-seat service, camshaft inspection, piston and connecting-rod work, crankshaft and balancer inspection.
• Fuel and belt drive: Carburetor repair, fuel-pump overhaul, throttle and choke adjustment, primary and secondary sheaves, V-belt inspection, and governor adjustment.
• Transmission and differential: Removal, internal repair, shift-mechanism service, gear inspection, and the serial-specific G9-E rear-axle update.
• Brakes and chassis: Brake service, steering knuckles, front and rear suspension, wheel bearings, control cables, and identification of different brake assemblies.
• Electrical diagnosis: Starting, charging, ignition, traction motors, speed controllers, solenoid relays, charging receptacles, and signal-system troubleshooting.
• Maintenance and parts identification: Separate gasoline and electric schedules, storage and return-to-service instructions, exploded assembly drawings, and model-specific part-number listings.

Yamaha wrote the service manual for authorized Yamaha dealers and qualified mechanics with basic mechanical knowledge; the owner/operator manuals address operation and minor maintenance, with major repair work referred to a Yamaha dealer.

Model Identification and Parts Selection

G2-A uses J38, JA2, and J55 identifiers; G2-E uses J41, JE2, and J56. The covered G9 gasoline models use JG5, while electric models use JG6 or JH7.

The illustrated parts catalogs cover G2-AD, G9-AG, G9-AH, G9-AJ, G9-EG, G9-EH1, G9-EH2, and G9-EJ. Engine or electric-drive components, transmission and rear axle assemblies, body hardware, controllers, and mounting parts are listed by assembly.

Operation, Maintenance, and Storage

The owner/operator material covers the drive selector, accelerator and brake operation, parking brake, fuel and engine-oil levels on gasoline models, tire pressure, and battery condition on electric versions. Periodic tables tie maintenance to rounds, operating hours, and elapsed time.

G2-A schedules include pre-operation checks and 20, 125, 250, 500, and 1,000-round intervals. G2-E adds daily, 5-round/3-hour, 20-round/10-hour, and task-specific 40-round checks before longer service intervals.

G2-A maintenance covers engine oil, valve clearance, air cleaner, spark plug, throttle and choke adjustment, starter-generator belt, drive belt and sheaves, transmission oil, brakes, steering, tires, battery, and accelerator stop-switch operation.

G2-E maintenance addresses its 36-volt traction system, six 6-volt deep-cycle batteries, traction motor, solenoid, controller, wiring, differential, brakes, steering, and wheels. Storage and return-to-service sections address battery and fuel-system care during inactivity.

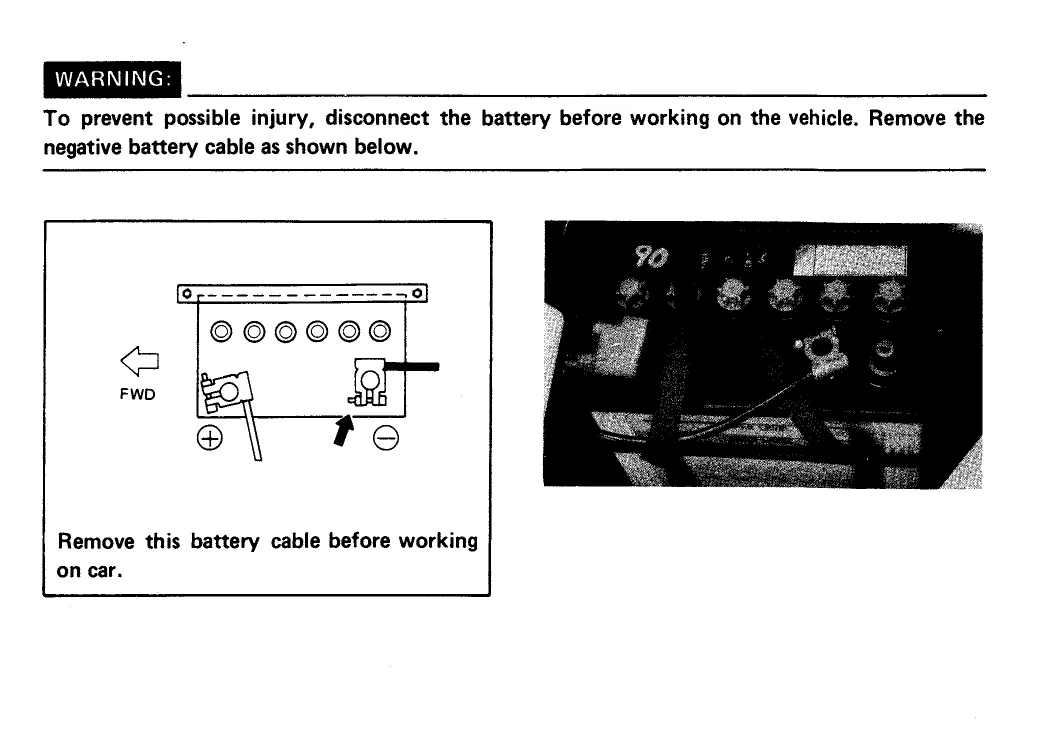

Fuel work, rotating drive components, starter-generator service, and traction batteries are accompanied by Yamaha's isolation, charging, electrolyte, and handling precautions.

G2-A Engine and Belt-Drive Repair

The G2-A uses a 285 cc four-stroke OHV single-cylinder gasoline engine. Its repair chapters cover cylinder head and valve service, valve-seat work, camshaft inspection, piston and connecting-rod work, crankshaft and balancer inspection, and engine assembly.

Carburetor repair and fuel-pump overhaul have dedicated procedures. Specification tables provide fluid capacities, spark-plug settings, starter-generator belt deflection, wear limits, clearances, and tightening torques.

Powertrain coverage includes primary and secondary sheaves, the V-belt, governor, transmission removal and internal repair, differential components, and the shift mechanism.

Transmission Ratios and G9-E Rear-Axle Changes

The G2-A helical-gear differential uses 13.65:1 forward and 15.25:1 reverse secondary reduction, with 800 cc of SAE 90 gear oil. G2-E GE-motor versions use 11.969:1 reduction; Hitachi-motor versions use 13.546:1, both with 800 cc.

The later G9-E transmission specification is 11.965:1 with 300 cc of SAE 90 gear oil. The update applies to JH7-100311 through JH7-100410 and JH7-101111 and later.

Bulletin G92-009 identifies the Dana one-piece-case rear axle/transmission and states that its parts are not interchangeable with the earlier split-case assembly. Matching the serial range and case design helps prevent ordering parts for the wrong rear axle.

Brake Variants, Steering, and Suspension

Chassis procedures cover front and rear wheels, rear axle, brakes, steering, steering knuckles, front suspension, rear suspension, and control cables. G9 sections add cable routing, body and control adjustments, and wheel-alignment specifications.

Bulletin G92-003 distinguishes earlier two-spring brakes from the later three-spring Bendix design. The brake parts are not interchangeable; spring layout and backing-plate identification provide additional checks when selecting replacement components.

Gasoline and Electric Fault Diagnosis

Electrical chapters provide starting/charging and ignition diagnosis for the G2-A and traction-motor, controller, solenoid, charging-receptacle, and signal-system diagnosis for the G2-E.

G9-E material documents an FET chopper motor controller. The JH7 supplement adds PWM control, a throttle sensor, slow-start operation, current limiting, and protective circuits, together with a 36-volt GE traction motor rated at 2.2 kW / 2.97 hp for 30 minutes.

Drawings include the Carburetor Section View, G2-A Circuit Diagram, G2-E Circuit Diagram, G2-A/G2-E Cable Routing, G9-A Circuit Diagram, and JH7 G9-E Circuit Diagram. Wiring diagrams include wire-color code legends; the diagrams are reproduced in black and white.

Special Tools and Component-Specific Repair Cautions

Mechanical service-tool references include the Primary Sheave Puller YG-01876 / 90890-01876, Primary Sheave Holder YS-01880 / 90890-01701, Heavy-Duty Universal Puller YU-33270 / 90890-01362, and Valve Spring Compressor YM-04019 / 90890-01253.

Electrical testing references include the Low Reading Ohmmeter YU-91026 / 90890-03064 and Dynamic Spark Tester YM-34487 / 90890-03144.

Yamaha's transmission repair cautions address mating-surface damage from forcing case halves apart with chisels or screwdrivers. Primary-sheave instructions address oil-seal lip damage, while front-wheel bearing procedures warn about damage from striking the center race or bearing balls.

PDF Contents and Navigation

• Service manual: Yamaha Service Manual.pdf — 362 pages.
• Owner/operator manuals: Yamaha G2-A.pdf — 84 pages; Yamaha G2-E.pdf — 76 pages; Yamaha G9-A_E.pdf — 58 pages.
• Gasoline parts catalogs: YamahaPartsG2-AD.pdf — 50 pages; YamahaPartsG9-AG.pdf — 49 pages; YamahaPartsG9-AH.pdf — 48 pages; YamahaPartsG9-AJ.pdf — 49 pages.
• Electric parts catalogs: YamahaPartsG9-EG.pdf — 35 pages; YamahaPartsG9-EH1.pdf — 34 pages; YamahaPartsG9-EH2.pdf — 30 pages; YamahaPartsG9-EJ.pdf — 37 pages.
• Reference files: GC_Model_SerialNumber.pdf — 2 pages; SerialNumberLocations.pdf — 1 page; PageYamaha.pdf — 1 page of throttle-cable and speed-limiter service information.

The 916-page total includes covers, blank pages, supplements, the four reference-file pages, and three technical-bulletin pages within the G9-EJ catalog. PDF pages are counted once, including sheets containing more than one printed page.

The service manual has searchable OCR text; recognition errors can affect searches. The three owner/operator manuals have no searchable body text. Parts-catalog text is searchable except for the three bulletin pages in YamahaPartsG9-EJ.pdf; both identification references are searchable, while PageYamaha.pdf has partial OCR text.

All eight parts catalogs have assembly bookmarks. Their “Return” links point to an Index.pdf file outside this package; the other seven PDFs have no bookmarks.

Small wiring labels require zooming, and the G9-A/G9-E owner's wiring pages benefit from rotation. The JH7 G9-E supplement jumps from printed page 8-15 to 8-17.
