Yamaha G9 & G2 Golf Car Manual Set | Includes 1990 G9 Owner’s Manual (P/N LIT-19616-G9-93)
1,042 Pages • ZIP Download: 11 Printable PDFs • 90.98 MB
Yamaha Models Covered & Key Technical Specifications
Models: G9A, G9E, G2-A, G2-E
Models & Model Codes:
G9A — JG5; G9-AJ (JG52 in the parts catalog)
G9E — JG6; G9-EC (JH7), G9-EH2 (JH7), G9-EJ (JH7; JH72 in the parts catalog)
G2-A — J38, JA2, J55
G2-E — J41, JE2, J56
Sub-models / Variants: Gasoline (G9A, G2-A), Electric (G9E, G2-E). G9-EC uses a G.E. 5BC58JBS6103 traction motor. G2-E transmission specifications distinguish G.E. and Hitachi traction-motor configurations.
Model Year: 1990
Starting Frame Serial Numbers: G9-A: JG5-000101 and G9-E: JG6-000101 in the service update. G9-EG: JG6-000001 in the primary ID chart. G9-EC: JH7-000101. G2-A: J38-000101, JA2-000101, J55-000101. G2-E: J41-000101, JE2-000101, J56-000101 in the base service section.
Engine Serial Numbers: G2-A starting numbers: J38-000101, JA2-000101, J55-000101. G9-AJ: JG5-200101 and following for both frame and engine.
G9-EJ Parts Catalog Coverage: JH7-100101 and following.
Brake System Serial Breaks: New-style Bendix brakes from JG5-100101 (G9-AH), JG6-100101 (G9-EH1), and JH7-000125 (G9-EH2).
G9-EJ Transmission Variant: Dana transmission and rear axle for JH7-100311 through JH7-100410 and JH7-101111 and later.
-
Engine displacement: 285 cm³ (G9A)
-
Engine type: 4-stroke, gasoline, OHV, single cylinder (G9A)
-
Transmission type: V-belt automatic centrifugal engagement (G9A)
-
Maximum speed: 19 km/h (12 mph) (G9A/G9E)
-
Fuel tank capacity: 24.0 L (6.3 US gal) (G9A)
-
Engine oil capacity: 1.1 L (G9A)
-
Gear box oil capacity: 800 cc (0.85 US qt) for G9A and the G9E configuration documented in the 1990 owner’s manual. The later G9-EJ Dana unit takes 300 cc (0.32 US qt).
-
Wheel nut torque: 80 Nm (58 ft-lb)
-
Tire pressure (G9A): 88–108 kPa (13–16 psi)
-
Tire pressure (G9E): 108–127 kPa (16–18 psi)
-
Spark plug: BR4ES (G9A)
-
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Yamaha Service Manual for G9-AJ/EJ, G9-AG/AH, G9-EG/EH1, G9-EH2, and G2-A/E (P/N LIT-19616-G9-93), excluding the separately listed G9-EC section | 334 |
| Yamaha G9-EC Service Manual section (P/N LIT-19616-00-49) | 30 |

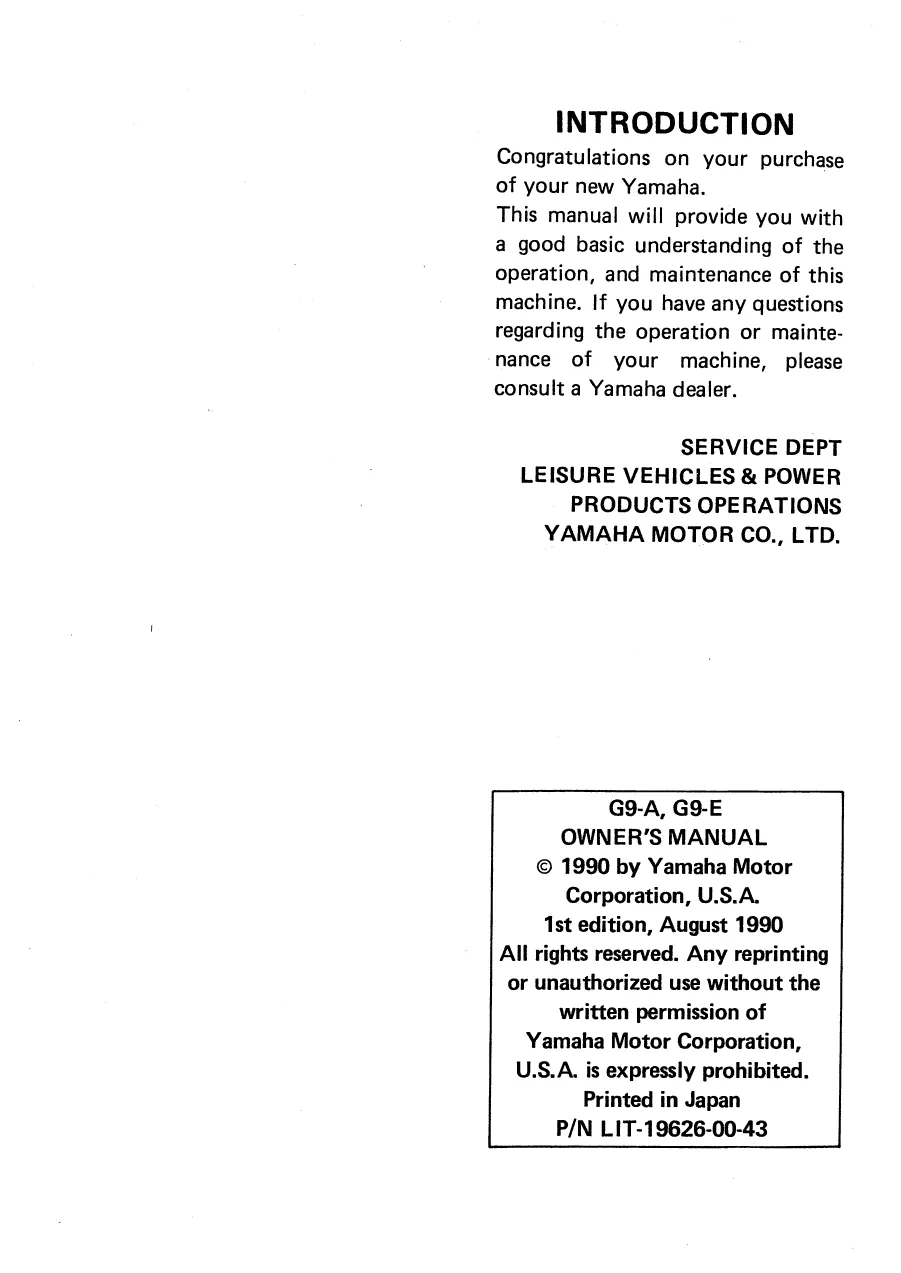

| Yamaha G9-A/G9-E Owner’s/Operator’s Manual, first edition, August 1990 (P/N LIT-19626-00-43), supplied in two identical files | 58 each |
| Yamaha G9-A/G9-E Owner’s/Operator’s Manual, 1992 (P/N LIT-19626-00-56) | 58 |
| Yamaha G2-A Owner’s/Operator’s Manual (P/N LIT-11626-06-55) | 84 |
| Yamaha G2-E Owner’s/Operator’s Manual (P/N LIT-11626-06-56) | 76 |
| Yamaha primary ID and serial-number reference | 3 |
| Yamaha gasoline G9 parts catalog, first section | 50 |
| Yamaha gasoline G9 parts catalog, second section | 49 |
| Yamaha gasoline G9 parts catalog, third section | 48 |
| Yamaha G9-AJ parts catalog, 1993 | 49 |
| Yamaha electric G9 parts catalog, first section | 35 |
| Yamaha electric G9 parts catalog, second section | 34 |
| Yamaha electric G9 parts catalog, third section | 30 |
| Yamaha G9-EJ parts catalog, 1993 | 34 |
| Yamaha G9A/E brake-parts change bulletin | 1 |
| Yamaha G9-EJ transmission and rear-axle change bulletin | 2 |
| Standalone G9-A wiring diagram | 1 |
| Standalone G9-E wiring diagram | 1 |
| Standalone G2-E circuit diagram | 1 |
| Supplemental deep-cycle battery maintenance guide | 4 |
| Supplemental battery watering and state-of-charge reference | 2 |
Use the G2-A/E base procedures with the applicable G9 service updates. The owner’s manuals cover operation and scheduled maintenance, while the illustrated catalogs and bulletins help match replacement parts to the model and production break.
Check the G9 update and the relevant parts listing before applying a G2 procedure or ordering a part for a G9. The G9-EC section also cross-references separate service literature for selected electrical checks.
Scanned Manuals and Standalone Wiring Sheets
Text search and diagram detail: The repair compilation and owner’s manuals are primarily image scans with only a few searchable text elements. The two-page battery reference has searchable text, and the other battery sheets are image scans. The PDFs have no bookmarks. Zoom in for small wire codes and connector labels in the standalone diagrams. Some diagrams in the compilation are sideways and are easier to read after rotation and zooming.
The ZIP contains 1,042 pages across 11 printable PDFs, including a 917-page compilation. The two identical 58-page owner’s manual files bring the total to 1,042 pages as delivered, or 984 pages when the duplicate is counted once. The six supplemental battery pages, three standalone wiring sheets, and included cover and reference pages are part of the total. The archive also contains a separate PDF-reader installer.
Engine Overhaul, Electric Drive Diagnosis, and Parts Identification
This selection of workshop and owner topics also includes cable routing and G9-specific removal information for the body, seat, and bag support.
- Gasoline engine and fuel system: Engine removal and reassembly, cylinder-head and crankcase disassembly, piston and crankshaft inspection, camshaft and balancer checks, carburetor service, and fuel-pump overhaul.
- Clutch and transmission: Primary and secondary sheave service, V-belt inspection, gearbox removal and installation, and differential and reduction-gear inspection.
- Electric drive diagnosis: Traction-motor removal and inspection, solenoid and charging-receptacle checks, and G9-EC PWM/FET controller circuits with throttle-sensor, slow-start, current-limiter, thermal-protection, and safeguard coverage.
- Chassis and brakes: Wheel and axle service, brake shoes and pedals, steering disassembly, front and rear suspension inspection, cable maintenance, and wheel alignment.
- Wiring and test references: Model-specific circuit diagrams, controller waveforms, charging- and signal-system troubleshooting charts, exploded transmission drawings, and carburetor section views.
- Parts and production changes: Illustrated gasoline and electric G9 parts listings, Bendix brake identification, and a serial-specific Dana transmission and rear-axle bulletin.
The service procedures assume a qualified mechanic’s working knowledge of mechanical repair. The owner’s guides cover the controls, checks, and routine maintenance that operators need.
Drivetrain Service and Parts Compatibility
The service manual pairs disassembly and inspection procedures with torque tables, wear limits, capacities, and electrical test specifications. Listed tools include the primary sheave puller YG-01876 (90890-01876), pocket tester YS-03112 (90890-03112), and hydrometer YU-03036 (90890-03036).
The brake bulletin separates the 1991 assemblies from the revised Bendix design and identifies the differences in springs and backing plates. Its parts lists are specific to each design. For later G9-EJ golf cars, use the Dana bulletin’s frame-serial ranges before selecting transmission or rear-axle parts. The bulletin also flags the risk of damaging the housing’s sealing surface or deforming the cover during removal.
Owner Checks and Scheduled Maintenance
The owner’s guides cover pre-operation checks, choke starting on gasoline models, forward and reverse operation, braking, hill starts, and storage. Maintenance topics include engine oil and air-filter service, belt and gearbox checks, battery charging and lead routing, and electric speed-controller adjustment. The separate battery sheets supplement the Yamaha guides with watering, charging, and state-of-charge references.
Examples from the Service Specifications
The G2-A engine specifications list an installed top piston-ring end gap of 0.2–0.4 mm (0.008–0.016 in), with a 1.0 mm (0.04 in) service limit.
For the G9-EC G.E. traction motor, the starting and recharging section specifies a field-coil resistance of 0.012–0.014 Ω at 20°C (68°F).
