1970-1975 Porsche 914, 914/6, 914 Sportomatic, 914-1.7, 914-1.8 and 914-2.0 Workshop Manual
This 1970-1975 Porsche 914 workshop manual details service procedures for all variants. It includes technical specifications and repair guidance for multiple engine and transmission types. Part numbers are included where available.
Manual Preview

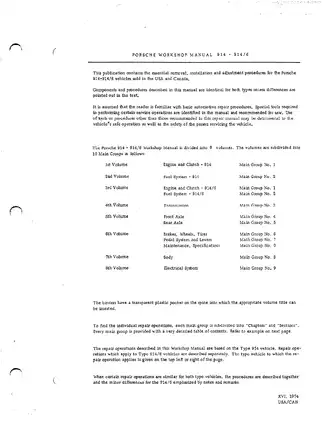

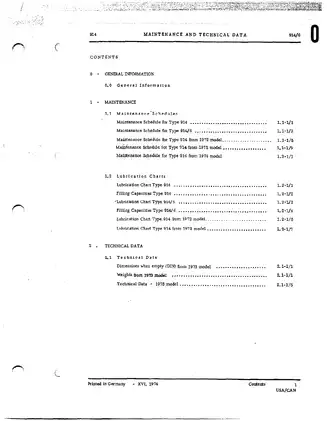

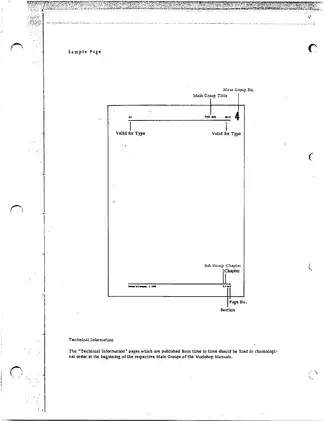

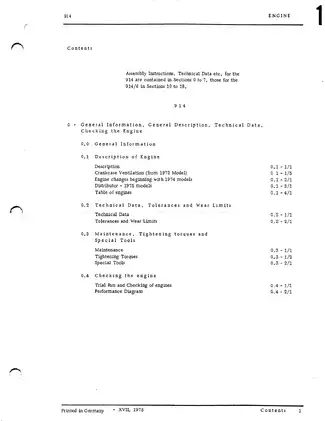

Sample pages from the 1970-1975 Porsche 914, 914/6, 914 Sportomatic, 914-1.7, 914-1.8 and 914-2.0 Workshop Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Porsche 914, 914/6, 914 Sportomatic, 914-1.7, 914-1.8, 914-2.0 (Original Porsche Documentation) -- 1970–1975 Technical reference for all Porsche 914 models including variants.
- Design Automotive Digest | Container Unit
- Calibrated Load Capacity: 970 kg establishes the maximum allowable weight under normal driving conditions.
- Documented Environmental Range: For optimal operation, 0-35°C defines the ambient operating temperature Framework.
- Prescribed RPM Specs: The engine operates at 4900 RPM for maximum horsepower output Threshold.
- Engineered Installation Footprint: The vehicle requires 4050 mm for overall vehicle length.
- Calibrated Threaded Fastener Data: M10 fasteners require 3.0 mkg of torque for proper assembly Standards.
- Documented Voltage Specs: The ignition system operates on a 12-volt electrical system Protocol.
Professional Workshop Service Manual & Technical Specifications
Porsche 914, 914/6, 914 Sportomatic, 914-1.7, 914-1.8 and 914-2.0 Vehicles (1970–1975) Comprehensive Workshop Manual
Component-Focus: Porsche 914 Models // Year-Coverage: 1970-1975 // Operational-Scope: Engine, Transmission, Chassis, Electrical Systems
Porsche 914 Workshop Manual Overview
| Assessment-Parameter | System-Path | Calibration-Spec |
|---|---|---|
| Engine Specifications | Power Output | 70-95 HP at 4900-5000 rpm |
| Transmission Types | Manual, Sportomatic | 5-Speed, Automatic |
| Ignition System | Timing Advance | Centrifugal and Vacuum Controlled |
| Cooling System | Airflow | Blower Driven, Direct Airflow to Cylinders |
| Fuel System | Injection Type | MPC, AFC |
| Lubrication | Oil Capacities | Engine: 3.5-3.7 qts, Transmission: 2.5-2.6 qts |
The documentation provides guidance on engine and transmission systems, including detailed procedures for removal, installation, and adjustment. It covers various components such as the ignition system, cooling, lubrication, fuel, exhaust, and electrical systems. The manual also includes comprehensive technical data, tolerances, and wear limits for all major automotive parts.
This manual details the disassembly and assembly of the engine, including the crankshaft, connecting rods, cylinders, and pistons. It also covers the clutch system, flywheel, and transmission components. Furthermore, it provides instructions for servicing the ignition system, including the distributor and spark plugs, as well as the cooling and oil circuits. Specific procedures for brakes, wheels, tires, steering, and front/rear axles are also documented.
Technical Specifications and Diagrams
The Porsche 914 Workshop Manual contains detailed diagrams and exploded views of various components, aiding in identification and assembly. It lists all necessary special tools and their respective part numbers for efficient repair.
Torque Specifications and Maintenance Schedules
The manual includes essential torque specifications for critical fasteners, ensuring proper assembly and safety. Maintenance schedules are also provided, outlining recommended service intervals for different components to ensure optimal performance and longevity of the vehicle.
